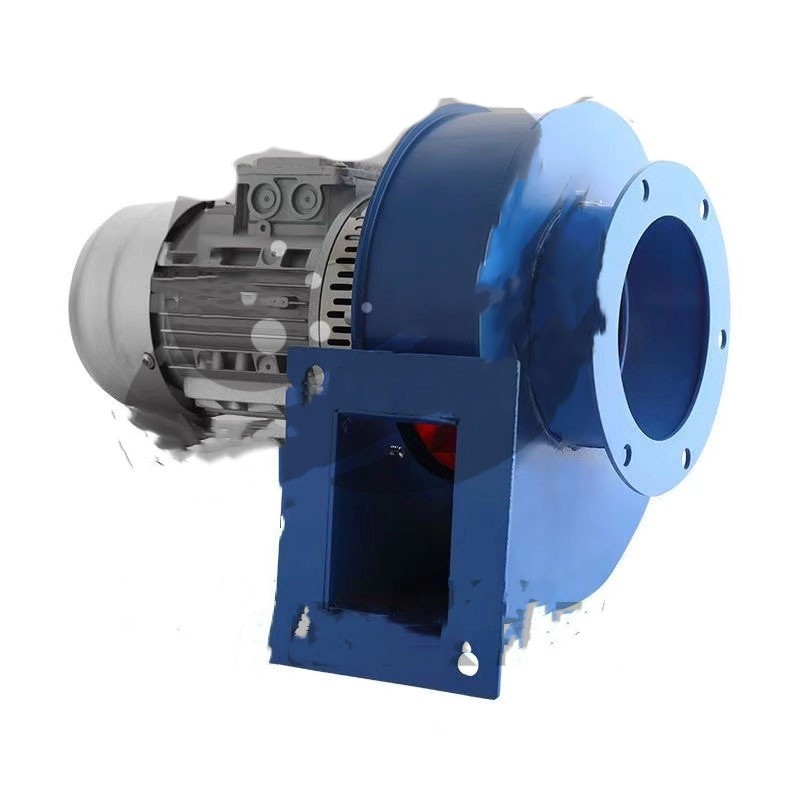

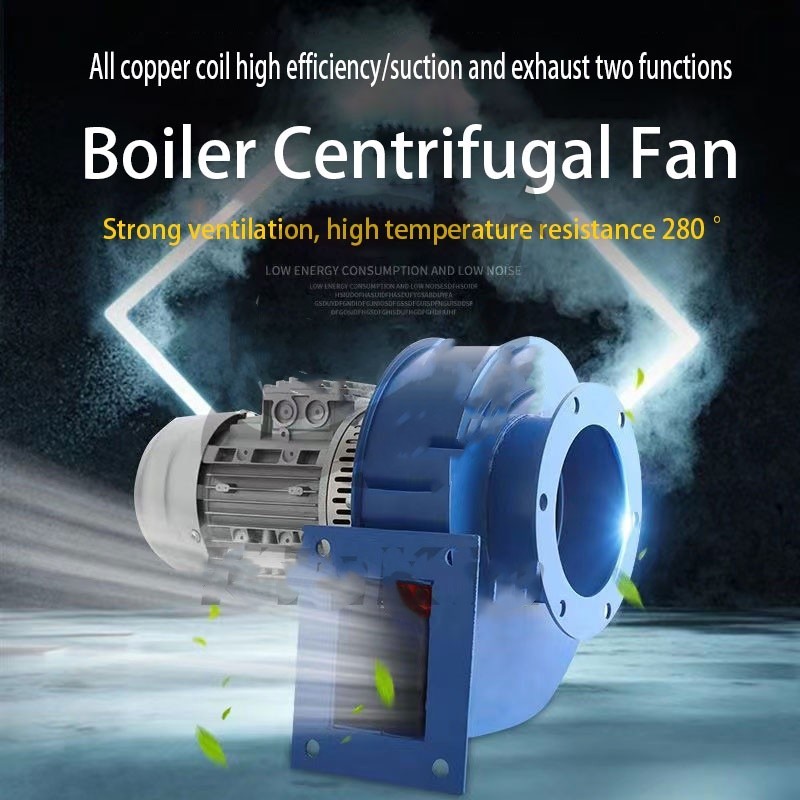

YN5-47 boiler induced draft fan high temperature centrifugal fan exhaust smoke machine industry, war

Product details of YN5-47 boiler induced draft fan high temperature centrifugal fan exhaust smoke machine industry, warehouse, kitchen dust stainless steel heater exhaust fan power 370W voltage 380V/220V bottom noise exhaust and suction 2 in 1 function
Model; YN5-47

Power; 370W

Voltage; 220/380V

Frequency; 50/Hz

Speed2800r/min

Traffic1100m/h

All in650/pa

1;High temperature resistance, high efficiency, large air volume, small vibration, bottom noise, wind shell laser cutting blanking, modeling beauty

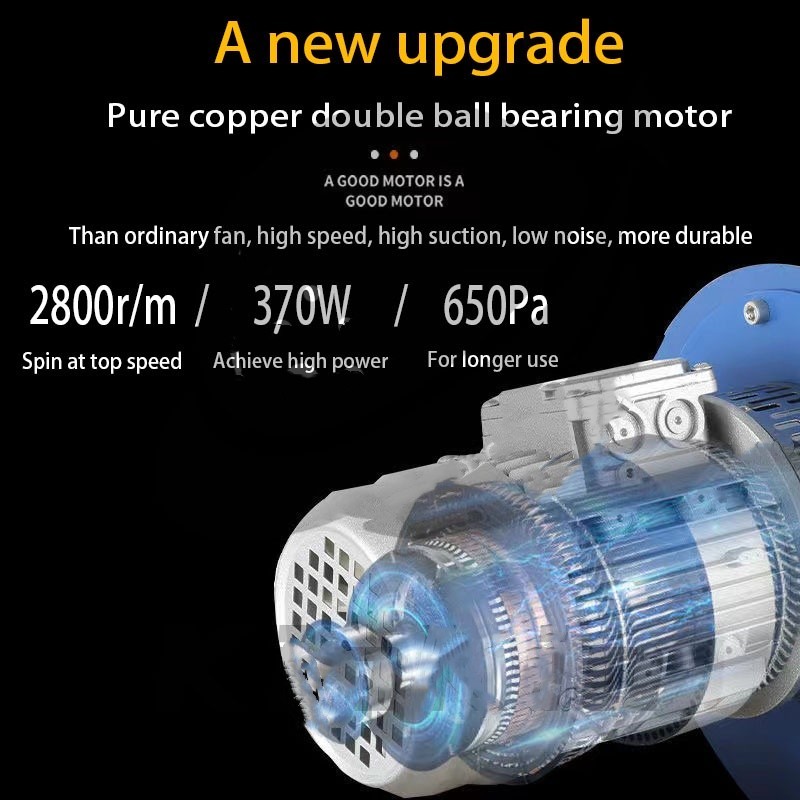

2;The motor is made of Y 2 aluminum alloy, which can greatly reduce the bottom weight and make it lightweight and easy to install

3;High temperature resistant materials (high temperature bearing, high temperature grease, high temperature insulation material, etc.) are used as the main components of the motor

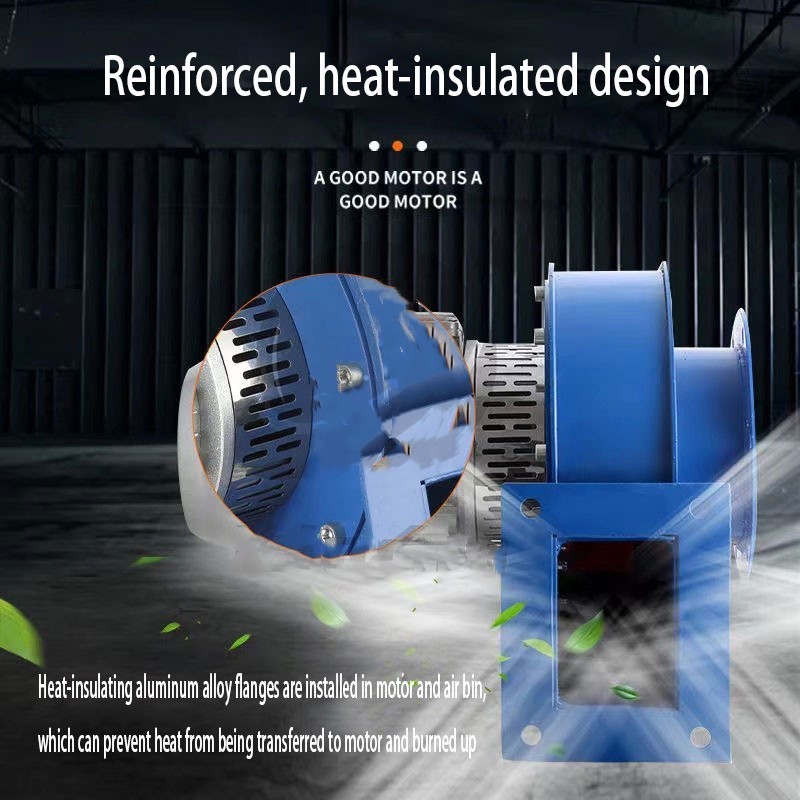

4;The heat-insulating connecting seat (built-in cooling fan blade) is connected with the air shell to cool the motor and ensure the normal operation of the motor under high temperature.

5;Widely used in heating furnaces, hot air stoves, data boilers, steam boilers, drying, chemical food, food machinery, and other industries like light.

6;Maximum allowable gas temperature; 180 ° C-200 ° C
