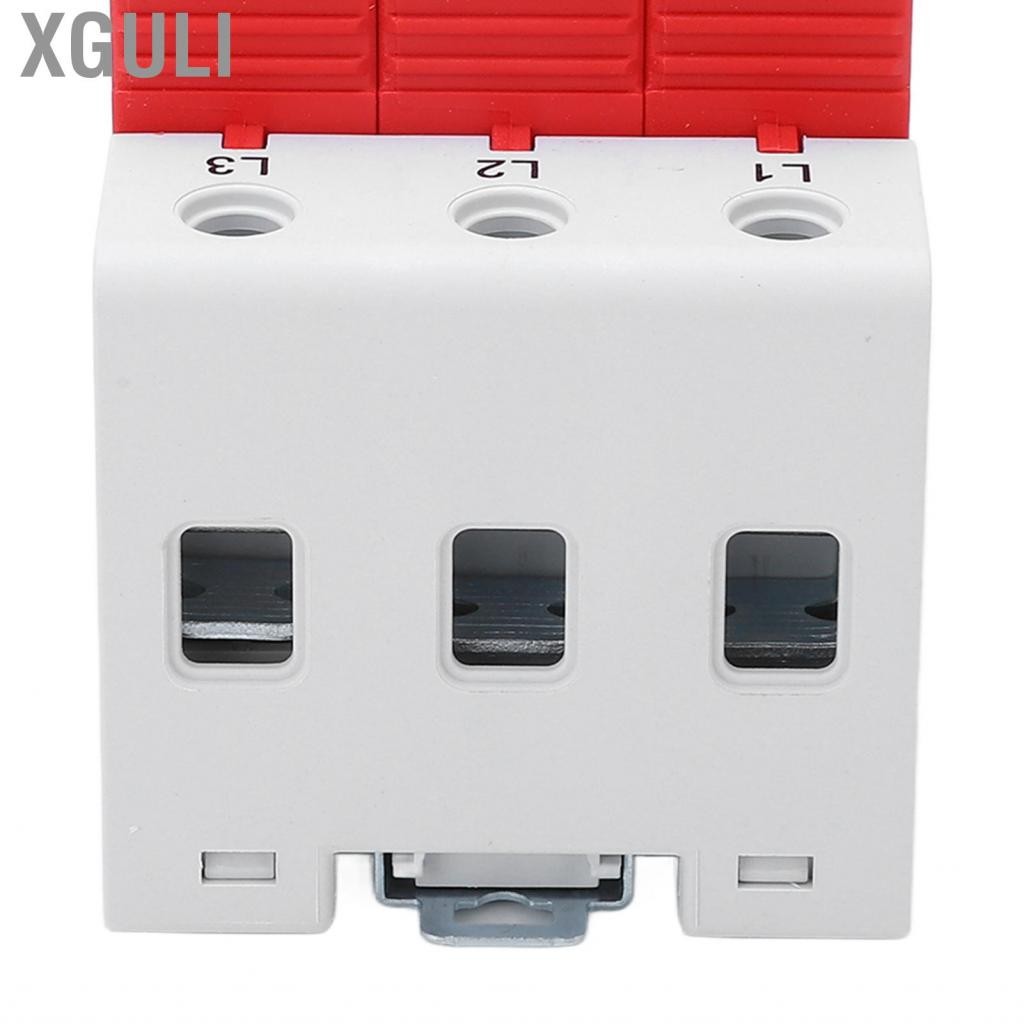

Xguli Voltage Surge Arrester 385V AC Protective Device Stable Good Conductivity for Power Equipments

* * * Welcome to #Xguli * * *

Surprises for you
Follow ShopFree gift for you
High comment: Priority Shipping+5% discount for next order
Shipping within 1-24 hours!
Ready stock and fast shipping!

MY 3C Shop: #windyons

1. POWER PROTECTION: Efficiently protect the AC power system from thunder or overvoltage, and prevent damage to electrical appliances during thunderstorms.
2. PRODUCT PARAMETER: The surge protective device is a 3P design with IP20 protection level and the maximum continuous working voltage is 385V AC.
3. SAFE OPERATION: The surge protector adopts a fireproof shell, which is safe and flame retardant, uses accurate chips, has strong electrical conductivity.
4. EASY INSTALLATION: The protective device adopts modular design, which is easy to use and maintain, the 36MM rail installation ensures a stable structure.
5. WORKING PRINCIPLE: When surge overvoltage occurs in the power supply system, the protector opens quickly and introduces the surge overvoltage to the ground.

Specification:
Item Type: Surge Protective Device
Model: LT1 60
Material: PC flame retardant
Maximum Continuous Working Voltage Uc: 385V AC
Nominal Discharge Current In: 30kA (8/20s)
Maximum Discharge Current Imax: 60kA (8/20s)
Voltage Protection Level Up: 2.2KV
Number of Poles: 3P
Installation: 36MM Rail
Protection Class: IP20
Working Temperature: -40-80
Working Humidity: 90% (average 25)
Size: Approx. 91 x 54 x 68mm / 3.6 x 2.1 x 2.7in

Package List:
1 x Surge Protective Device
