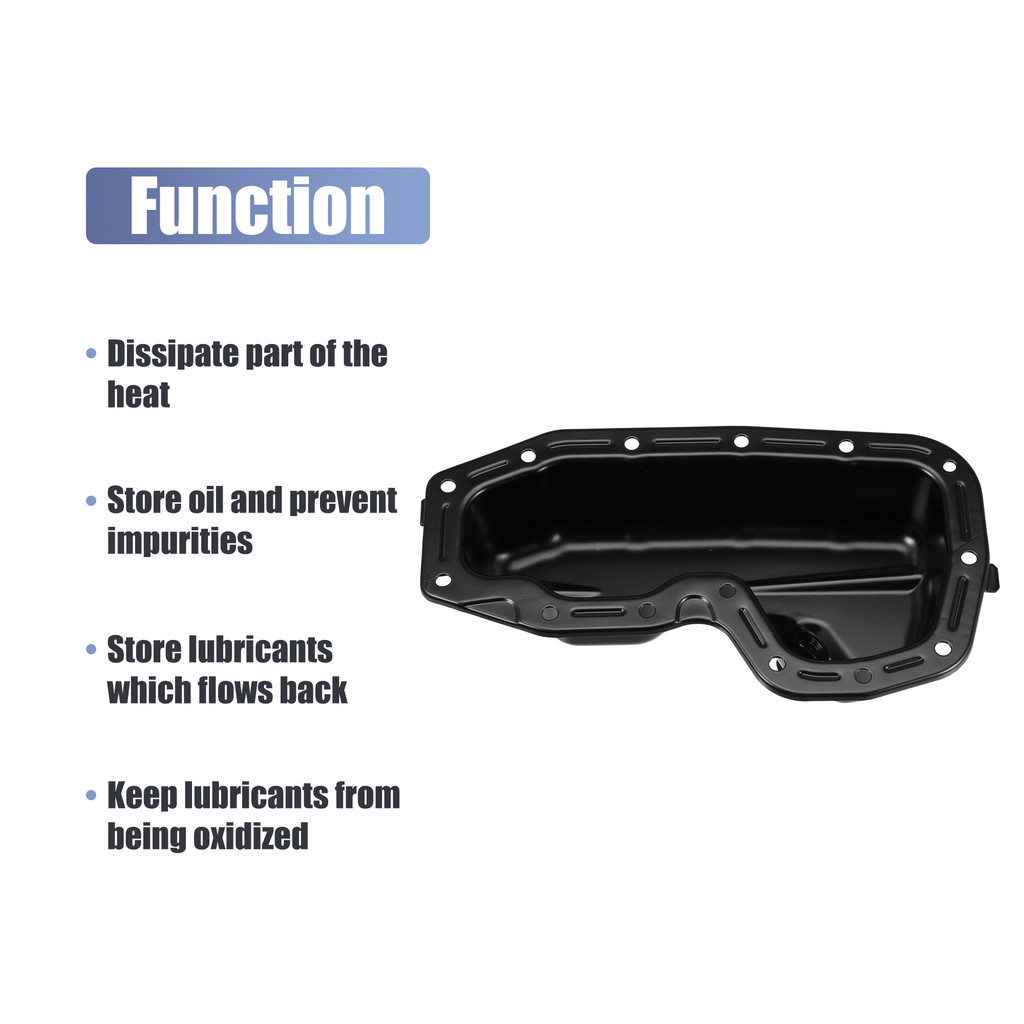

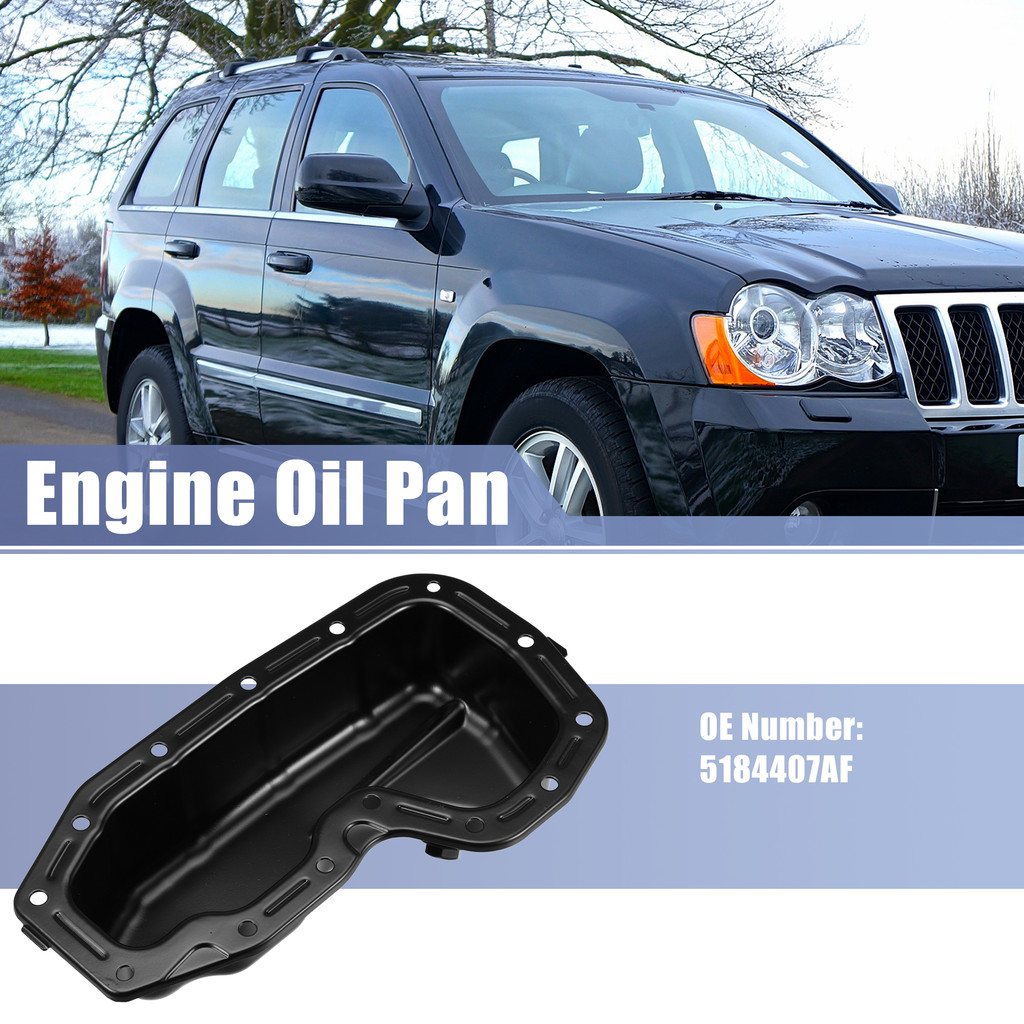

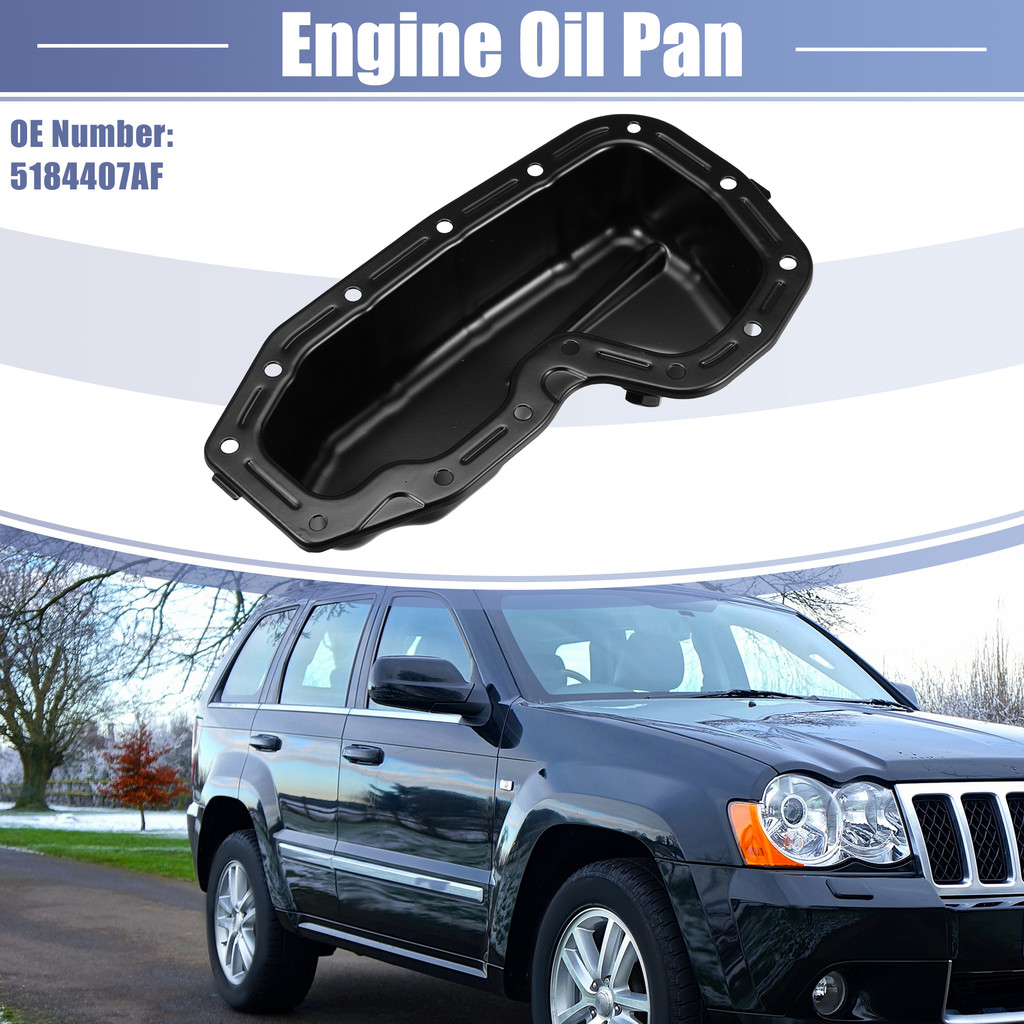

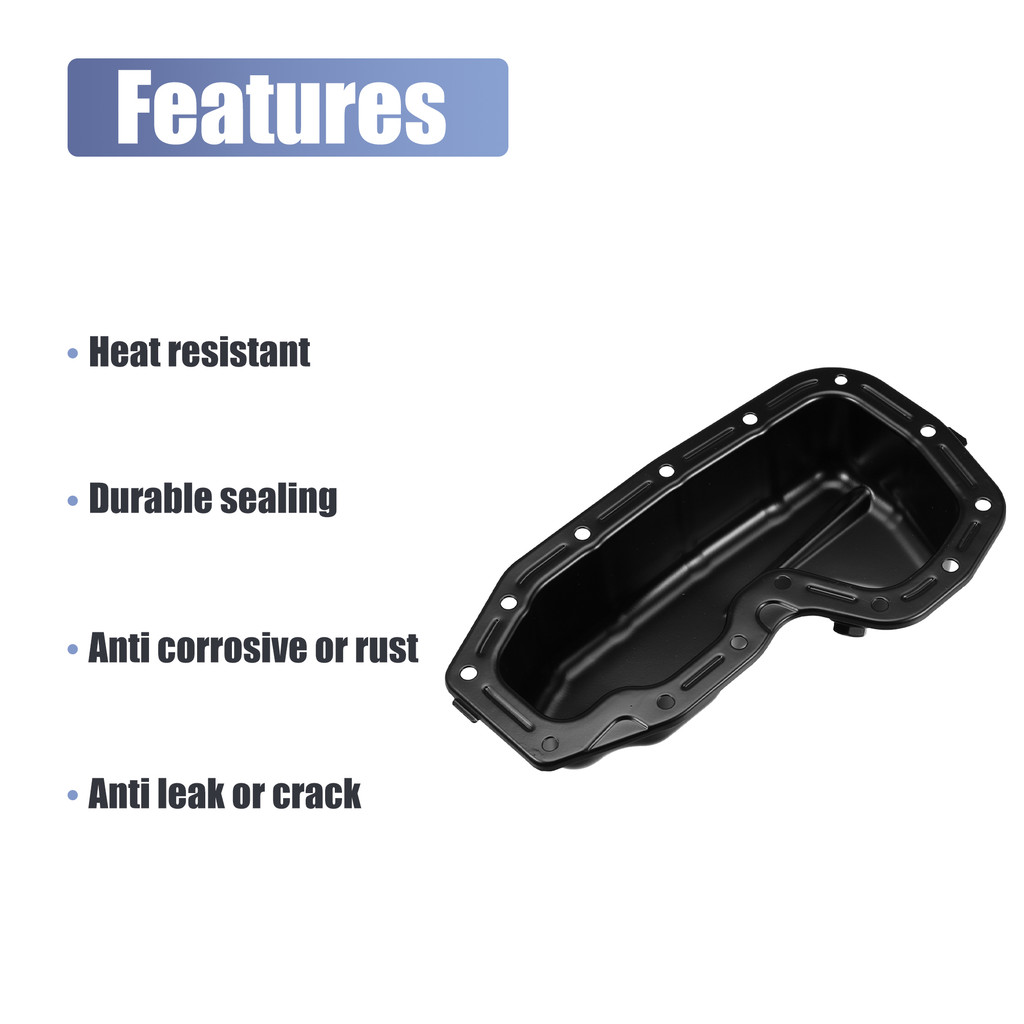

X Autohaux Engine Oil Pan No.5184407AF for Dodge Durango 2011-2023 for Jeep Grand Cherokee 2011 2

for Dodge Durango 2011-2023
for Jeep Grand Cherokee 2011-2022
for Ram 1500 2013-2018
for Ram 1500 Classic 2019-2022
5184407AF
Material: Metal
Color: Black
Size: 30.5×16.7×6.5cm / 12.01″x6.57″x2.56″(L*W*H)
Hole Size: 7.8mm / 0.31″
Bolt Hole Quantity: 14
Gasket or Seal Included: No
Include: 1x Engine Oil Pan
Strictly manufacture and quality control to ensure oil pans meet the performance of the original one.
Using inspection tools to ensure the accuracy of each hole position and flatness of the pan.

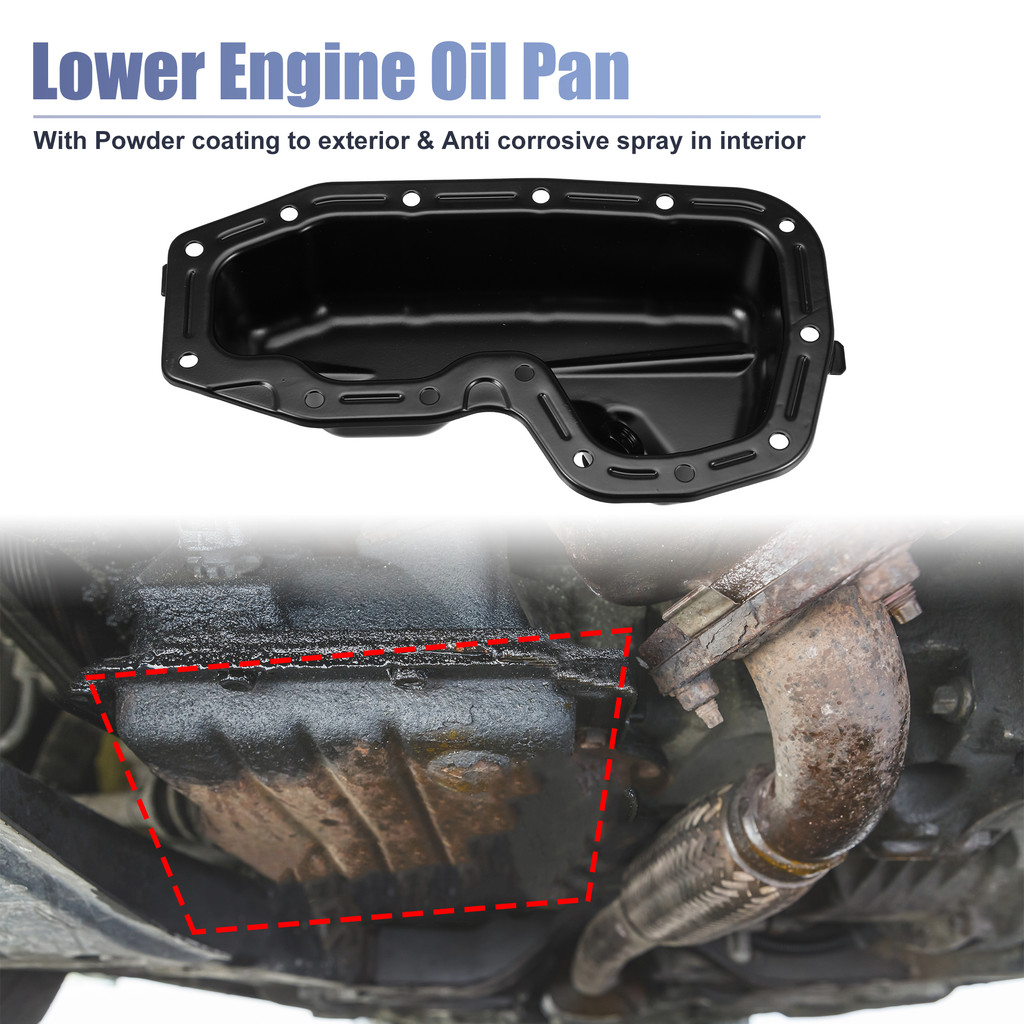

Use durable powder coating on the exterior and anti-corrosive spray on the interior, to dissipate the static charge and prevent corrosion or rust.
1. Remove the mounting bolts and drain the oil after the car was supported by jacks.
2. Use a socket to loosen and exit the old pan, also remove any metal debris with clean rag.
3. Run a bead of the sealant used to hold the fiber gasket to the new oil pan and install the gasket.
4. Make sure the holes for the bolts in the gasket and pan match each other and then tighten the screws or bolts to keep seal.
5. Replace old oil filter, add proper amount of oil. Make sure to watch for leaks.
6. Above steps is for reference, you can search for video like”How To Replace Oil Pan Gasket + year model make” if in doubt.
