V2.1 OBD 2 OBD-II Car Auto Bluetooth Diagnostic Interface Scanner

Description:

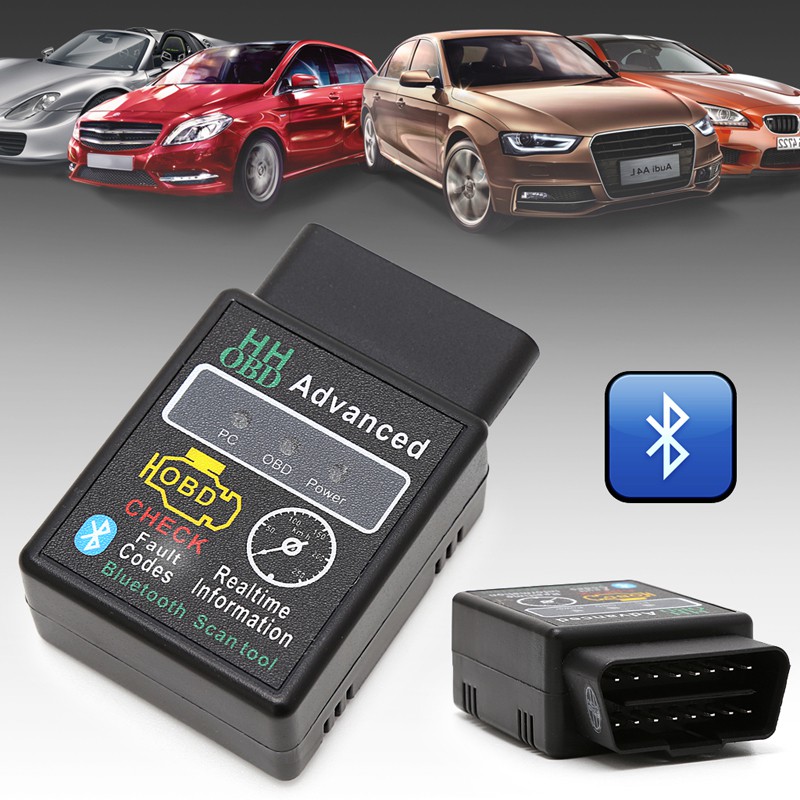

The smaller size mini car Bluetooth diagnostic scanner works on Android Torque/PC, which can help you diagnose the trouble of your car

Features:
This mini car bluetooth diagnostic scanner works on Android Torque/PC with the latest software version V2.1 and hardware Version V1.5.
Bluetooth Password: 1234
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL (“Check Engine” light)

Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Vehicle Speed
Timing Advance
Fuel System Status
Fuel Pressure
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims

Support OBD-II protocols as follows:
1.ISO9141-2(5 baud init,10.4Kbaud)
2.ISO14230-4 KWP(5 baud init,10.4Kbaud)
3.ISO14230-4 KWP(fast init,10.4Kbaud)
4.ISO15765-4CAN(11bit ID,500 Kbaud)
5.ISO15765-4CAN(29bit ID,500 Kbaud)
6.ISO15765-4CAN(11bit ID,250 Kbaud)
7.ISO15765-4CAN(29bit ID,250 Kbaud)

Compatibility:
Works on all OBD2 petrol cars ( from 1996 in USA).
Compatible with Android Torque and Windows Smartphone, Windows PC.

Color: Black

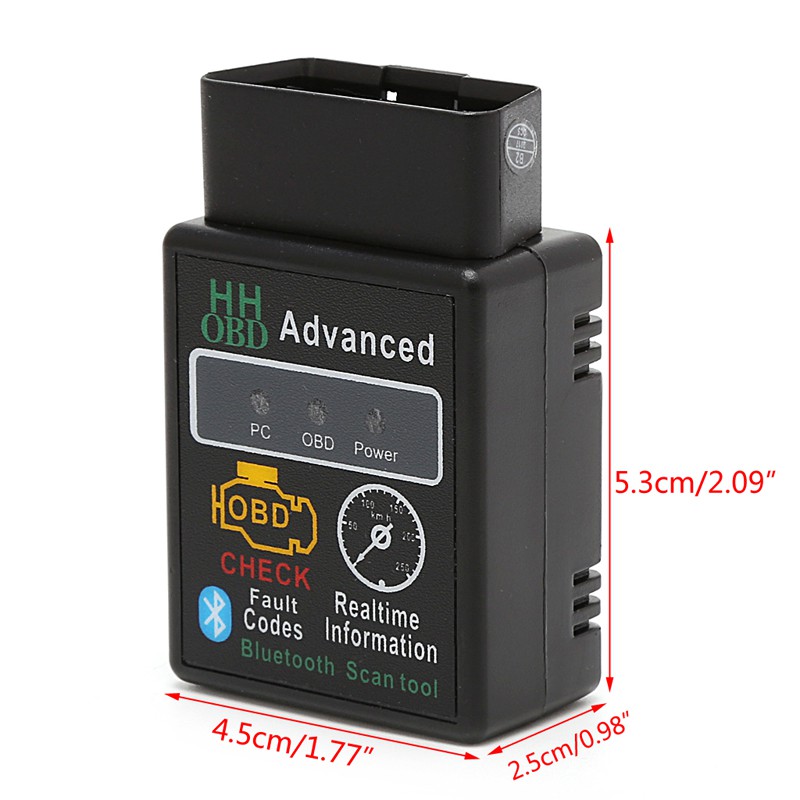

Size: 5.3×4.5×2.5cm
Quantity: 1 Pc
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

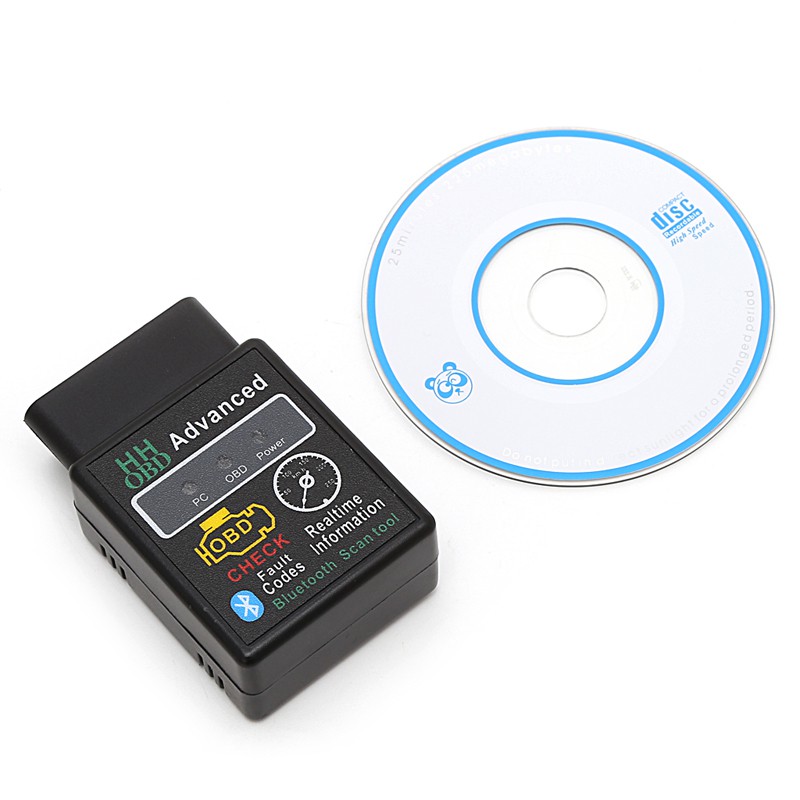

Package Contents:
1 x Bluetooth Diagnostic Scanner
1 x CD
