Trucks OBDII Diagnostic Tool for M6 Super MB PRO M6 WiFi-Simple-Connect MB Star Diagnostic C4 C c

F110 Tablet+DoIP M6 Super MB Pro M6 Star Diagnosis Tool Support Car Truck Full Function Same MB C4 Plus C5 star Plus

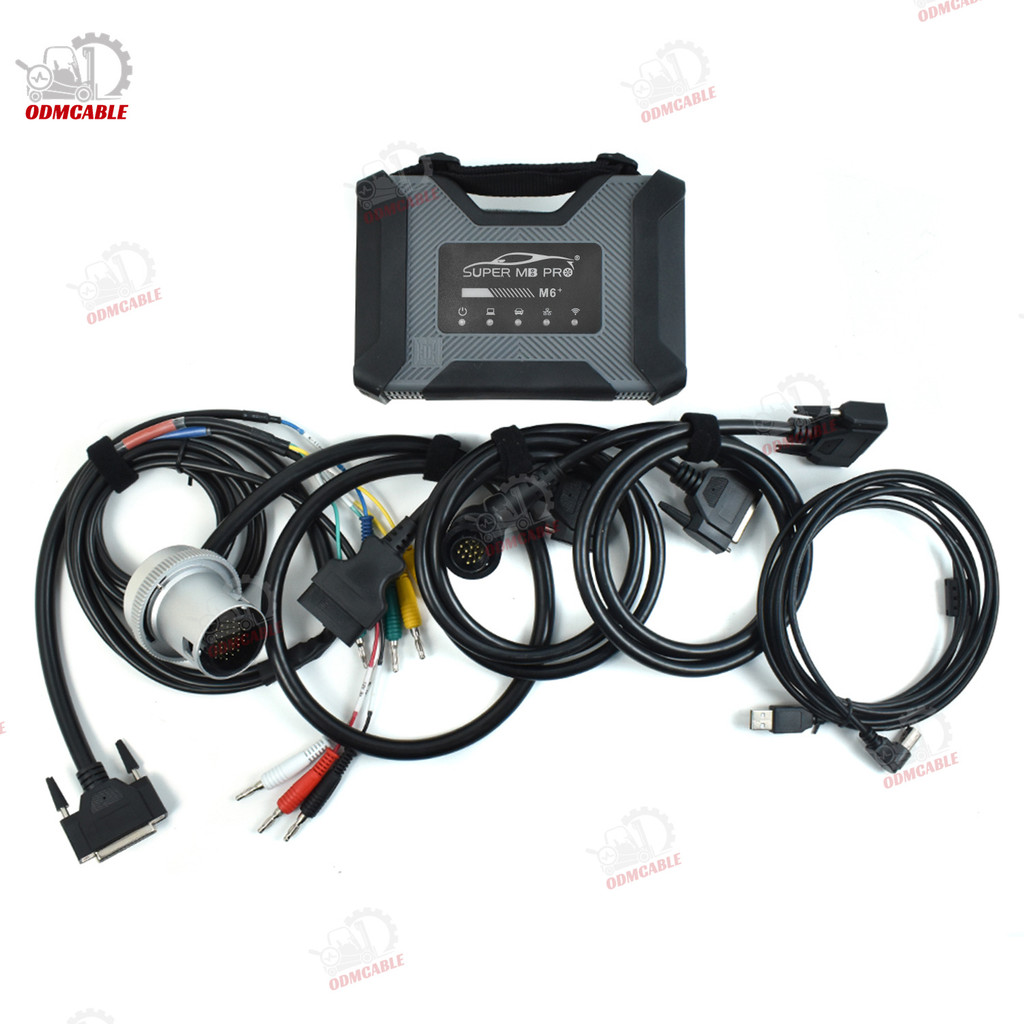

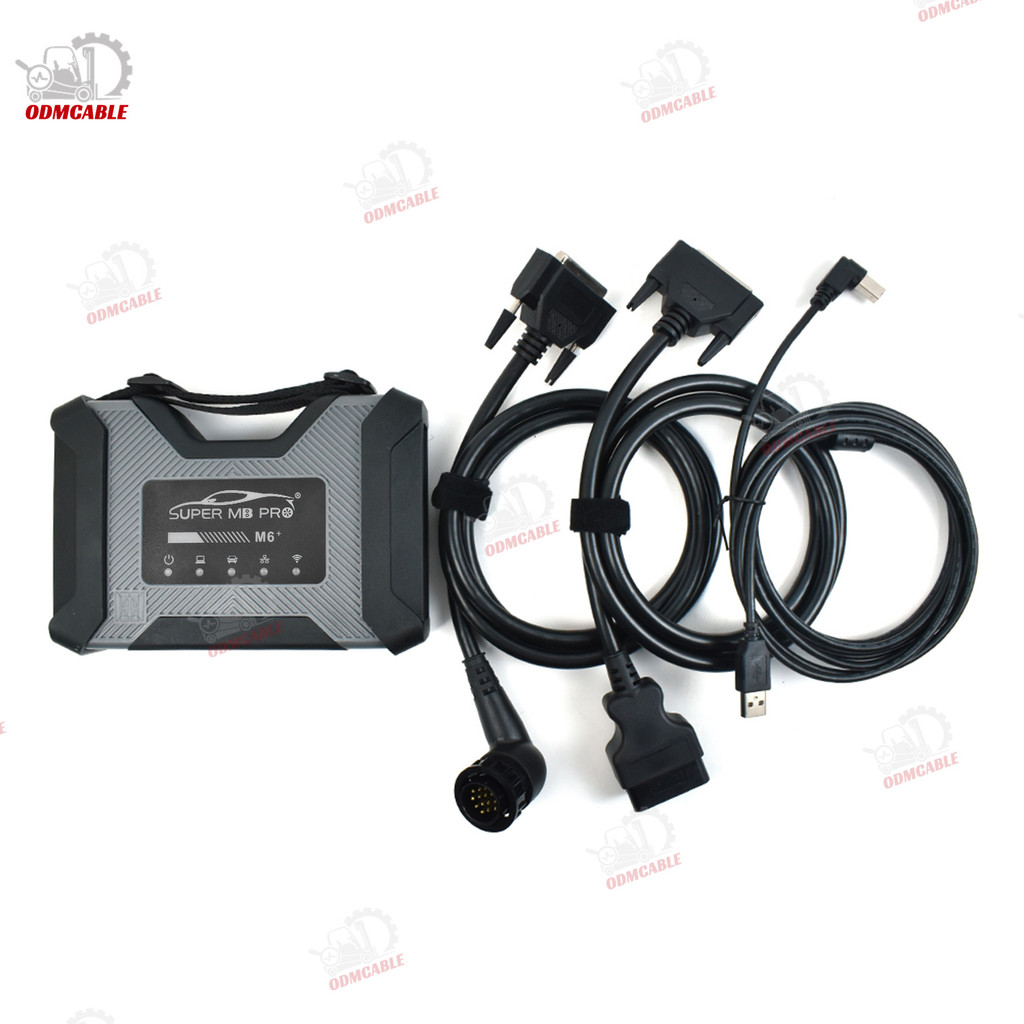

package list
1pc x SUPER MB PRO M6 + Main Unit
1pc x OBD2 16pin Cable
1pc xUSB cable
1pc x 14PIN Cable
package list
1pc x SUPER MB PRO M6 + Main Unit
1pc x OBD2 16pin Cable
1pc xUSB cable
1pc x 14PIN Cable
1pc x ssd software for benz

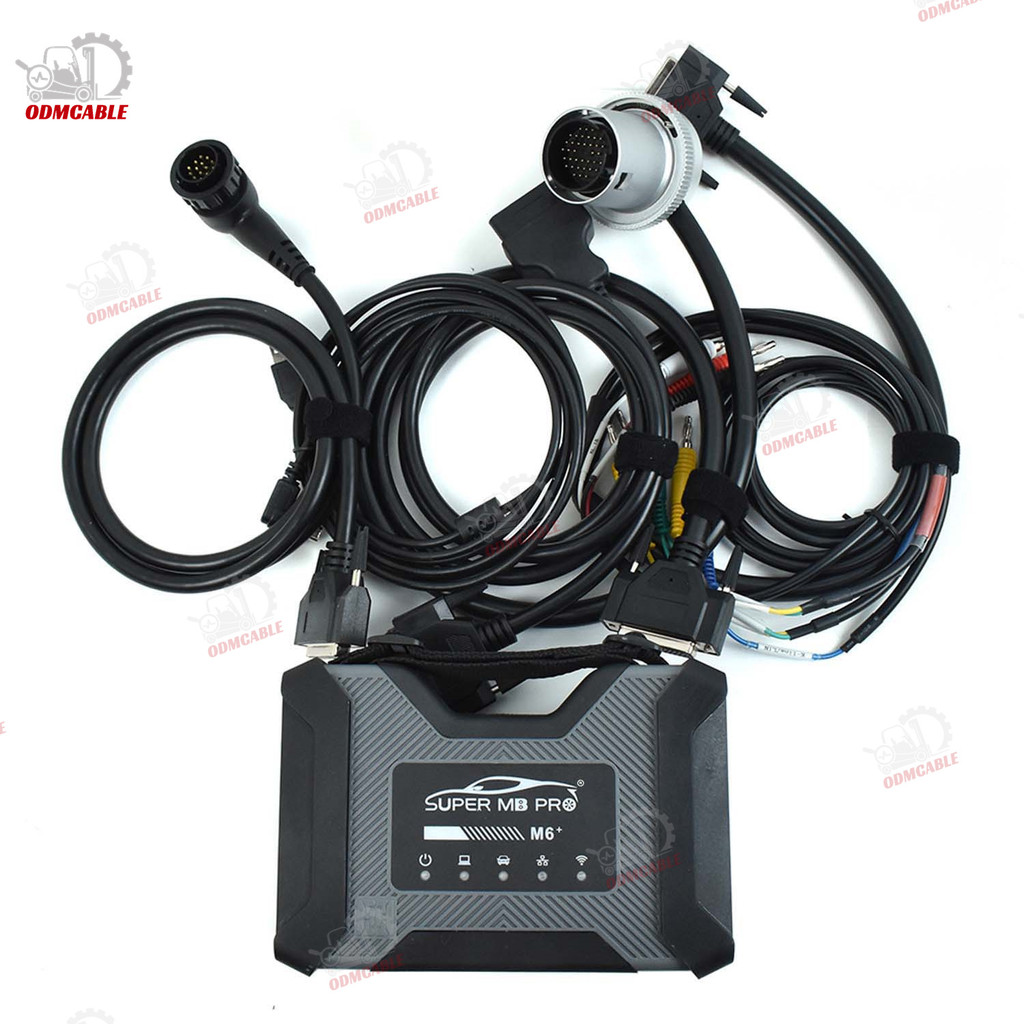

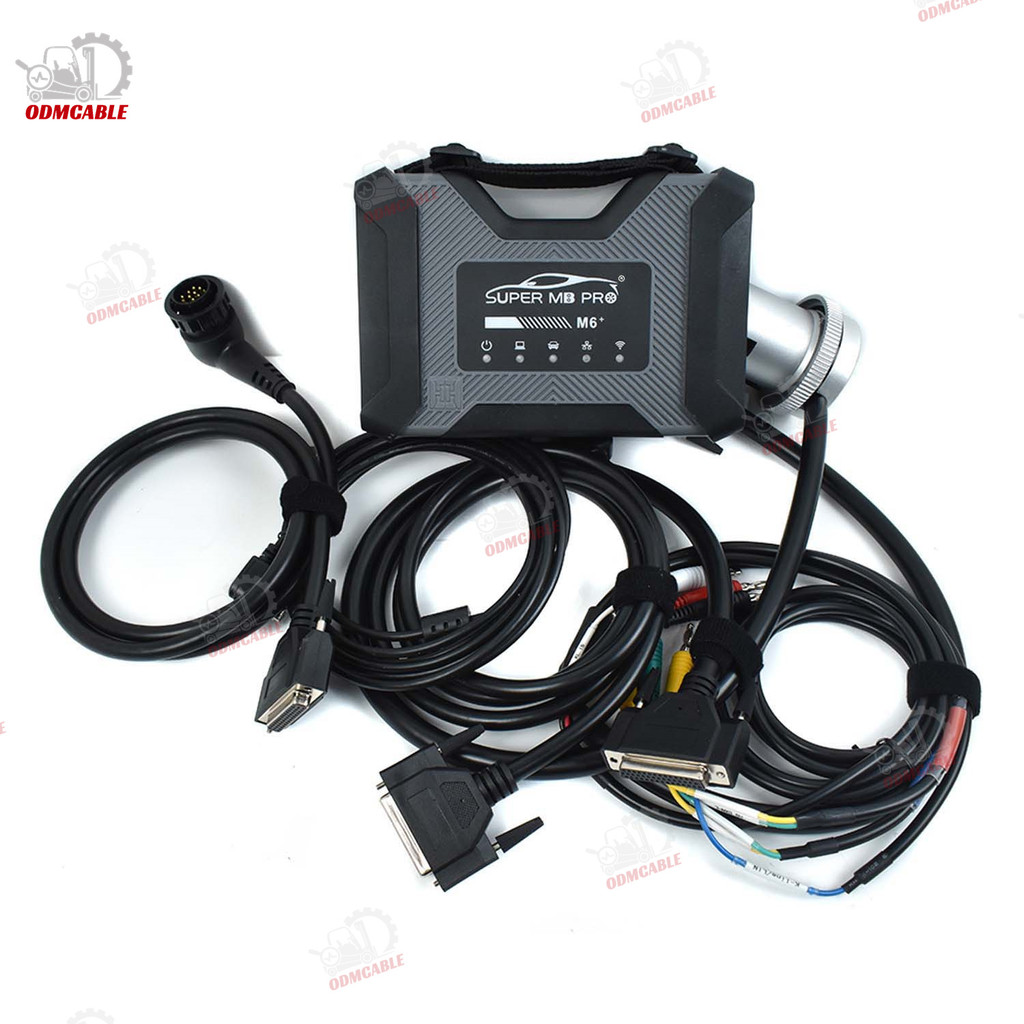

package list
1pc x SUPER MB PRO M6 + Main Unit
1pc x OBD2 16pin Cable
1pc xUSB cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 4PIN Cable

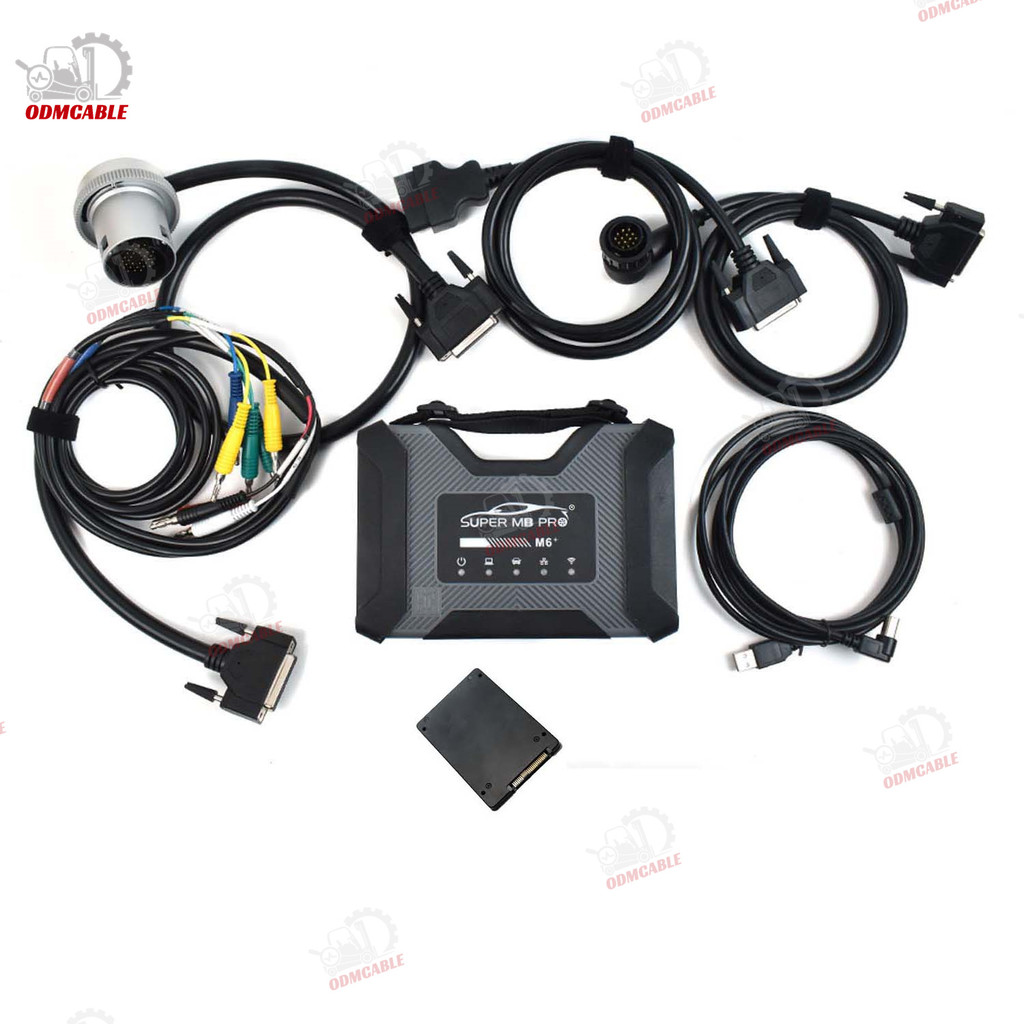

package list
1pc x SUPER MB PRO M6 + Main Unit
1pc x OBD2 16pin Cable
1pc xUSB cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 4PIN Cable
1pc x ssd software for benz
M6+ PLUS Features:
1.100% compatible with software.
2.The front label of the M6+ uses a design with trademark rights and art copyrights to improve product recognition.
3.The communication interface between the M6+ and the computer is a USB3.0 interface, which improves the compatibility of the product with computers and tablets. (Compatible with both old and new computers and tablets, no need to choose old-fashioned computers and tablets with network ports.)
4.M6+ supports remote C-side operation. The client does not need to install special diagnostic testing software. Just connect the M6+ to a local computer that can access the Internet, and we can remotely provide customers with paid diagnosis and detection services of vehicle failure. Customers can also set up a local remote diagnostic test in the local area network. The above ways greatly improve the product flexibility.
Super MB Pro M6+ Connection Instructions
(1)Connect the M6+ hardware box to the car diagnostic interface via the test line. The red indicator light
on the host is always on, and the system indicator
is flashing during startup. After startup,
is always on and beeps once, indicating the startup is finished.
(2)Wired connection: Connect the USB port
of the M6+ hardware box to the USB port of the computer or tablet via a USB cable, and a new network connection will appear on the network management interface of the computer or tablet (WIN10 driver-free), and the IP address of the network connection property will be changed to 169.254.255.*, Subnet mask: 255.255.0.0, Preferred DNS: 169.254.255.255, click “Advanced”, add multiple IP addresses as 172.29.127.*, 255.255.0.0. After the computer or tablet is connected to the network,
the indicator light will be on.
(3) Wireless connection:
You cannot find the wireless network by plugging in the USB cable. Unplug the USB cable from the M6+ hardware box port, and you will find a M6+ DOIP-**** network on the computer or tablet, just connect it. The green light of the wireless indicator is always on, the wired light is off, no setting is required, the password is 123456789.
(4) After opening the BEN-Z software lock on the computer side, the original diagnostic test software can be used normally.
(5) For remote C-end operation, please consult us.
