QYT KT-980plus Mobile Radio 50W Dual Band 136-174&400-470MHz 200CH Vehicle Transceiver Quad Band Standby Car Radio

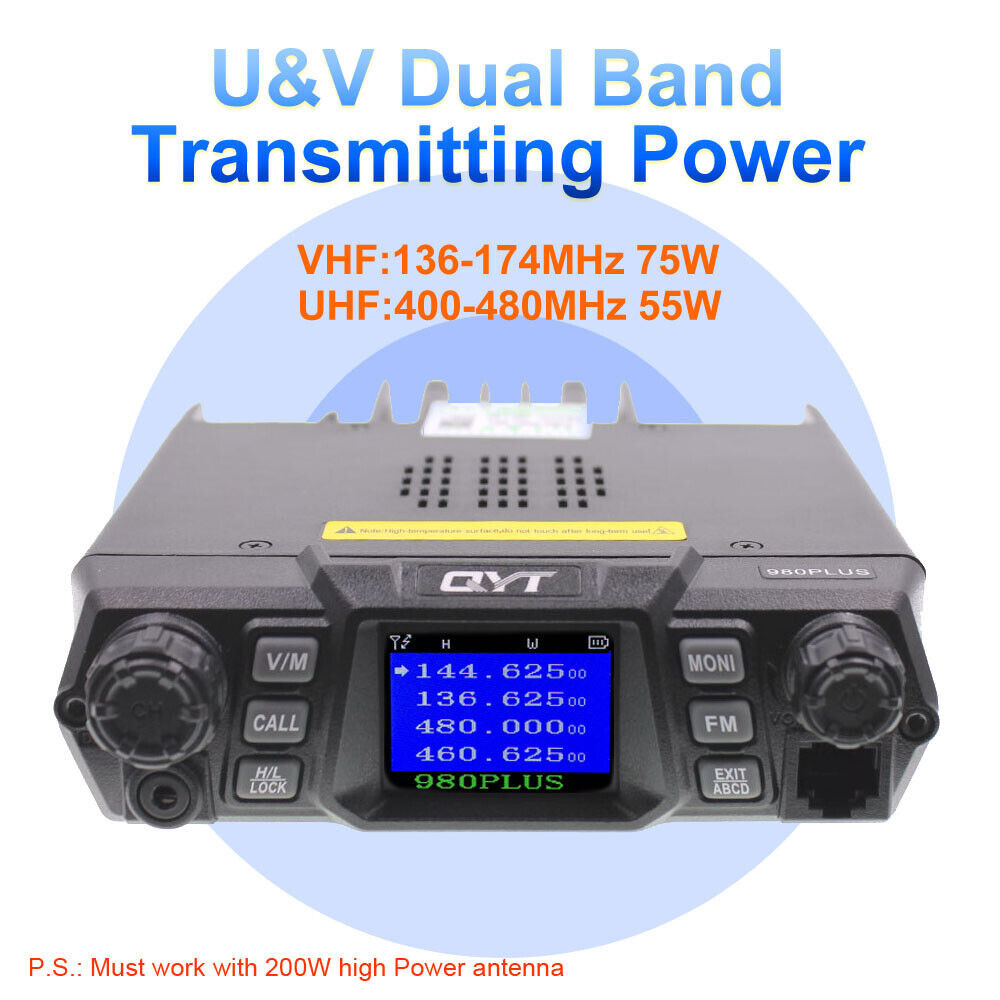

DescriptionKT-980Plus Mobile Radio is an upgrade of KT-980, not only the appearance has changed, but also increased power output, the KT-980 power is 50w and KT-980plus is VHF 75W& UHF55W and large color screen with quad standby. anysecu kindly notice that youMust use dedicatedhigh power antenna 200W (SUCH AS NL-770R-200W ) to work with it OR YOU MAY CAUSE BURN THE CHIP.

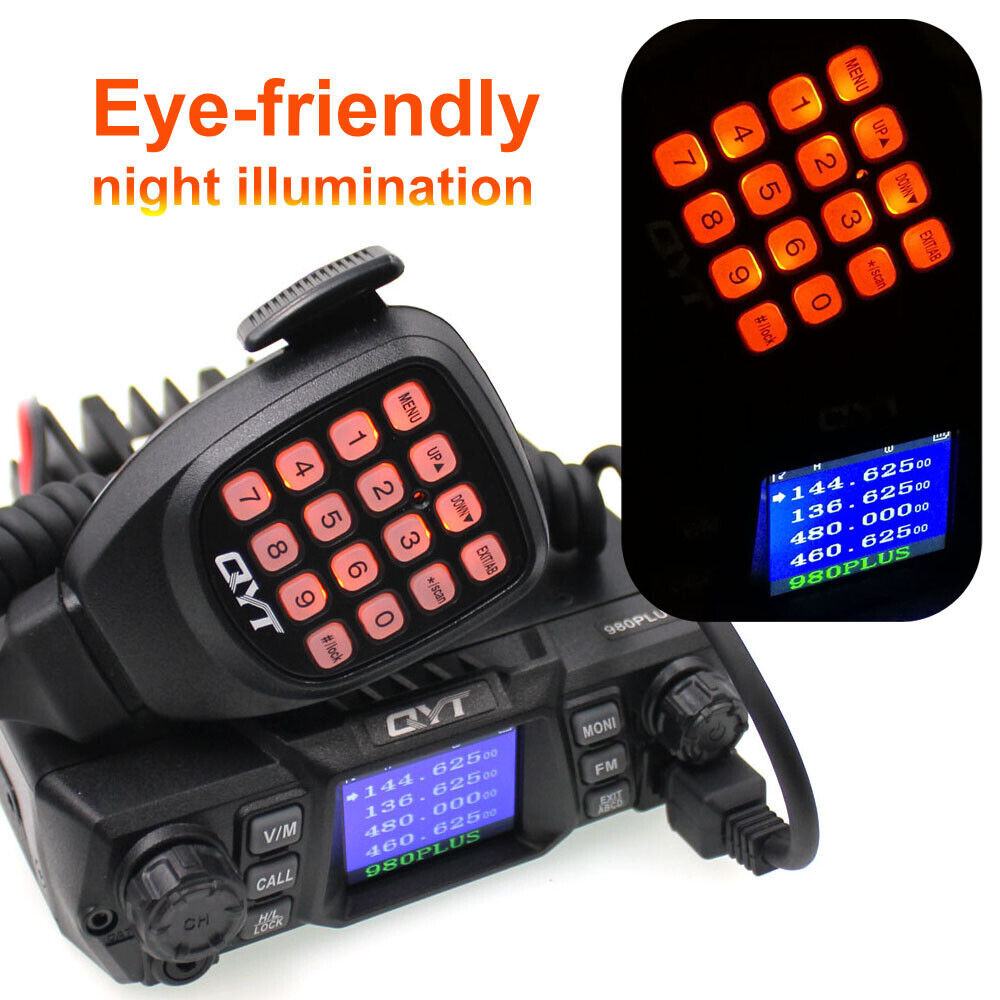

Compact and rigid car radio with colorful big screenDual Band 136~174 VHF& 400~480 UHF Transceiver supports Quad-standby
Number of Channel:200
Working Voltage:13.8V DC±15%
Operating Temperature:-20-+60C
Squelch way: CTCSS/DCS/5Tone/2Tone/DTMFHigh power output 50-75W
Specification
Receiver
Broadband
Wide band
Narrow band
Sensitivity
< 0.25V < 0.35V Channel choice >70dB
>60dB
Intermodulation
>65dB
>60dB
Spurious Rejection
>70dB
>70dB
Audio response
+1 – -3dB(0.3-3KHz)
+1 – -3dB(0.3-2.55KHz)
Signal to noise ratio
>45dB
>40dB
Audio distortion
<5% Audio output powerAudio output power >2W 10%
Transmitter
Broadband
Wide band
Narrow band
Output power
75W/55W(VHF/UHF)
Modulation Mode
16K F3E
11K F3E11K F3E
Channel Power
>70dB
>60B
Signal to noise ratio
>40dB
>36dB
Parasitic harmonic
>60dB
>60dB
Audio response
+1- -3dB(0.3-3KHz)
+1- -3dB(0.3-2.55KHz)
Audio distortion
<5%
