Potentiometer Adapter Board for Breadboard and Arduino

Thank you for supporting Filipino made products! 🙂

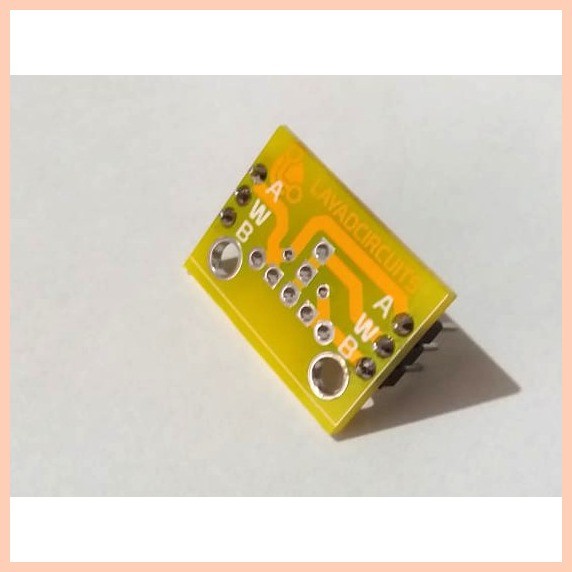

This is a potentiometer PCB adapter for easier and more secure breadboard work with potentiometers.
Potentiometer pins are usually not ideally made for breadboard work. This adapter board fixes that by providing a sytable, breadboard compatible connectors.

This board includes the pin headers already soldered but NOT the potentiometer 🙂
The potentiometers in the pictures are there to illustrate how the adapter board is used 🙂

The adapter board prevents
– loose connections
– mechanically unstable connections
– damage to breadboard points

This is perfect when working with breadboards

Pin A on left is electrically the same as the pin A on the right. This is the same for pins B and W.

Pin W is the wiper or middle pin of the potentiometer
Pins A and B are the extreme ends of the potentiometer
