Paint Thickness Tester For Car Paint Film Digital Coating Thickness Gauge Measuring Manual Pain t

GY910 Digital Coating Thickness Gauge 1 micron/0-1300 Car Paint Film Thickness Tester FE/NFE Thickness Measuring Instruments
Features:
Production DescriptionProbe: Fe+NfeRange: 0-1300 micronResolution: 1 micronUnite: um, mm, milCalibration step
Click CAL 4 times to enter NFE modeClick CAL 6 times to enter Fe modeWhen the display reads 0, put the probe on theplate.When the display reads 50, put 50 um film on theplate and click the POWER button to test.Repeat these steps for 100, 250, 500 and 1250.When the display reads AIR, switch the probe intoAIR mode, then click the POWER button to calibrate – do not place the probe on the plate.
Probe TypeFe+Nfe Metal Probe
Battery Type2 x 1.5 V AAA (not included)

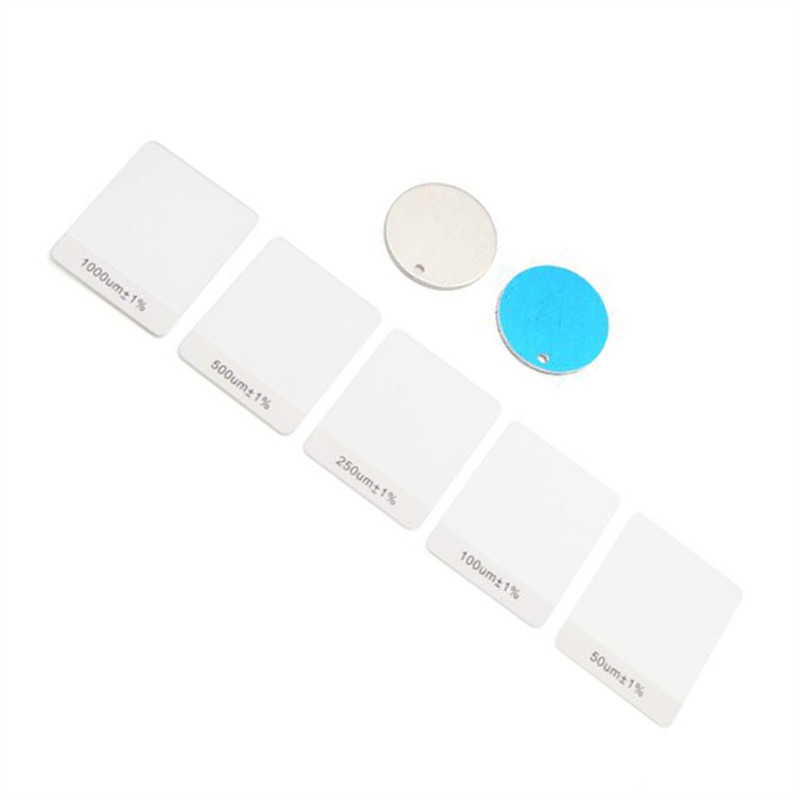

Accessory CalibrationFilms (50 um, 100 um, 250 um, 500 um,1000 um)Aluminium plate + Steel Plate
Nondestructive testing
the thickness gauge can measure,coat and coat thickness quickly and accurately without damage.it is easy to operate and use.
GY910 Coating thickness gauge
-iron and aluminum-nondestructive testing-sensitive probe-calibration function
Product parameters and dimensions

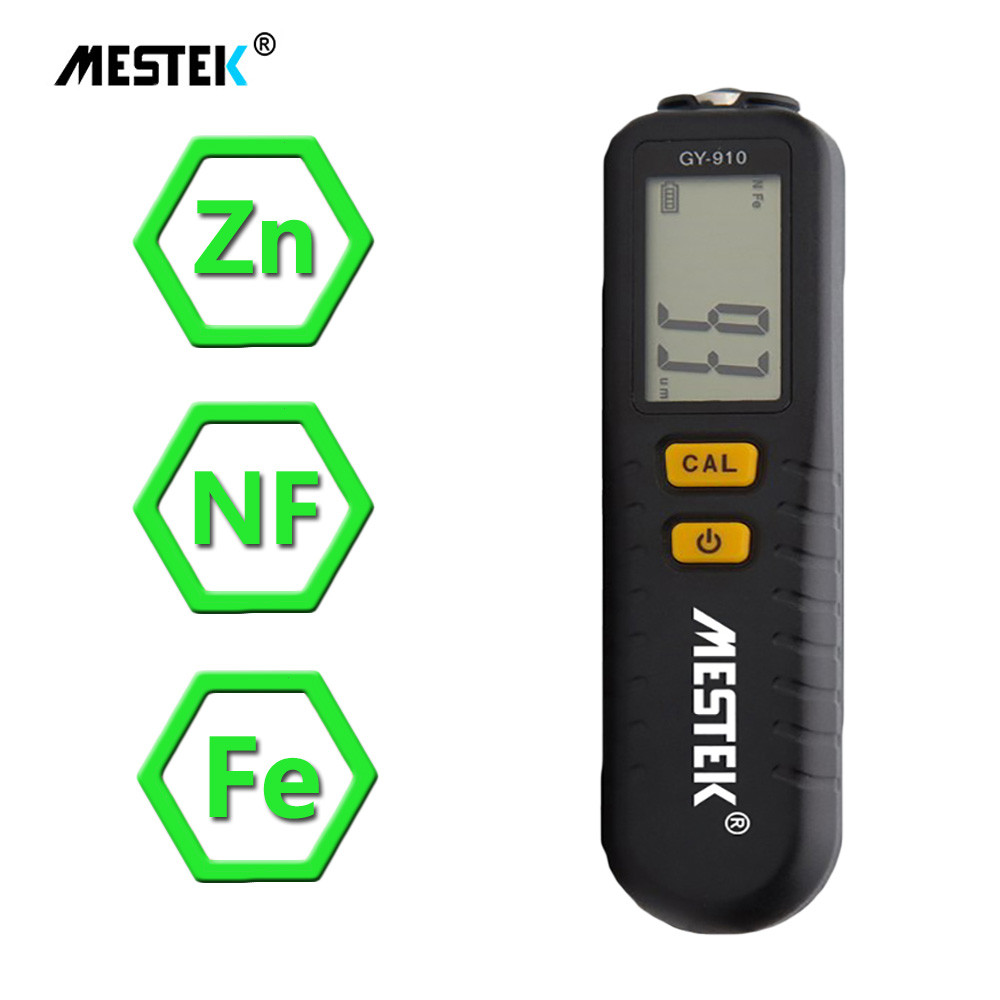

Iron-aluminium based dual-use
sensitive integrated probe
The thickness gauge uses a two-in-one probe to automatically identify the properties of the substrate.when the substrate is identified as magnetic conductive material(steel/iron,etc.),the thickness of the coating is measured by electromagnetic induction principle,and the screen shows Fe.when the substrate is identified as conductive material(aluminum/copper,etc.)the thickness of the coating is measured by eddy current effect,and the screen shows Fe.
With calibration function
The same metal substrate needs electroplating because of different requirements(zinc,copper and other metal process requirements are different),which makes the instrument need to adjust the corresponding calibration parameters to obtain more reliable data.users need calibration data at this time.
Auto shutdown power,saving and durableness
note:battery is not included
Product accessories and packaging
