[ONCEMORG-PH]2S 3S 4S Type C Dc 3 7V 5V Naar 8 4V 12 6V 16 8V Charging Board for Lipo Battery-New In 11-

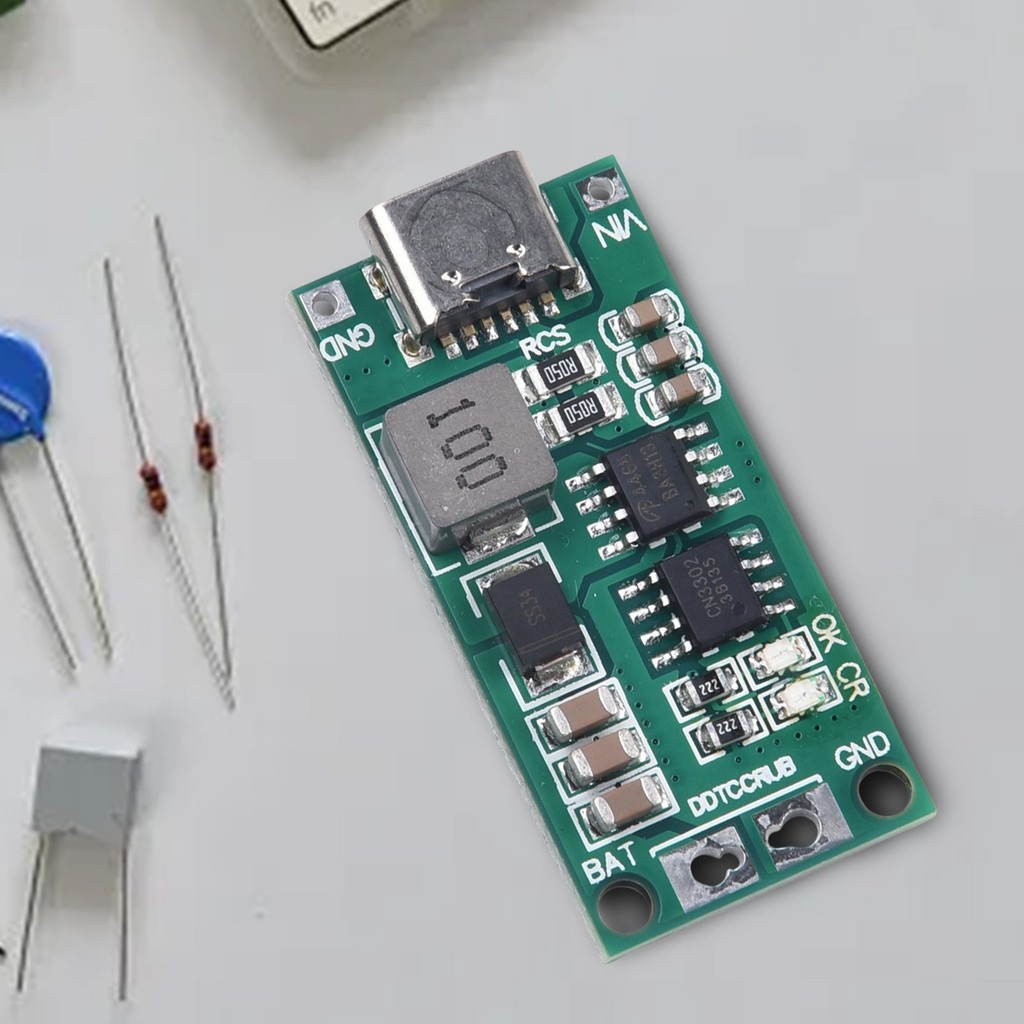

2S 3S 4S 1A 2A Type-C Dc 3.7V 5V Naar 8.4V 12.6V 16.8V Step-Up Boost Lipo Polymeer Li-Ion Lithium Batterij Oplader Board

Function:
2S 3S 4S Type-C to 8.4V 12.6V 16.8V Boost LiPo Polymer Li-Ion Charger 7.4V 11.1V 14.8V Lithium Battery

Features:
Various choices, customers can choose what they need according to different needs
Wide range of uses
High safety performance
Easy to understand and easy to operate
Battery overvoltage protection

Specification:
2-Cell(2S) 8.4V version:
Input voltage: DC 3-6V (recommended DC 3.7V 5V)
Input current: 1A(1A Version);2A(2A Version);( Version)
Charging voltage : 8.4V
Charging current: 0.55A(1A Version);1.1A(2A Version);2.2A( Version)
3-Cell(3S) 12.6V version:
Input voltage: DC 3-6V (recommended DC 3.7V 5V)
Input current: 1A(1A Version);2A(2A Version);( Version)
Charging voltage: 12.6V
Charging current: 0.37A(1A Version);0.74A(2A Version);1.48A( Version)
4-Cell(4S) 16.8V version:
Input voltage: DC 3-6V (recommended DC 3.7V 5V)
Input current: 1A(1A Version);2A(2A Version);( Version)
Charging voltage: 16.8V
Charging current: 0.28A(1A Version);0.56A(2A Version);1.12A( Version)

Battery overvoltage protection
LED indicator: ''CR'' LED indicates charging status
''OK'' LED is fully charged or in constant voltage mode;
Working ambient temperature -40°C to +85°C

Package Included
Battery module*1
