OBD2 V310 Car Scanner 12V 24V For Car Truck Engine Auto Diagnostic Tools J1939 J1587 J1708 OBD

OBD2 V310 Car Scanner 12V 24V For Car Truck Engine Auto Diagnostic Tools J1939 J1587 J1708 OBD 2 II Clear Fault Scan Code Reader
Specifications:
Display:Badit,128 x64 pixel displayOperating Temperature: 0~60( 32~140)Storage Temperature:-20 ~70(-4 ~158)External Power:8.0 to 15.0 Volts provided via vehicle batteryDimensions:28*18.5*5CMWeight:0.34Kg
Multi-Protocol Support:
1. SAE J1850 PWM (41.6Kbaud)2. SAE J1850 VPW (10.4Kbaud)3. ISO9141-2(5 baud init, 10.4Kbaud)4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)5. ISO14230-4 KWP (fast init, 10.4 Kbaud)6. ISO15765-4 CAN (11bit ID, 500 Kbaud)7. ISO15765-4 CAN (29bit ID, 500 Kbaud)8. ISO15765-4 CAN (11bit ID, 250 Kbaud)9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

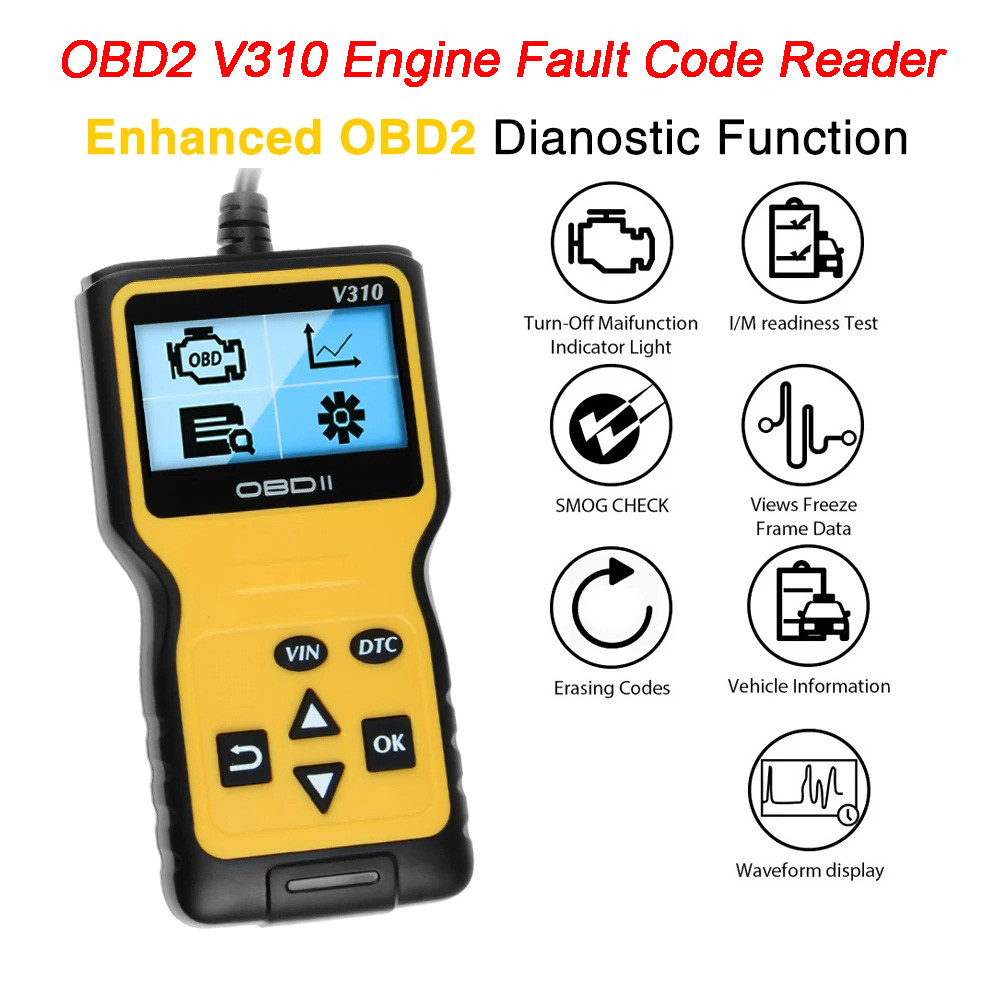

Code Reader V310 Features & Functions:
1. Support Multi-brand cars, works with all 1996 and later OBDII compliant US,European and Asian vehicles.2. Multi-language supported: English, French, Italian, Spanish, German, Dutch.3.Supporting shortcut key queries.(VIN,DTC)4.Support Read/Clear diagnostic trouble codes,I / M readiness,Vehicle InFo,turn off the MIL (“Check Engine” light) an so on.5. Display current sensor data, including:6. Engine RPM7. Calculated Load Value8. Coolant Temperature9. Fuel System Status10. Vehicle Speed11. Short Term Fuel Trim12. Long Term Fuel Trim13. Intake Manifold Pressure14. Timing Advance15. Intake Air Temperature16. Air Flow Rate17. Absolute Throttle Position18. Oxygen sensor voltages/associated short term fuel trims19. Fuel System status20. Fuel PressureAND Many others…
Feature

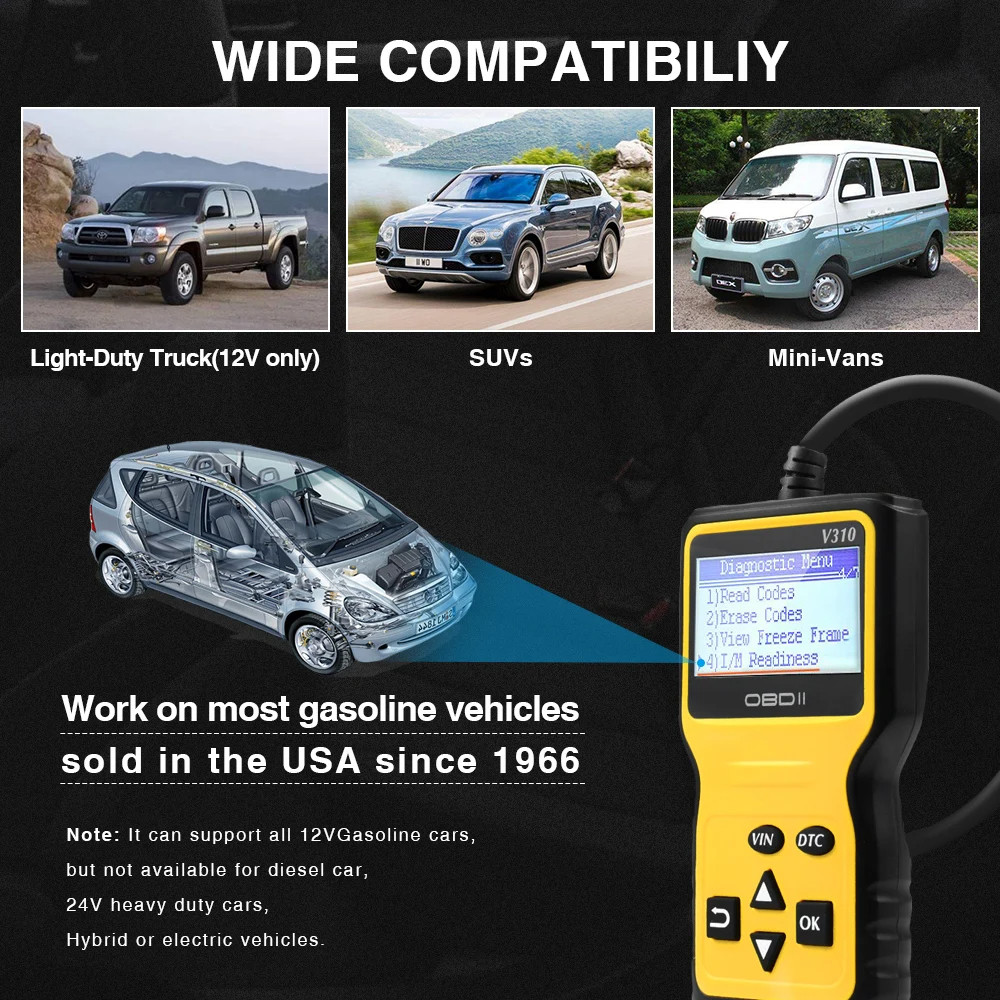

1. The V310 OBD II / EOBD code reader is specialized Designed for all OBD II compliant vehicles, including those Equipped with Next Generation Protocol – Control Area Network (were able). The US Environmental Protection Agency requires all vehicles and vehicles that were updated in 1996 (cars) Light trucks sold in the US must comply with the OBD II standard This includes all domestic, Asian and European vehicles.2. A small number of 1994 and 1995 model year gasoline vehicles are OBD II compliant. To verify a 1994 or 1995 vehicle is OBD II compliant, check the Vehicle Emissions3. Control Information (VECI) Label which is located under the hood or by the radiator of most vehicles. If the vehicle is OBD II compliant, the label will designate “OBD II Certified”. Additionally, Government regulations mandate that all OBD II compliant vehicles must have a “common” sixteen-pin Data Link Connector (DLC).4. For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.5. Code Reader V310 Support Multi-Brands Cars
