Newest Style Ku Band Single Output Lnb 9GHz 12.8G High Power Full HD TV Receiver Receive Satell

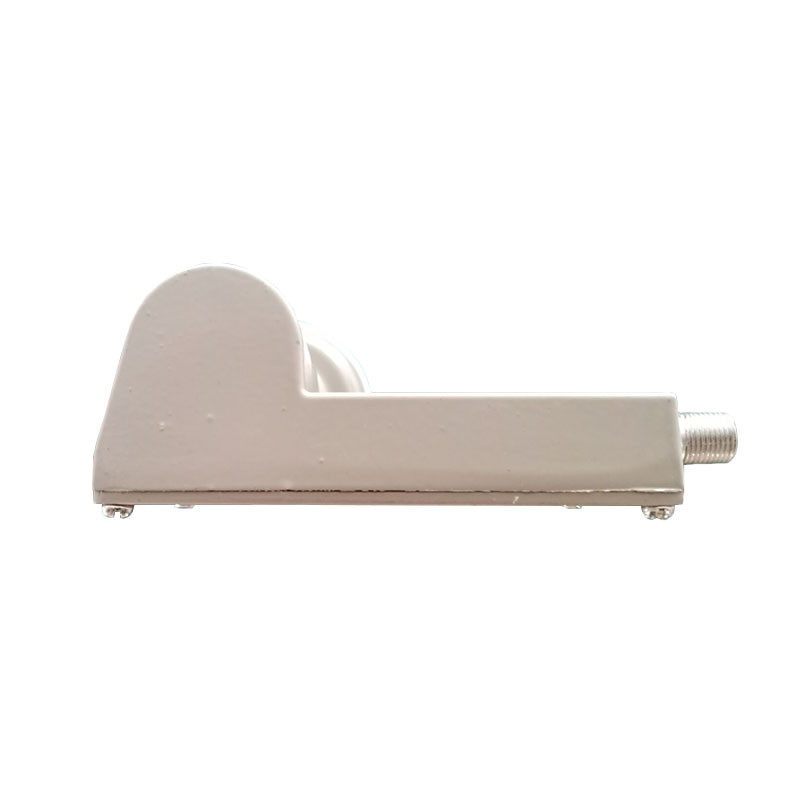

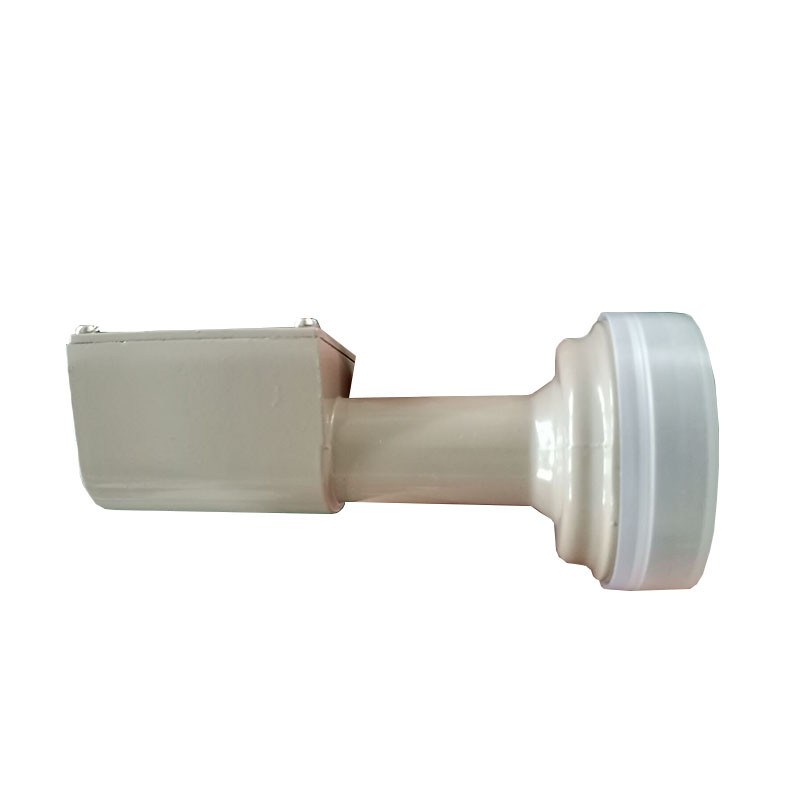

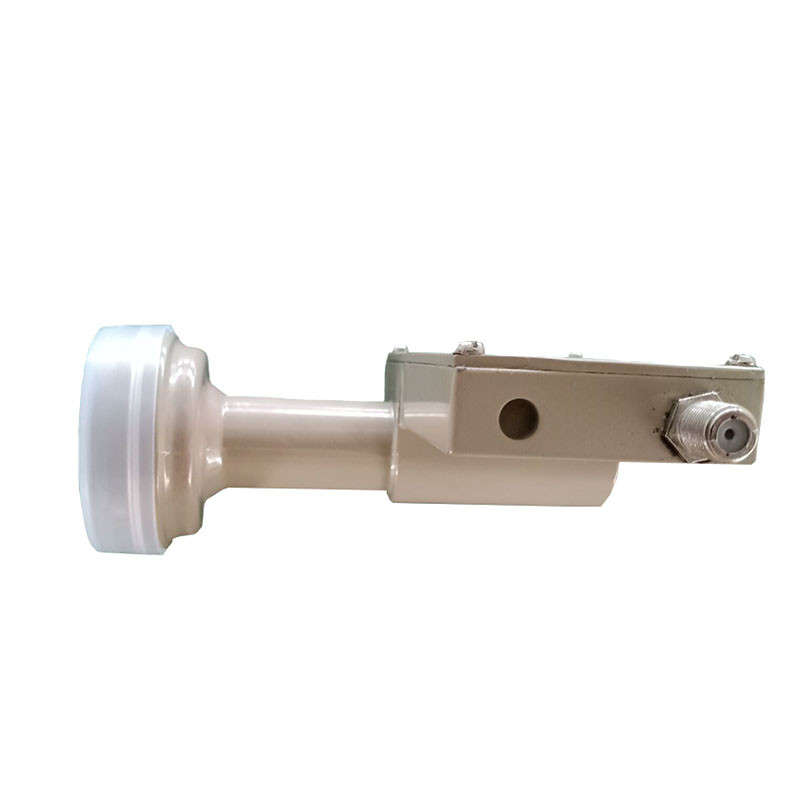

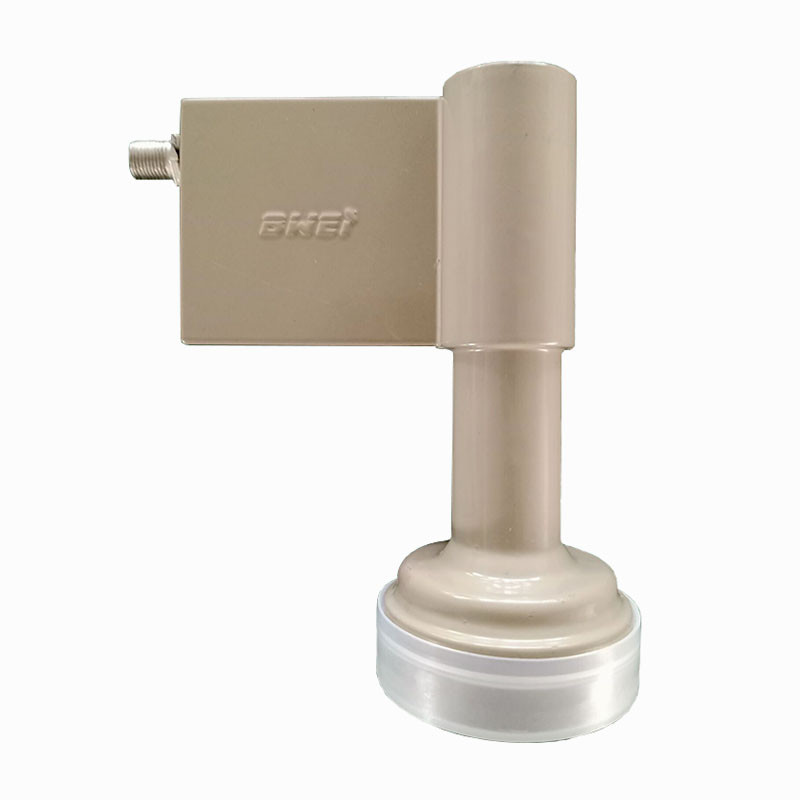

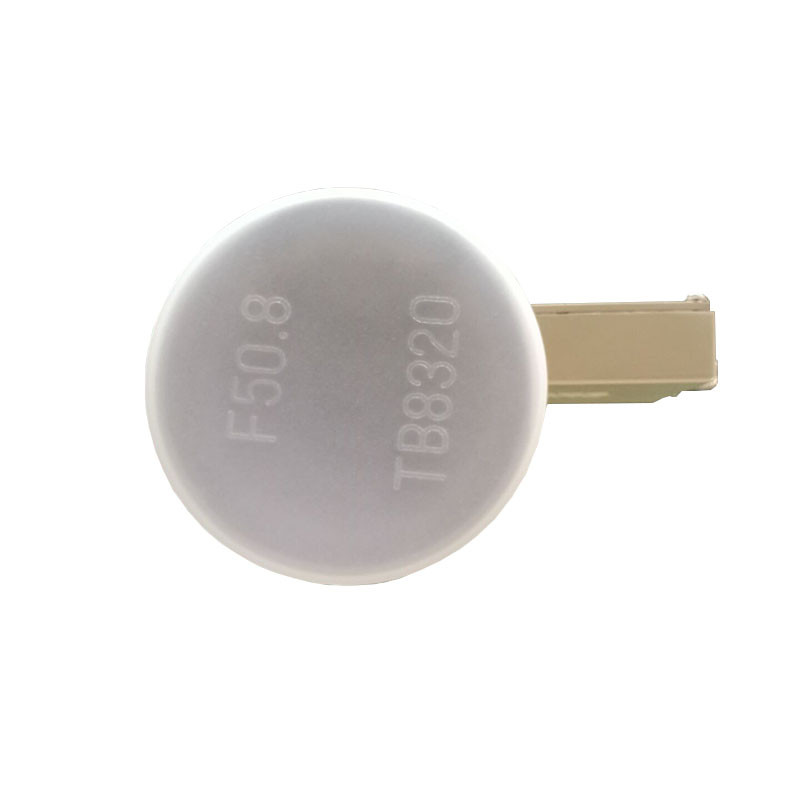

Product shows

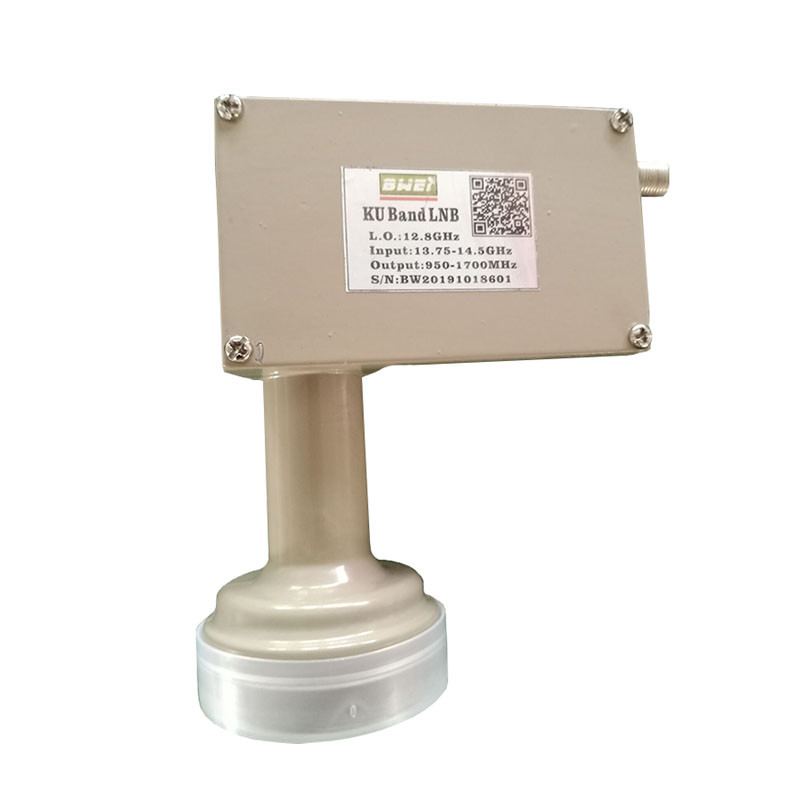

1.Input Frequency:13.75-14.5GHZ
Output Frequency:950-1700mhzL.O. Frequency:12.8Ghz
2.Input Frequency:10 – 10.7 GHz
Local Frequency:9 GHz Customized frequency
Output Frequency:1000 – 1700 MHz
L.O. Stability:±1 MHz (- 40 to +70)
Noise Figure:0.5 dB
Gain:65dB typ
Gain Flatness: +1.5 dB
Input VSWR:2.5:1 (max)
Output VSWR:2.0:1 (max)
Output Connector:F-female connector
Output Impedance:75
Cross Polar Isolation:20dB (min)
Image Rejection:45dB (min)
Phase Noise
1) -50dBc / Hz@1kHz (max)
2) -75dBc / Hz@10kHz (max)
3) -95dBc / Hz@100kHz (max)
Control Signals
1) Low Band: Ca or Cb2
2) High Band: Cc or Cb
3) Cc: continues 22 KHz
Supply Voltage
1) Ca: 11.5-14.0V ( Vertival Polarization ) 13V DC Type
2) Cb: 16.0-19.2V ( Horizontal Polarization) 18V DC Type
Direct Current:150mA
Operation Temperature:- 40 to +70
Storage Temperature:- 40 to +80
Relative Humidity:0% ~ 95%
