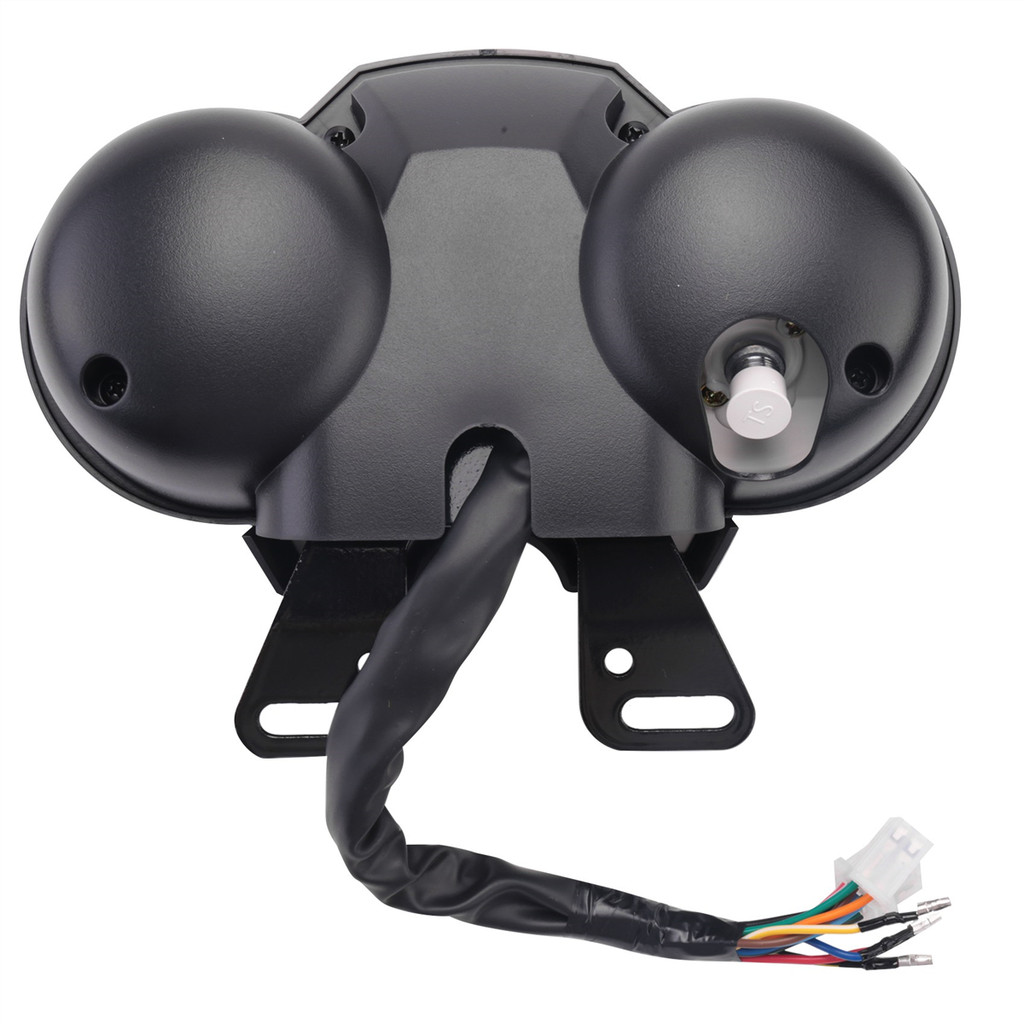

Motorcycle LED Speedometer with USB Charging Meter for Suzuki GN125-F HJ125-8E HJ150-3A EN125 G x

The screen is sealed with epoxy resin (it is no problem to soak in water for a few days)
Automotive grade chip, full digital signal processing system
Automatic photosensitive adjustment: not dazzling at night, and can be seen clearly in the sun.
There is no need to replace the teeth of the meter, and the installation size is the same as that of a mechanical meter, so there is no trace of installation!
Tachometer: grid display, maximum speed 11000rpm, error +5%
Odometer: six digits, minimum 0.1km
Indication function: left turn signal, high beam, right turn signal
File display function: N lights, 1-5 files
Alarm function: low oil volume alarm
White word display wiring
1. Green: negative pole
2. White/yellow: oil volume
3. Black: positive pole
4. Blue: high beam
5. White/blue: speed
6. Brown: lighting
7. Orange: turn left
8. Red: battery positive pole
9. Light blue: turn right
10. Red/black/green: neutral
11. Red/blue: 1st gear
12. Black/blue: 2nd gear
13. Yellow/black: 3rd gear
14. White/red: 4th gear
15. Yellow/brown: 5th gear
color:Black
Material:ABS
Package Contents:
1 x Motorcycle Speedometer
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
