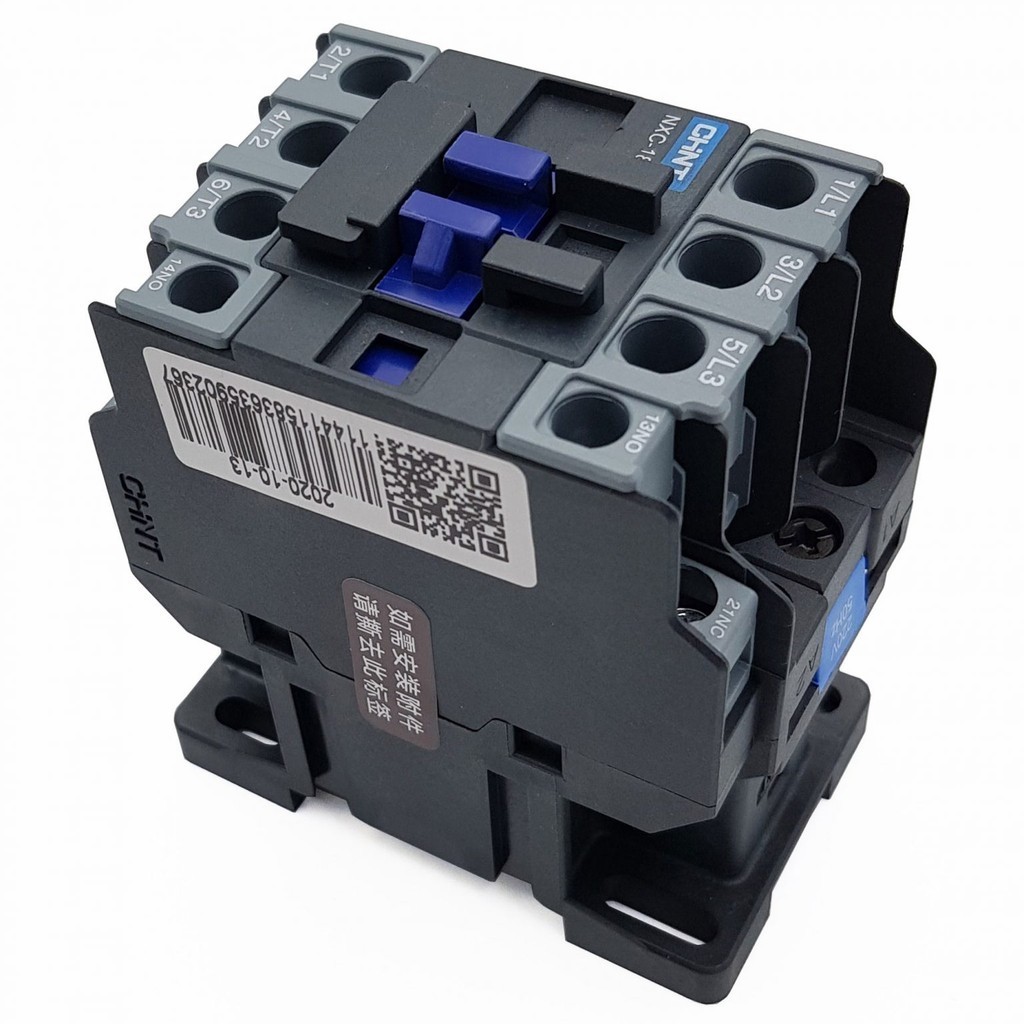

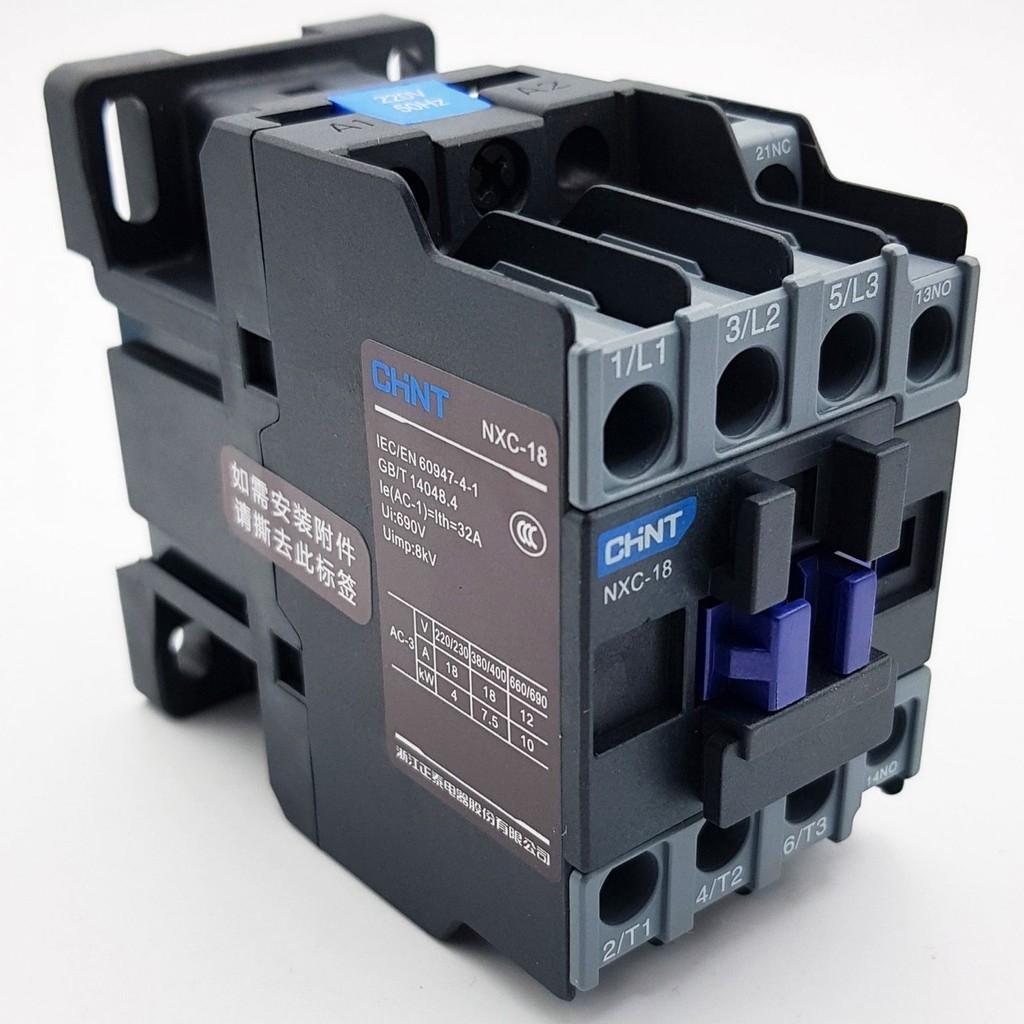

Magnetic starter, contactor 18A suction coil 24VAC NXC-18 24VAC NXC-18 24V

Contactor (Motor Switch), also known as Magnetic Starter, is a low voltage tool, performing frequent switching of dynamic electrical circuits. Contactor is particularly important electrical equipment in electrical systems. Thanks to contactor, we can control devices such as motors, capacitors, lighting systems,… through buttons, automatic mode or remote control.

Contactor CHINT is a domestic product imported genuine CHINT, with main contacts up to 18A, for a capacity of 7.5 KW AC-3 (380/400v), maximum Ith current up to 32A Ac-1.
Ac1: Used for pure resistors such as drying resistors, Contactor's main contacts are selected to switch and switch loads with Cos phi larger than 0.95. This type applies to all AC loads with a coefficient of Cos over 95%
Ac3: Used to switch and cut for engine load without motor squirrel cage rotor, load-bearing contact when starting with 5-7 times the rated current of the engine. Of Often used for star/triangle starters, crane circuits.

Technical SPECIFICATION
Manufacturer: CHINT
Model: NXC-18

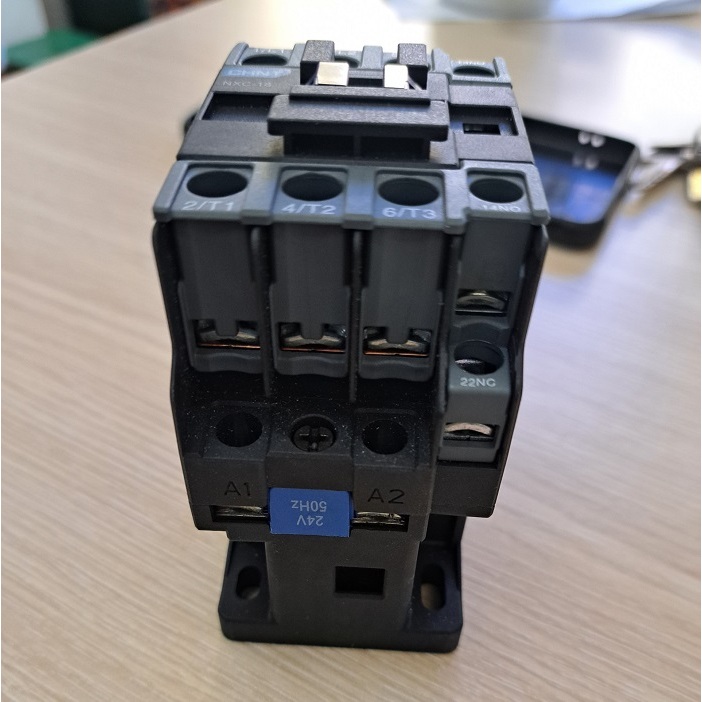

Suction coil voltage: 24V
Nxc Series
Power: 7.5kW
Number of poles: 3P
Contact: 3 pairs of main contacts and 2 auxiliary contacts 1 NO + 1 NC
Rated current: 18A (current runs through 3 poles)
220 / 230-4kw: 18A

380 / 400-7.5KW: 18A
Maximum Ith AC-1 Series: 18A
Maximum voltage: 660/690V (voltage placed on 3 poles) Isolation voltage Ui: 690V
Insulation Pulse Voltage: Uimp: 8kv
Dimensions: 74.5 × 46.5x75mm (LxWxH)
Weight: 320g

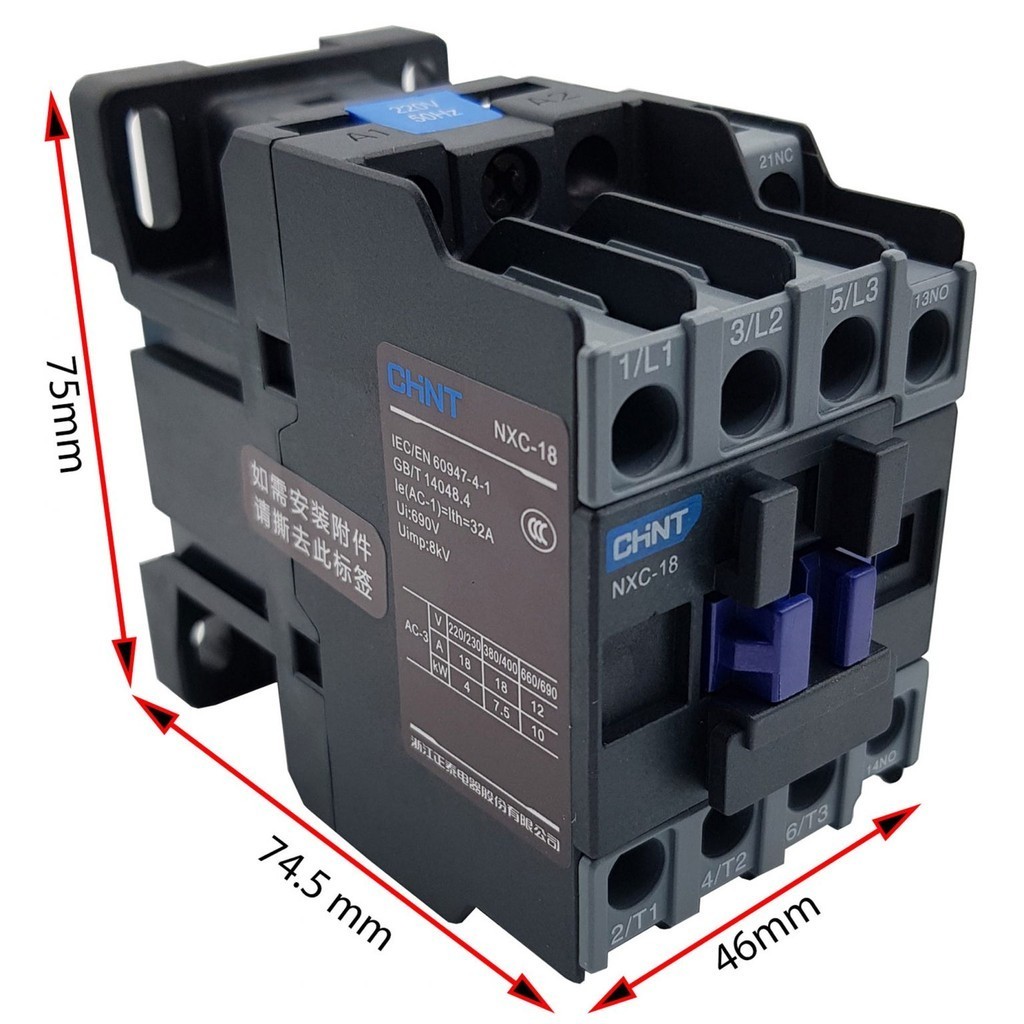

Dimensions of Contactor CHINT NXC-18 18A 7.5kW
