Free Shipping VX2120-08-SS-NO 1/4″ Normally Open Stainless Steel Body 2 Way Oil Acid Solenoid Valve

Please note that we are selling factory direct products. All our products are 100% brand new in manufacturer's packaging.
1/4 Stainless Steel Body Normally Open 2 Way Solenoid Valve Oil Acid AC220V
Code OptionThread Option: G and NPTStandard Voltage Option: DC12V,DC24V,AC110V,AC220VMaterial Option: Stainless SteelOil Seal Option:VITON
Descriptions
VX2120-08-SS-NO
Port Size
G1/4''
Orifice Size(mm)
2

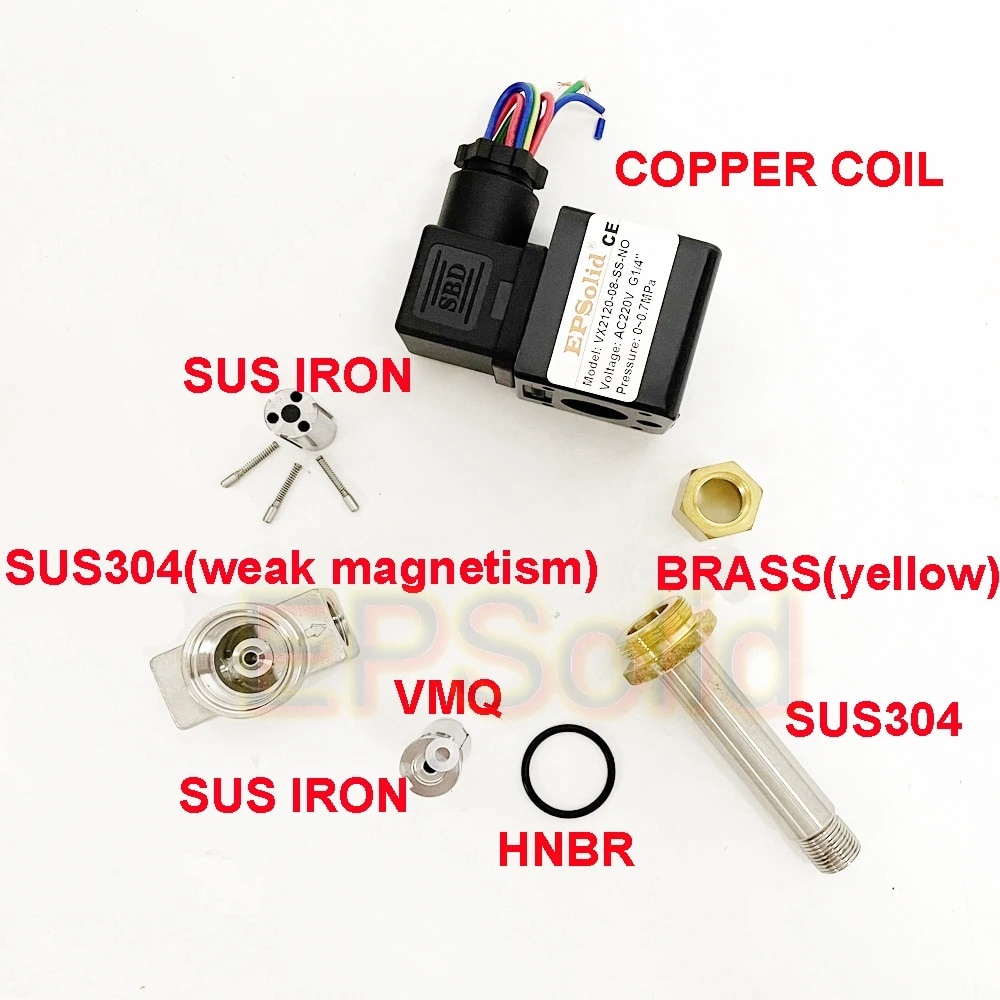

CV Value0.18TypeNormal OpenWay Position2/2 WayMaterial of BodyStainless SteelMaterial of PinStainless IronMaterial of SpringStainless Steel 304Material of SealHigh Quality NBR and VMGMotion PatternDirect DriveWorking Temperature-5-100'C DegreeWorking PressureWater/Air/Gas: 0~0.7MpaVoltageAC110V,AC220V,DC12V,DC24V,AC24VVoltage Range±10%LiquidWater Oil Gas AirCoilDIN type with WiresDescription:Two position, two way, normal close switch, magnetic solenoid water valve.it is a good choice when the horizontal tube keep upward.Used to control automatically the liquid and gas in the pipeline.QA: WHY THE VALVE COULD BE SUCKED BY A MAGNETSome people often think that the magnet is used to test the quality of stainless steel. The magnet is not attractive, non-magnetic and genuine; If it is magnetic, it is considered to be a fake. In fact, this is an extremely one-sided, impractical and wrong discrimination method. Generally speaking, stainless steel has magnetic and non-magnetic. Austenite type is non-magnetic or weakly magnetic, such as 201, 202, 304, 316, etc; Martensite or ferrite is magnetic, such as 430, 420, 410, etc. However, due to component segregation or improper heat treatment during smelting, there will be a small amount of martensite or ferrite in Austenitic 304 stainless steel. In this way, 304 stainless steel will have weak magnetism. In addition, after cold working, the microstructure of 304 stainless steel will also be transformed into martensite. The greater the cold working deformation, the more martensite transformation, and the greater the magnetism. Like the stainless steel wire of the same batch number, it is made into a straight support without obvious magnetic induction, but when it is bent into a rectangle or circle, it will produce some magnetism due to large cold bending deformation, especially in the corner part. In order to eliminate the magnetism of the above 304 stainless steel, the stable austenite structure can be restored by high temperature treatment, so as to eliminate the magnetism. In particular, the magnetism of 304 stainless steel caused by the above reasons is not at the same level as that of other stainless steels, such as 430 and carbon steel, that is, the magnetism of 304 stainless steel is always weak.IF u need Coil and Fittings for this valve,pls click follow pictureIF u need Normally Closed type VX2120-08-SS-NC,pls click hereIF u need Clamp,pls click hereIF u need Chucks,pls click here
IF u need Valve with Thread Chuck,pls click here

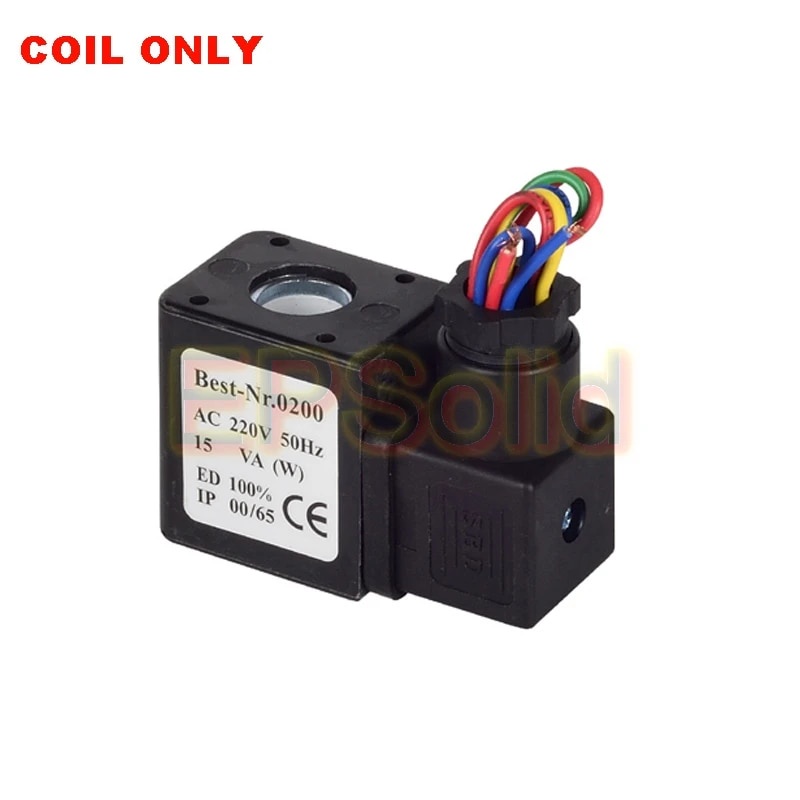

IF u need Coil for this valve,pls click here
