Free shipping F female to female connector lightning arrester x

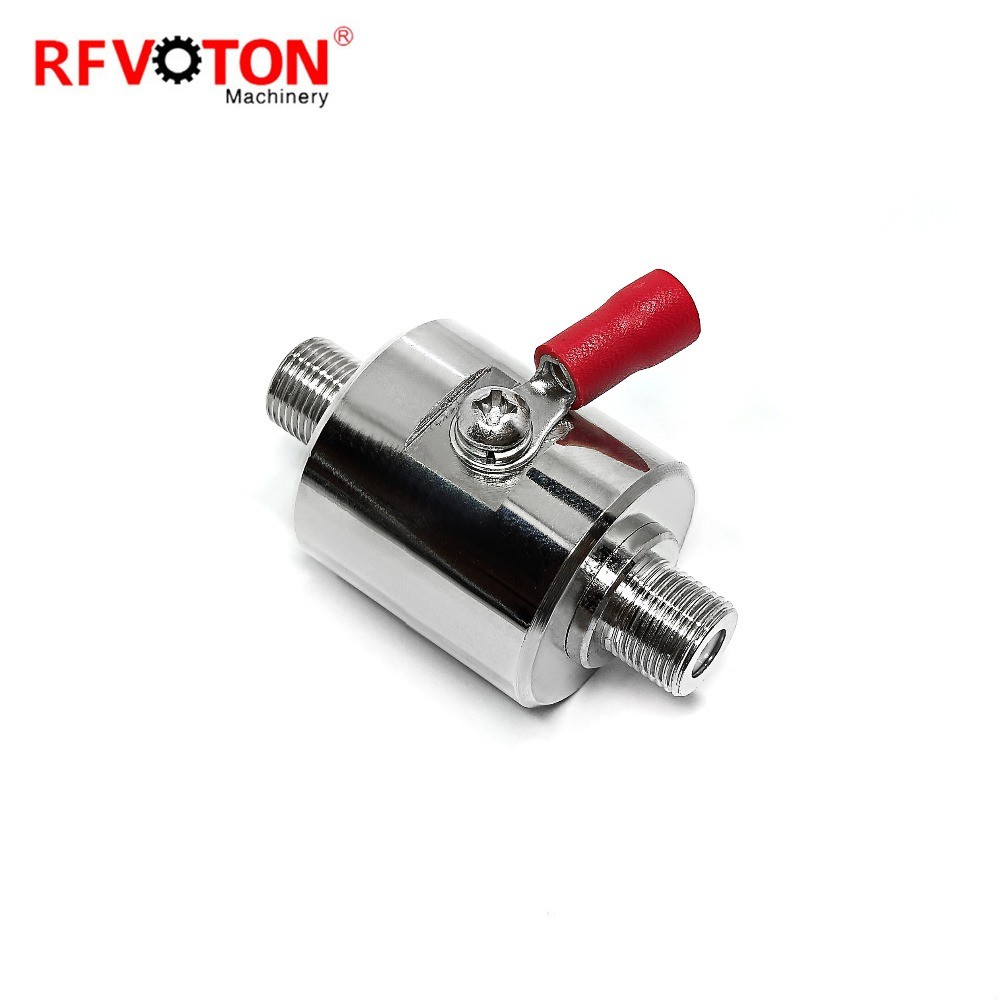

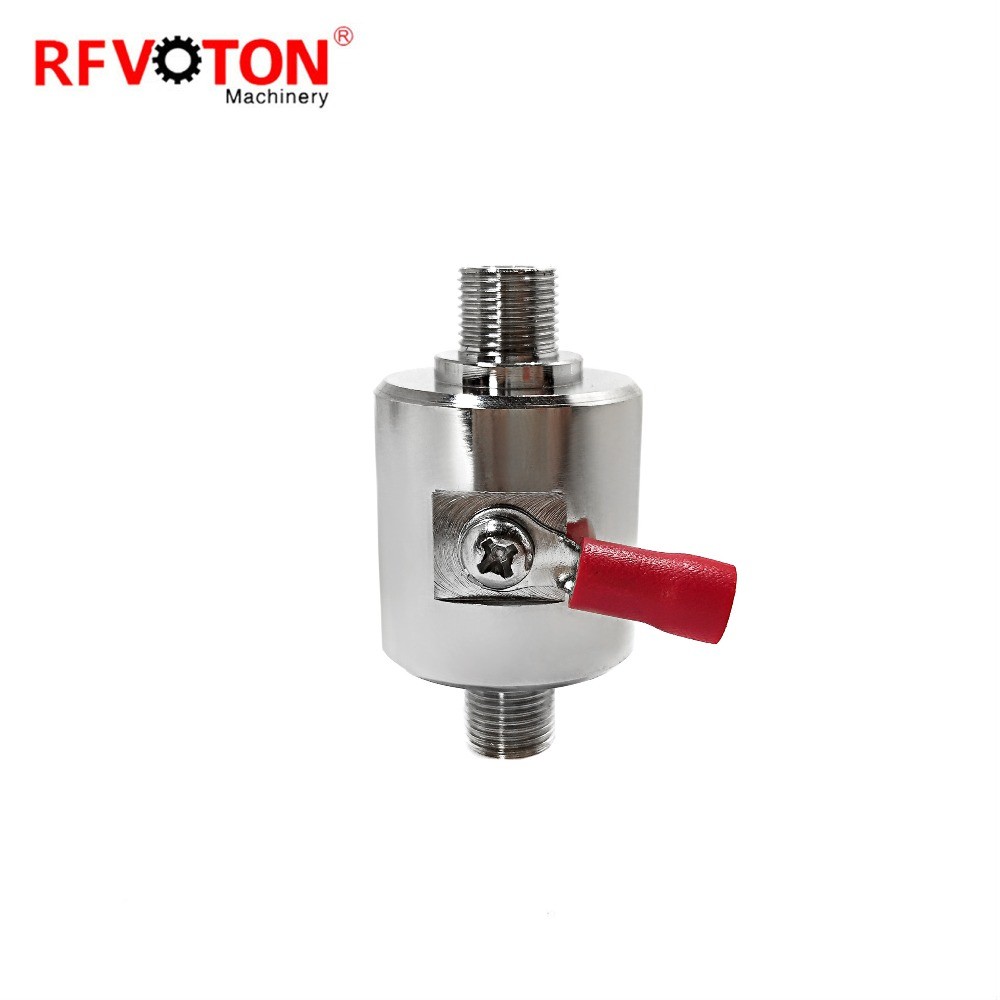

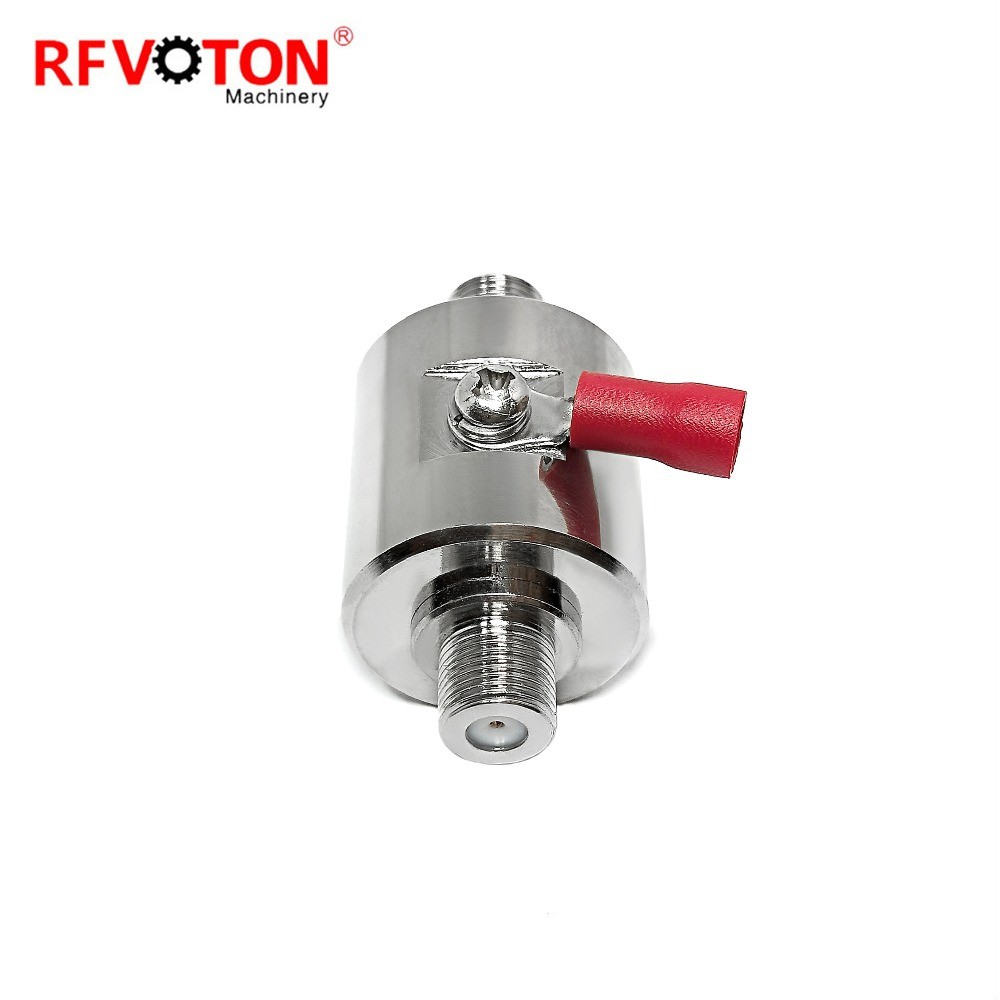

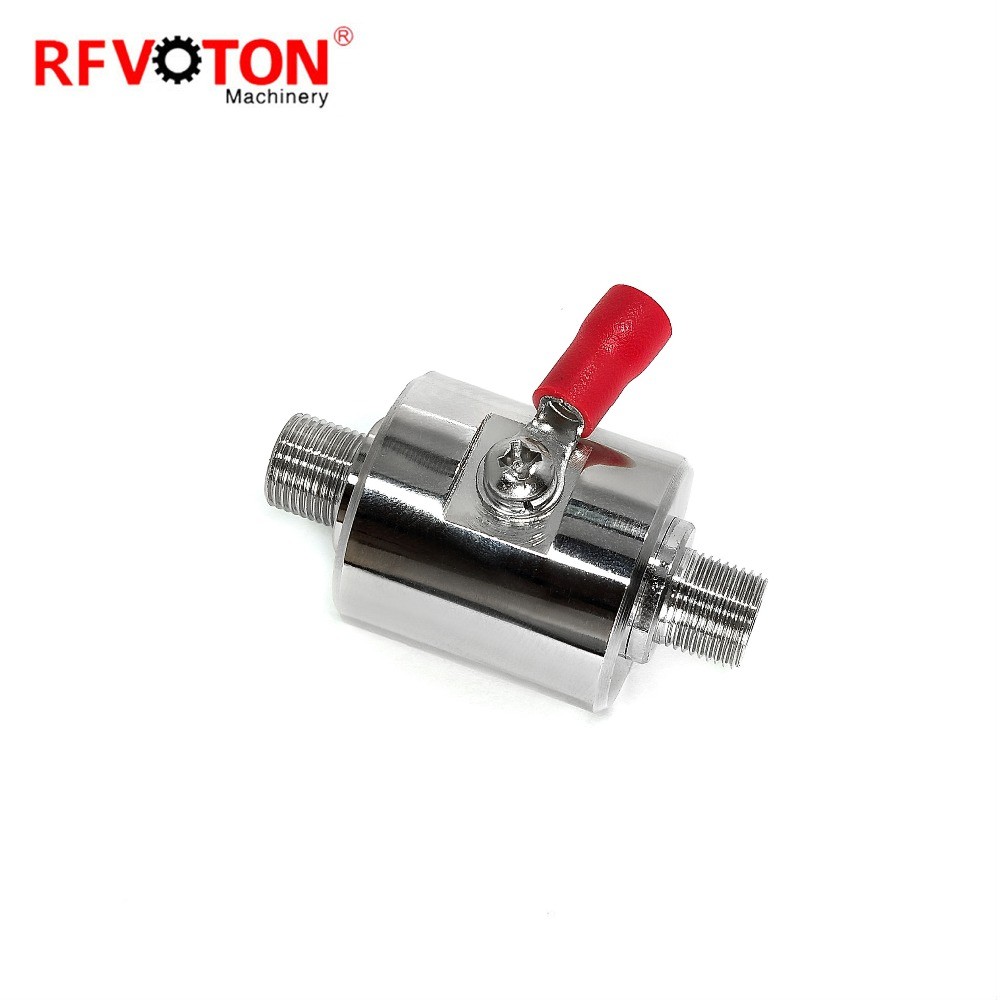

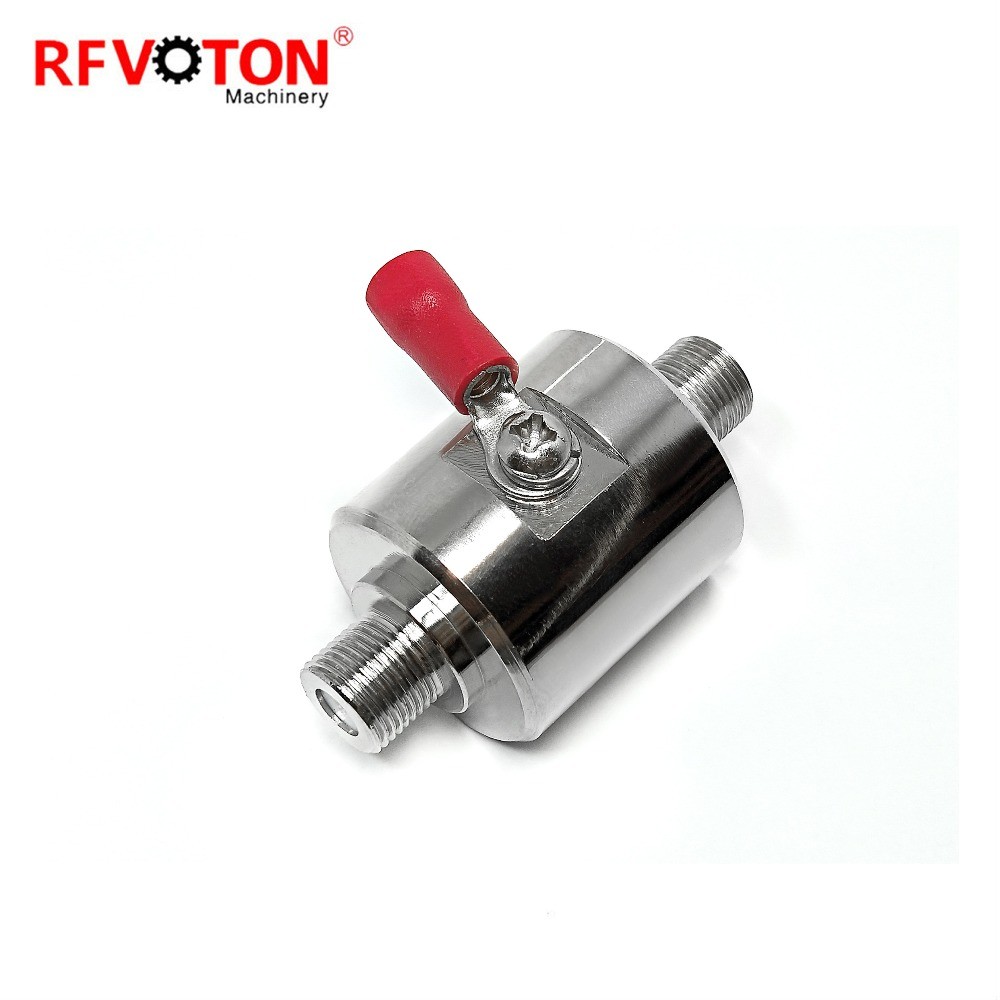

Free shipping 0-6G N female bulkhead to female lightning arrester
Electrical
Impedance
50
Frequency range
0~3GHz
Working Voltage
1500V max
Withstand Voltage
1500V rms
VSWR
Straight
1.2
Rigth Angle
1.3
Contact resistance
-center contact
1m
-outer contact
1m
Insulation resistance
5000M
Mechanical
Temperature range      -55°C~+155°C
Durability(matings)      >500 cycles
Material and plating
Piece part
Material
plating
Body
Brass
Nickel or Tri-Metal plated
Center conductor
Brass or Phosphor Bronze
Gole or silver plated
Crimping suite
Copper alloy
Nickel plated
O-ring sealing
6146 silastic
Insulator
PTFE
Environmental
IEC 60169-16/MIL-C-39012/CECC22210
Free shipping 0-6G N female bulkhead to female lightning arrester
