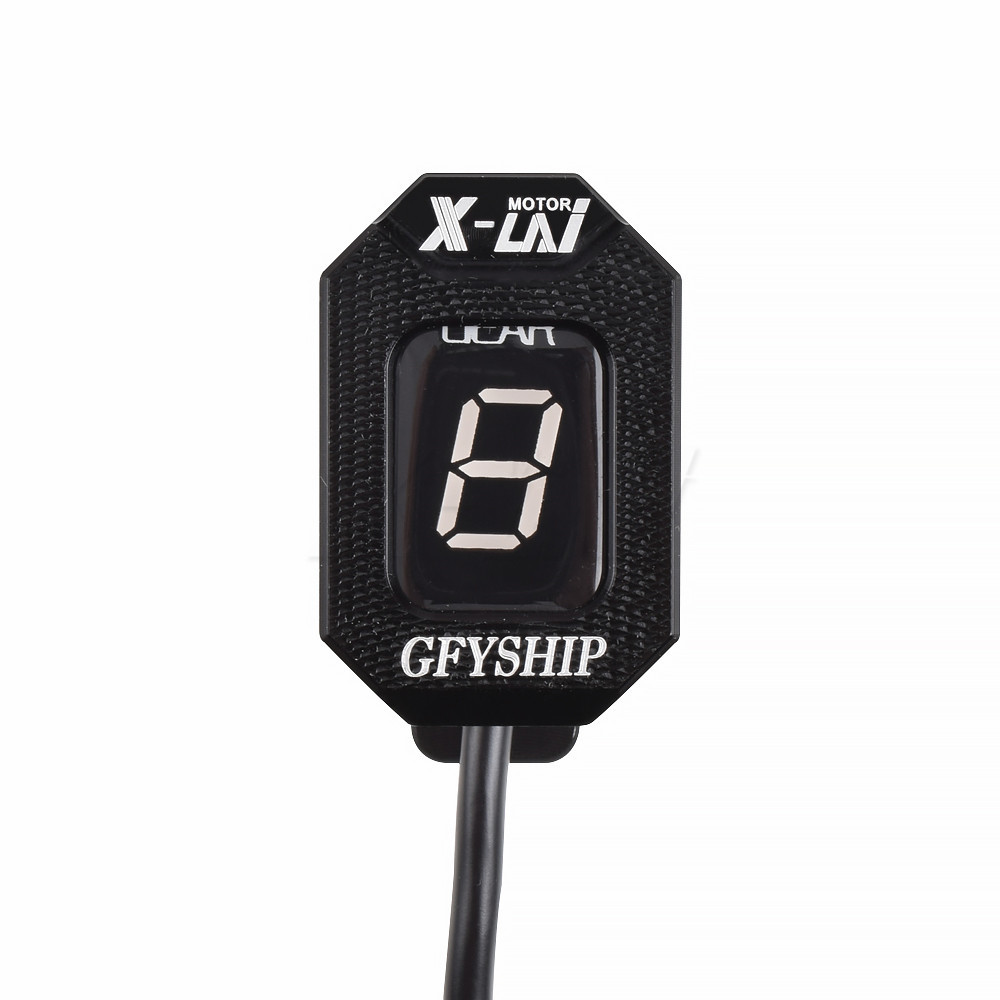

For Kawasaki Z250 2013 2014 / Motorcycle 1-6 Level Gear Indicator Digital Gear Meter P

Welcome to my store!
If you like other shippingments ,please tell me.
We will give you the details of the shipping you need.
Fitment:
Instructions Guide:
You need to connect 4 wires to the bike's wiring harness. Good quality quick connectors are supplied (4 pcs wire taps). No need to cut any wires and no need for soldering.
All connections can be done either under the fuel tank, at the ECU box or behind the instrument cluster.
The table below shows the connection overview:
GFYSHIP wire
Connect to
Red
+12V switched power lead
Black
Ground lead or chassis ground
White
Speed Signal, tap anywhere between the Speed Sensor and instrument cluster.
On some ABS models, tap the speed signal anywhere between the ABS computer and ECU box.
Green
Tacho signal, tap anywhere between the ECU box and instrument cluster.
Alternatively, tap the signal wire from the 2-wire
Crankshaft Sensor (Pickup coil), anywhere between the sensor and ECU box.
Setup:
Package Include:
