Digital 6-Way Coaxial BR Tap Splitter 5-1000MHz Work with TV and Internet,CATV Antenna System JM 6FZ

Digital 6-Way Coaxial BR Tap Splitter 5-1000MHz Work with TV and Internet,CATV Antenna System JM 6FZ

What's the difference between CATV splitter and CATV tap

1. The cable signals entering the house are divided into multiple signals and output to the TV. The output signals are isolated from each other, and crosstalk will not occur. Each output signal compared to the input signal will have a certain attenuation, attenuation is the same.

2. The CATV splitter ports are identified as: in, out (as shown in the figure, 1in 1out means 1 into and 1 out of the CATV splitter).

3. The CATV splitter distributes the signal equally, and the signal comes out the same.

4. Mainly applied to the distribution of main lines.

___________________________________________________________________

1. The CATV tap takes out a small part of the signal from the main circuit and sends it to the branch port.

2. The CATV tap port is also called BR port, which means branch. If it is necessary to connect The CATV tap devices in series, it will be used. But its outlet is only one out, the rest are TAP (BR) port. The attenuation of OUT port is small, and it is the connection interface between branches. TAP port signal attenuation is large, can no longer be used as a branch series trunk connection, generally directly connected to the terminal.

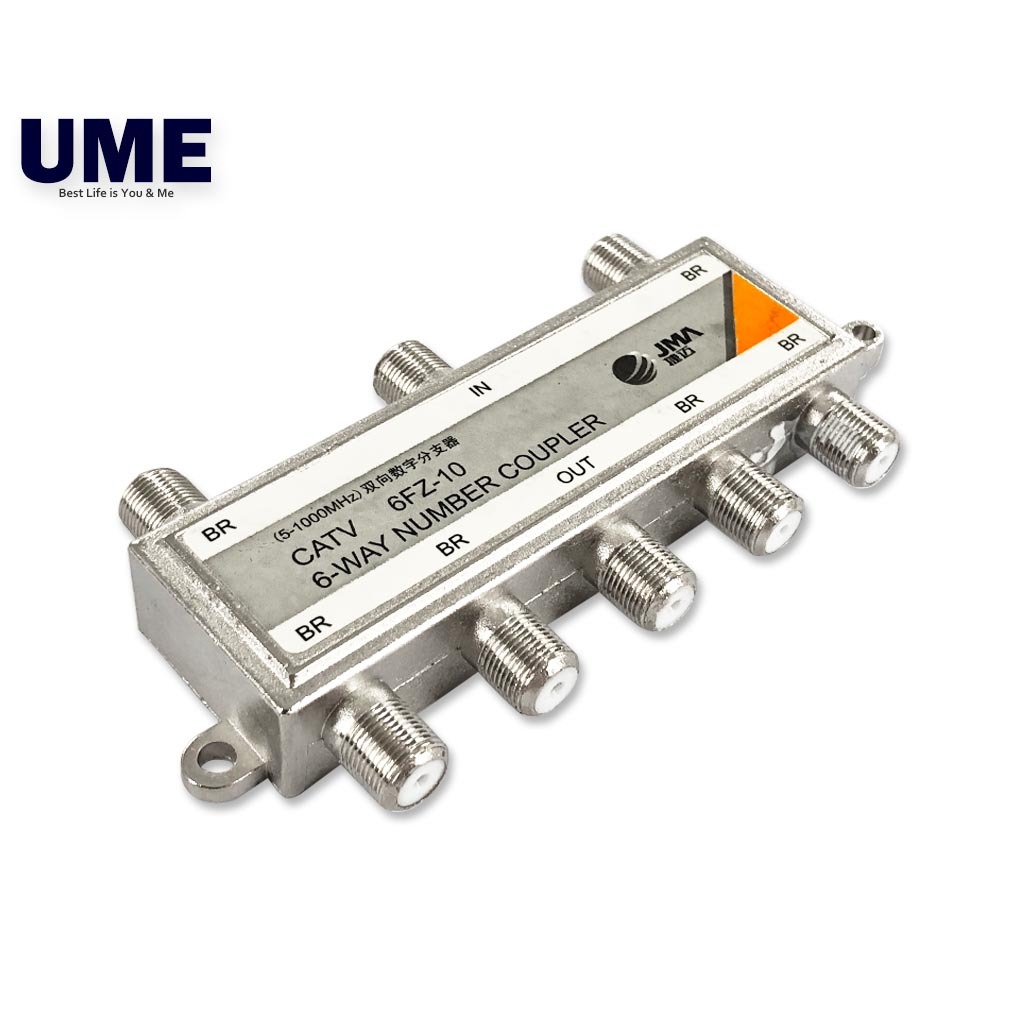

3. The port identification of the CATV tap is: in, out, tap (BR) (as shown in the figure, 1in 1out 6tap is the CATV tap of Six-for-one).

coaxial cable splitter 5 way Coaxial Tap Splitter can output 6 devices from one digital signal, mainly used for TV signal, satellite TV, wireless Internet access, digital signal transmission and cable TV, amplifying antenna, amplifier and other coaxial equipment. Compatible with RG59 and RG6 coaxial cables.

NOTE:
1. Photos posted are actual items. Please allow some slight color difference as different lights and monitors always show different colors.
2. If there are problems, inquiries or concerns, please feel free to message us and we will get back to you as soon as we can.
3. All items are available, on hand, and are ready to be packed and shipped upon order
