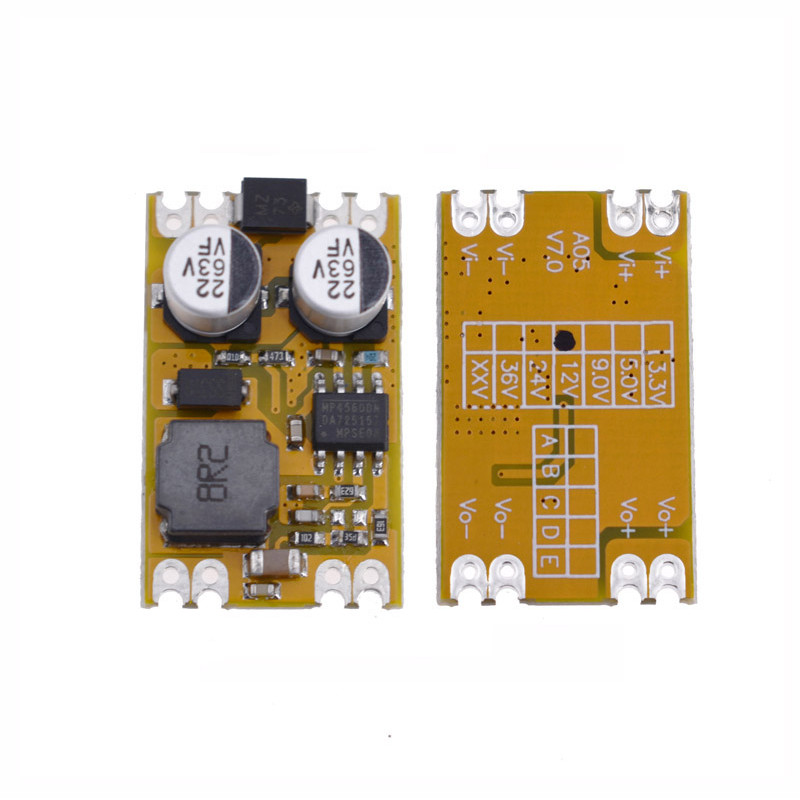

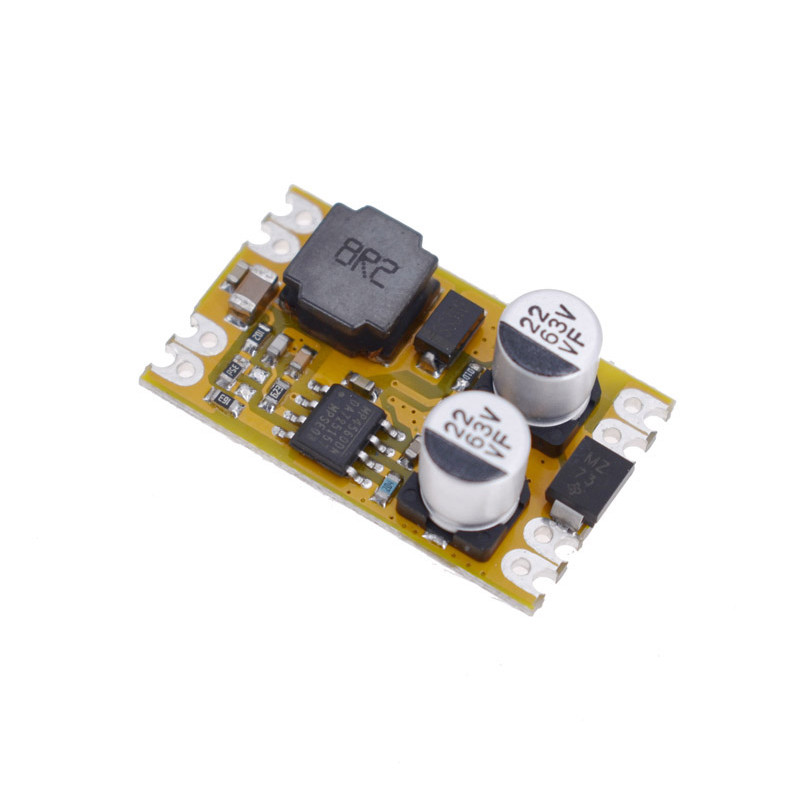

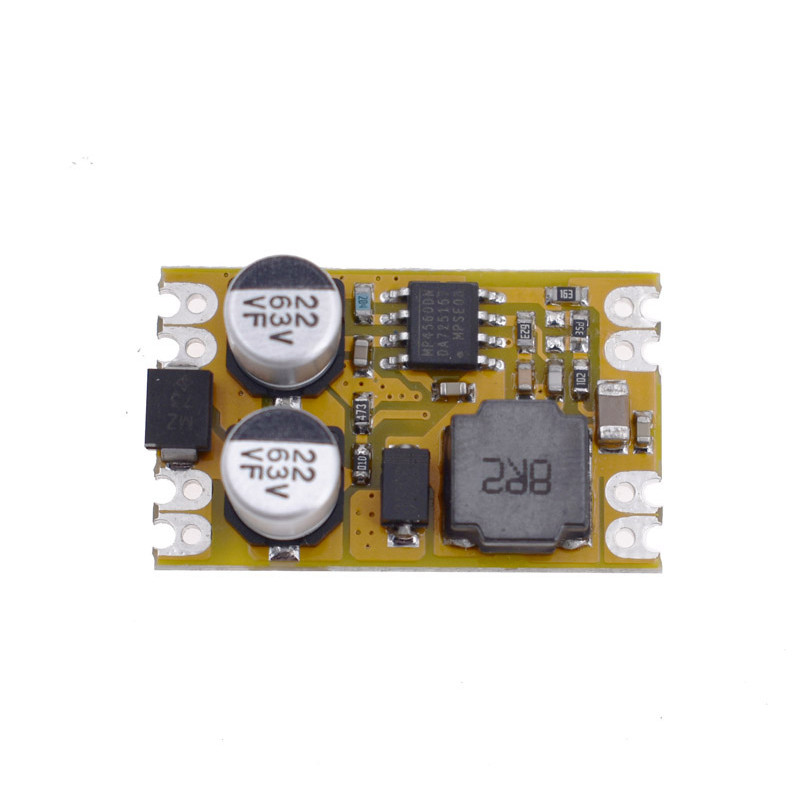

-DC DC Step Down Power Supply Module Buck Regulated Board 2A Input 8-55V Output 3.3V/5V/9V/12V E

This module is a high voltage, high current DC-DC buck module.Input up to 55V, maximum efficiency 90%, output 5V and maximum current 2A.Can turn off the module.It has many advantages such as low power consumption, low impact and anti-interference ability.It is widely used in automobile, electric vehicle, communication equipment, ship, industrial control, LED lighting field.
Specification:1.Input voltage range: DC 8V-55V2.Output voltage: 3.3V/5V/9V/12V(Optional)3.Maximum output current: 2A4.Maximum efficiency: 90%5.Working frequency: 500KHZ6.Standby current: 200uA@8V,500uA@50V7.Module turn off current: 1uA8.Full load ripple: 9.Full load working temperature: 65°C(max)10.Working temperature: -40°C to +85°C11.Storage temperature: -55°C to +120°C12.Module size: 25.5*16.5*7mm (L*W*H)13.Module weight: 2.2g
Note: This module is Input a wide range, and the current is increased to 2A, much larger than 600ma, and the range of use is wider.
