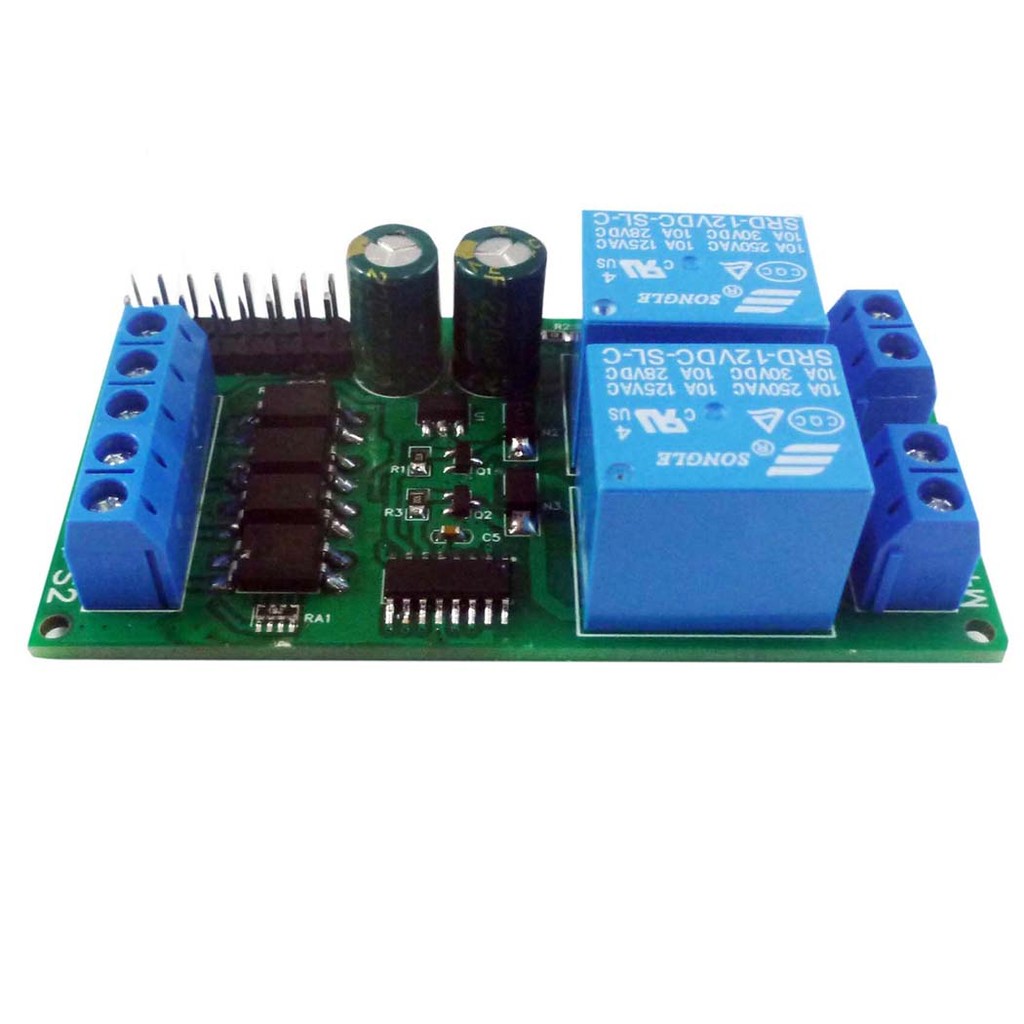

DC 12V 24V Multifunction Motor Forward Reverse Controller with Limit Relay Driver Module for Li D

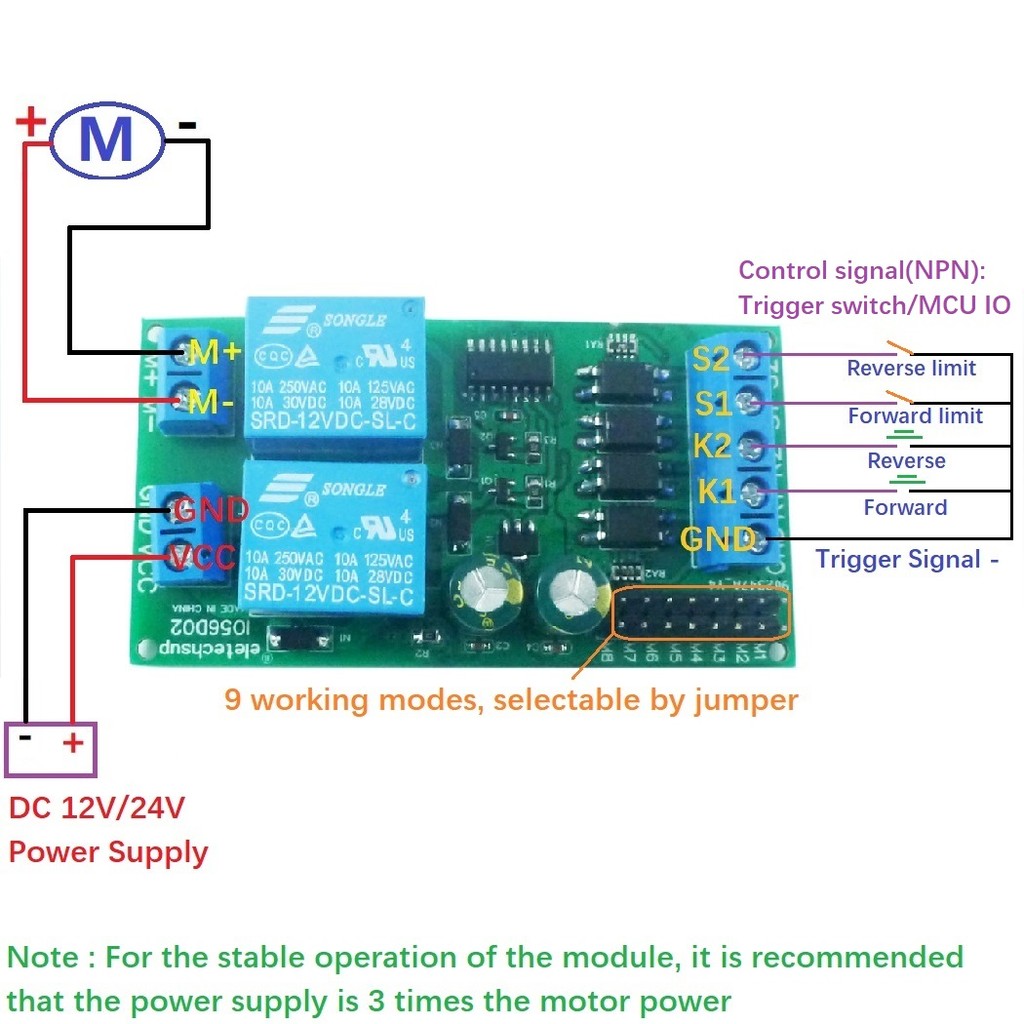

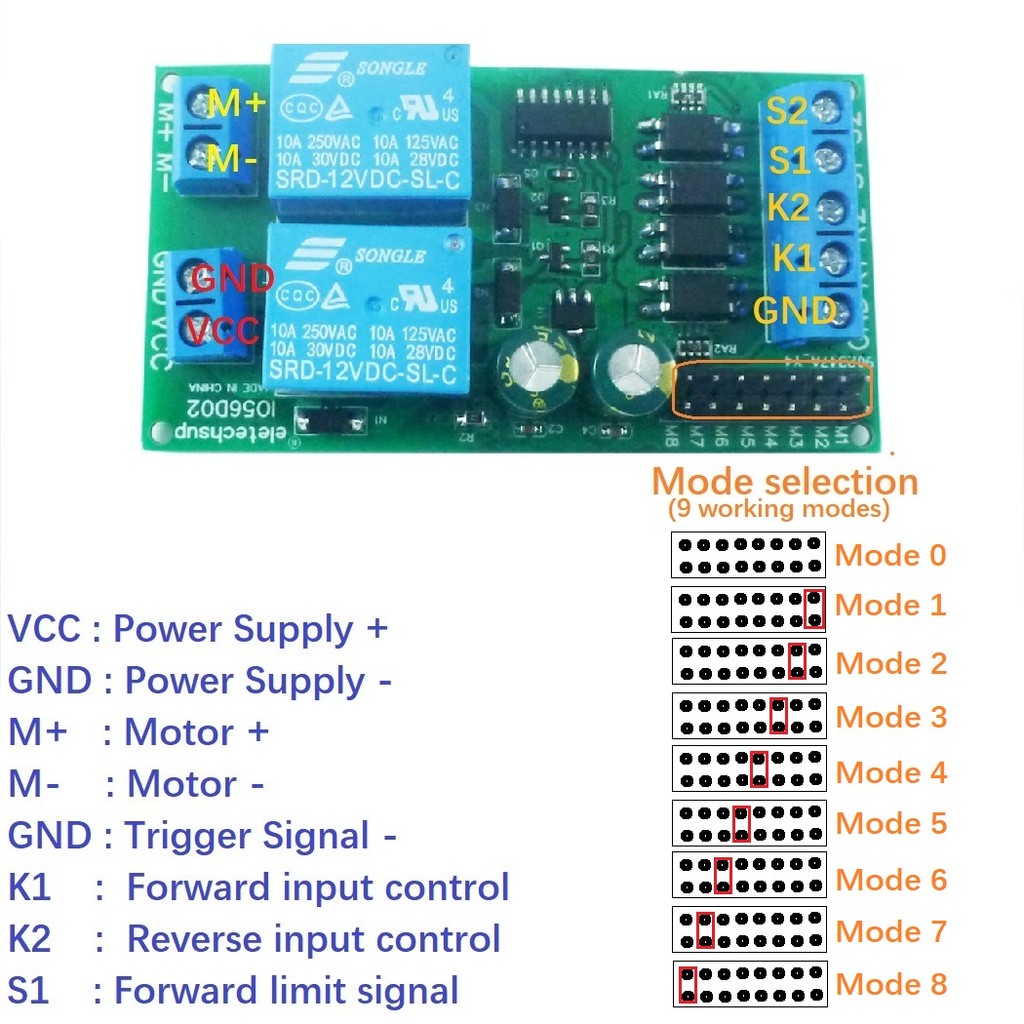

Product parameters:1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC power supply power motor load x3);2 Applicable motor: brushed DC motor;3 Maximum load current: 4.5A(For larger current please click here:click here);4 Signal input: active low (NPN);5 Working modes: 9 optional modes, including momentary, self-locking, etc.;6 Working current (excluding motor): Quiescent Current: 4MA, Forward or Reverse working current: 40MA7 Size: 75*40*19mm;8 Weight: 37.6 grams.Pin DescriptionVCC : Power Supply +GND : Power Supply -M+ : Motor +M- : Motor -GND : Trigger Signal -K1 : Forward input controlK2 : Reverse input controlS1 : Forward limit signalS2 : Reverse limit signal
