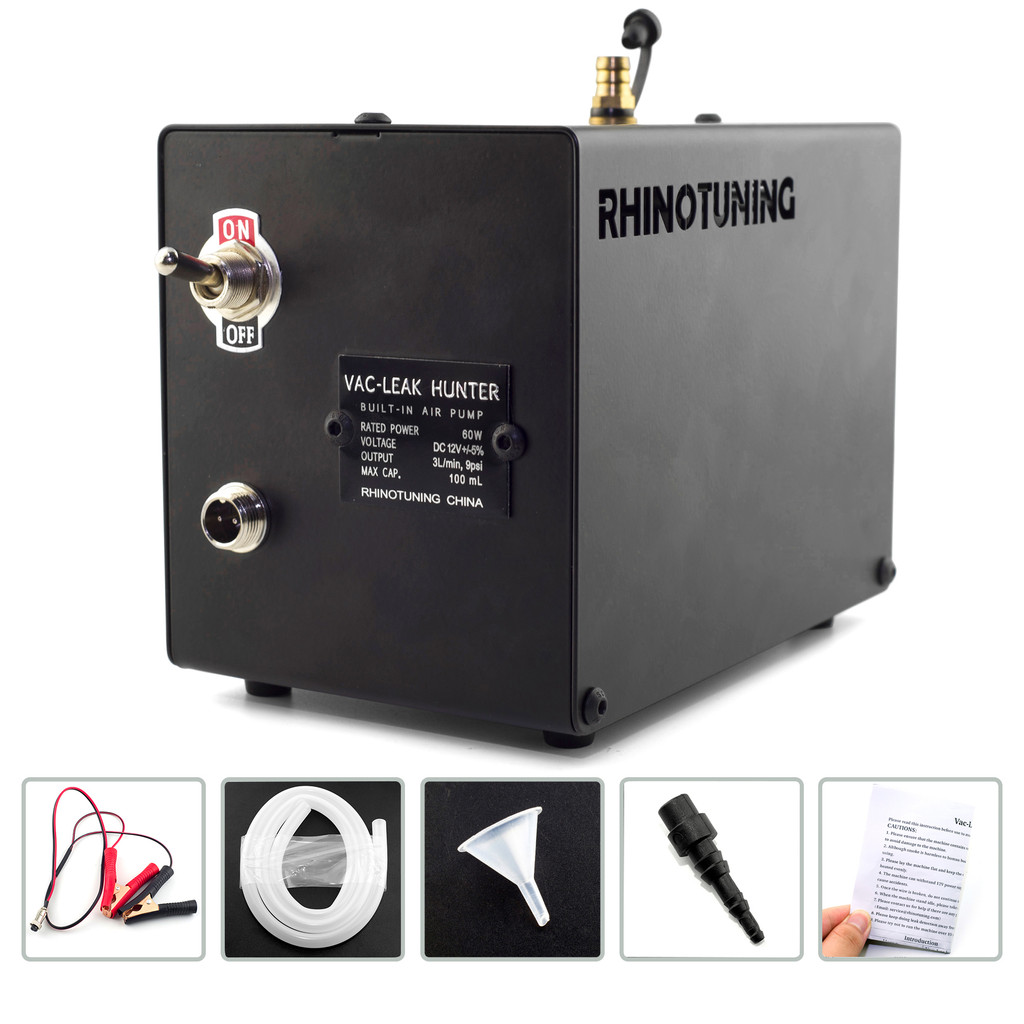

~C F Car Smoke Generator 12V Leak Detector For Vacuum Universal Automotive Pipe System Testes R

The Main Function
Intake System Test: it can test the air tightness and damage degree of the pipes in the intake system.
Exhaust System Test: it can test the air tightness and damage degree of the pipes in the exhaust system.
Crankcase System Test
Intake System Test
Car Sealing Test
Fuel Tank System Test
Exhaust System Test
Various Pipe Fittings Tes
OVERHEAT & ANTI-FROST PROTECTION
1,Overheat Protection:When the temperature of the device exceeds 75,power protection will be intelligently activated to turn it off.
2,Anti-frost Protection:The device can also work normally at -20
[Wide Range Of Applications]
For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.Works on all car makes and models.

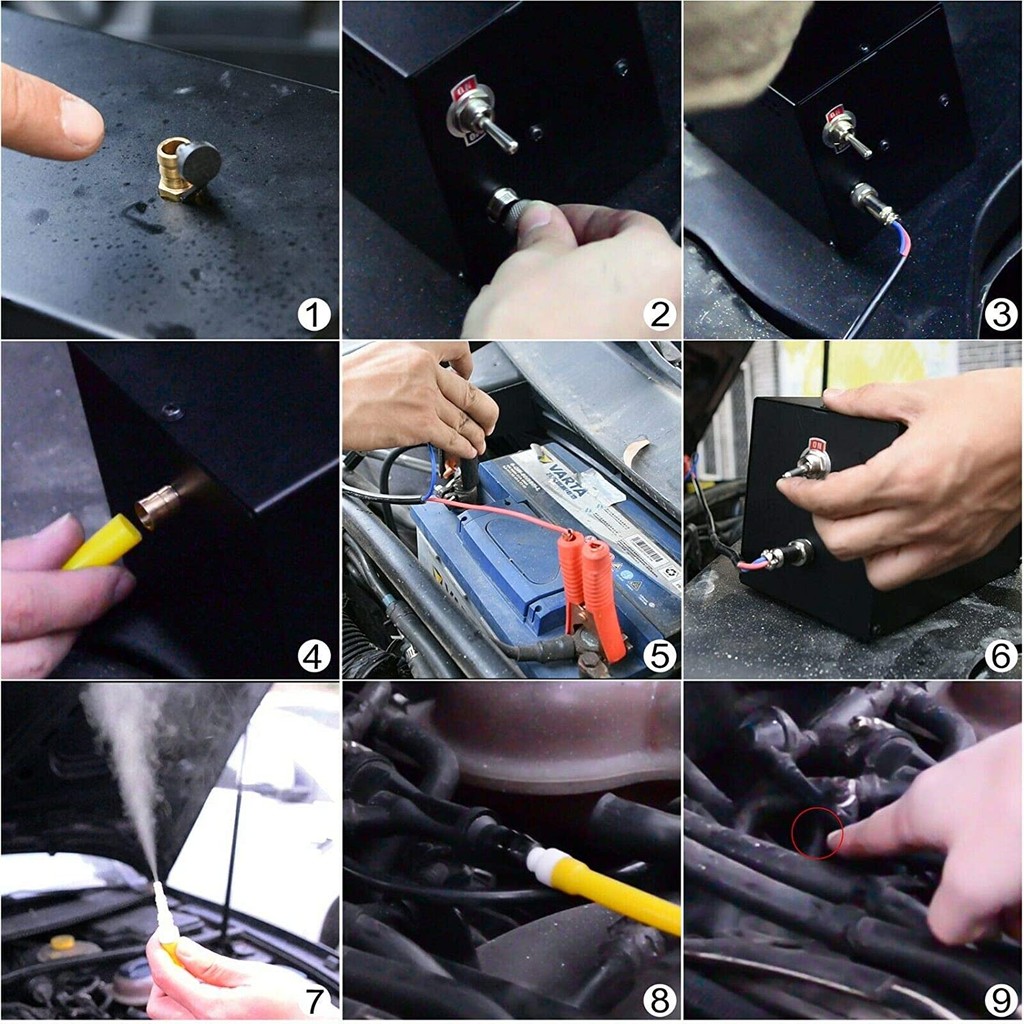

Steps To Use The Fog Machine
1. Fill 20ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.
2. Disconnect the pipe that needs to be connected with detector.
3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work.
4. In about 8 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.
Caution
1.When you use this C F Car Smoke Leak Detector for the first time, fill with 20ml oil . Please be careful NOT to beyond this range.
2.The testing liquid : baby oil
3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.
4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
5.During the process of leak detection, please keep away from smoke-sensitive parts.
6.Do NOT run the detector over 10 minutes continuously. It needs interval rest.
7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 , it will automatically turn off the power. In this case, please operate it later.
