BLE5.0 tpms sensor bluetooth tire pressure moni-toring tyre pressure and temperature TPMSII

Viecar BLE 5.0 TPMS design based on a new Bluetooth technology– Bluetooth 5.0(Bluetooth Low Energy) which has low product cost, Low power consumption and high stability. By installing sensor on the tire, data will be sent to Bluetooth 4.0/5.0 device (Android, iOS Phone and iPad), APP can display real time data like: Tire Pressure, Tire Temperature and send alert when either is abnormal.
-Product Specifications:
MCU: ARM M0
Working Voltage: 3V
Working Current: 100A
Standby Current: 1.5A
Bluetooth Working Frequency: 2.4GHz
Bluetooth Transmit Frequency: 0dBm MAX
Response Time: 5s
Display: APP
Ingress Protection Rating: IP67
Working Humidity: 95% MAX
Pressure Range: 100-1300kPa
Pressure Accuracy: ± 10kPa
Temperature Accuracy: ± 3
Working Temperature: -30 ~ +80 (Outer Sensor)
Working Temperature: -40 ~ +85 (Inner Sensor)
Storage Temperature: -30 ~ +85 (Outer Sensor)
Storage Temperature: -45 ~ +125 (Inner Sensor)
Battery Capacity: 140mAh (Outer Sensor)
Battery Capacity: 330mAh (Inner Sensor)
Battery Lifespan: 2-3 years (Outer Sensor)
Battery Lifespan: 3-5years (Inner Sensor)
Weight: 10g±1g (Inner Sensor)
Weight: 33g±1g(Outer Sensor)
– TPMS Benefits
Puncture Protection: Real time moni-tors pressure and temperature nip in the bud.
Save the Fuel: Keeping correct tire pressure, lower fuel consumption.
Less Treadwear: Insufficient pressure causes treadwear which shorten the tire life span.
-Smart Terminal (APP):
By using device with Bluetooth 5.0/4.0 (iPod5,iOS Phone4S/5 or iPad3/mini), car status can be moni-tors in real-time. View each tire pressure and temperature easily.
-APP Feature:
Fast Leakage Alert: Pressure leakage above 5Kpa within 5 seconds, Fast Leakage Alert's ON and “Leakage” icon appears.
High Pressure Alert: Pressure value's even higher than highest configured pressure limit, “High Pressure Alert's ON.
Low Pressure Alert: Pressure value's even lower than lowest configured pressure limit, “Low Pressure Alert's ON.
High Temperature Alert: Temperature value's even higher than Highest configured temperature limit, “High temperature Alert's ON.
No Signal Alert: No signal accepted for a while, No Signal Alert's ON.
Low Battery Alert: Battery voltage's lower than configured value, Low Battery Alert's ON.
-Packing List

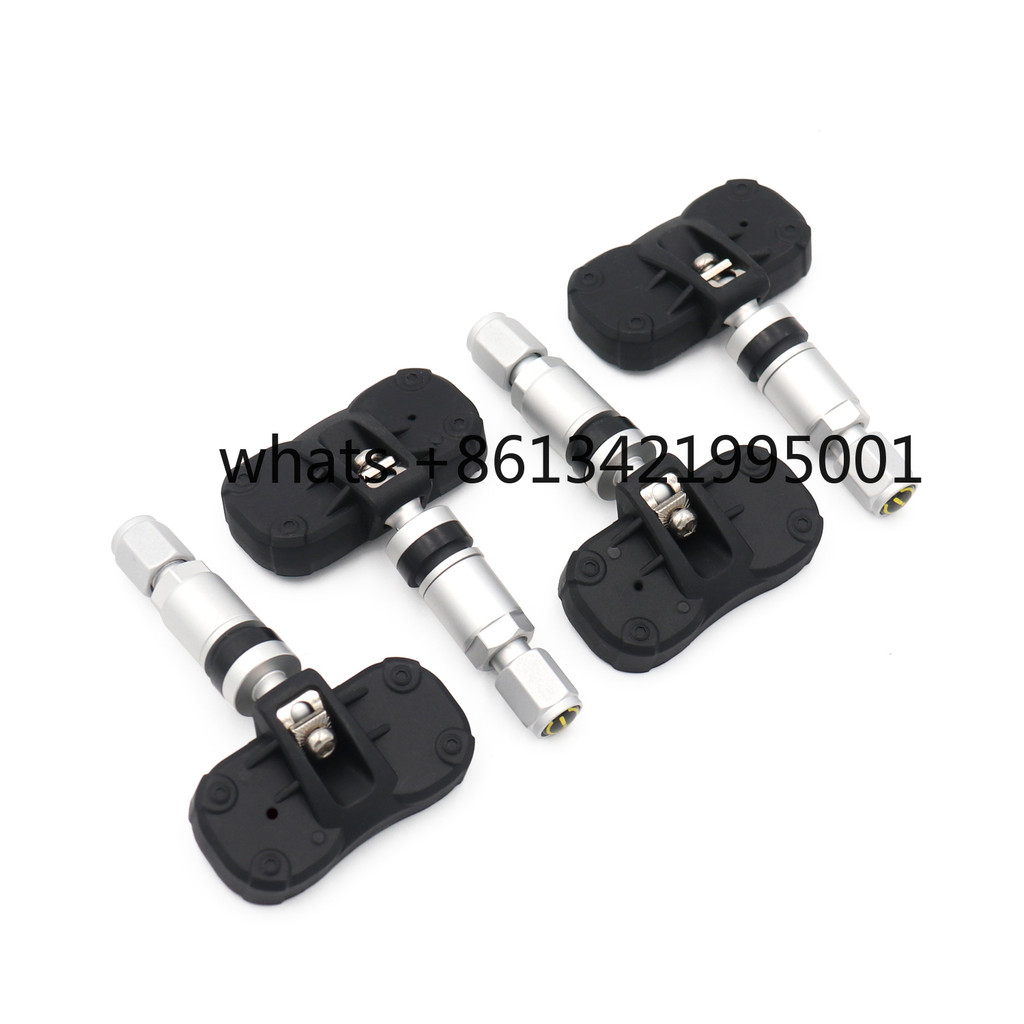

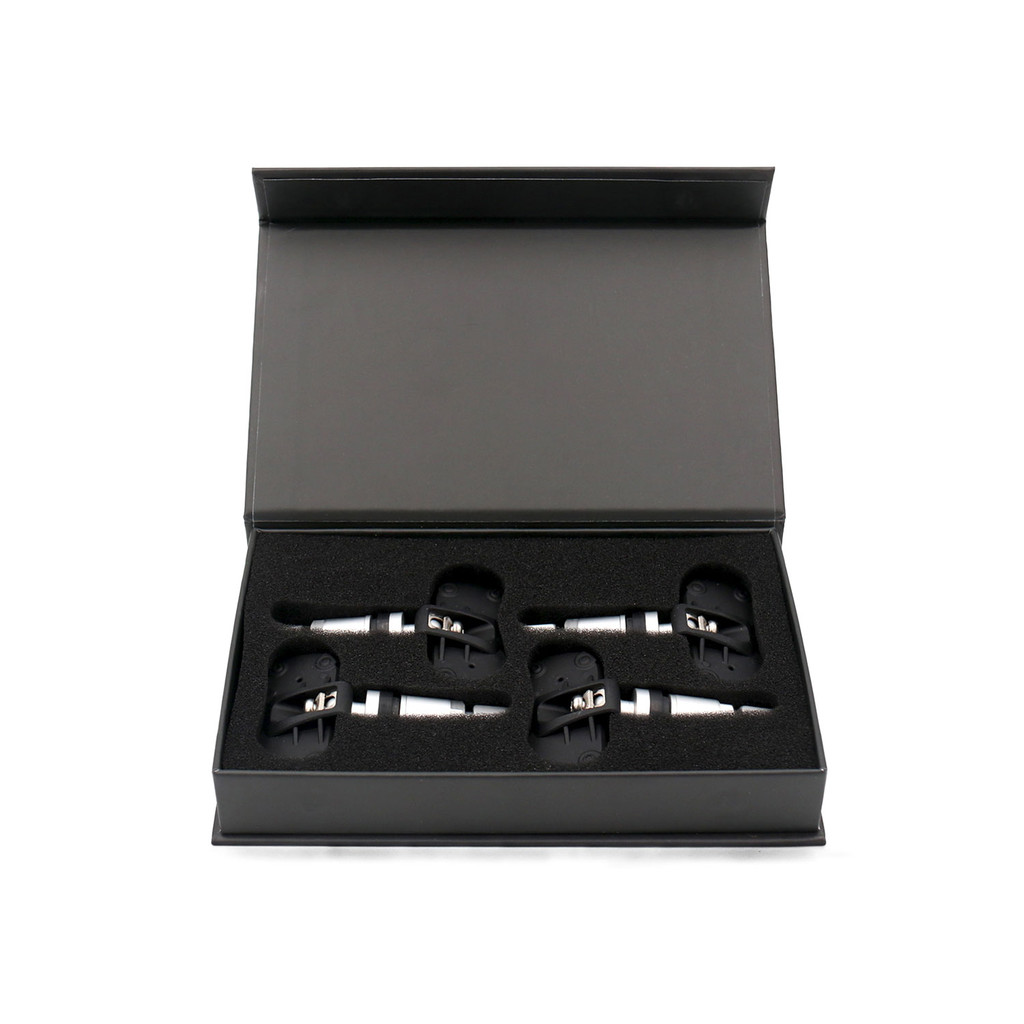

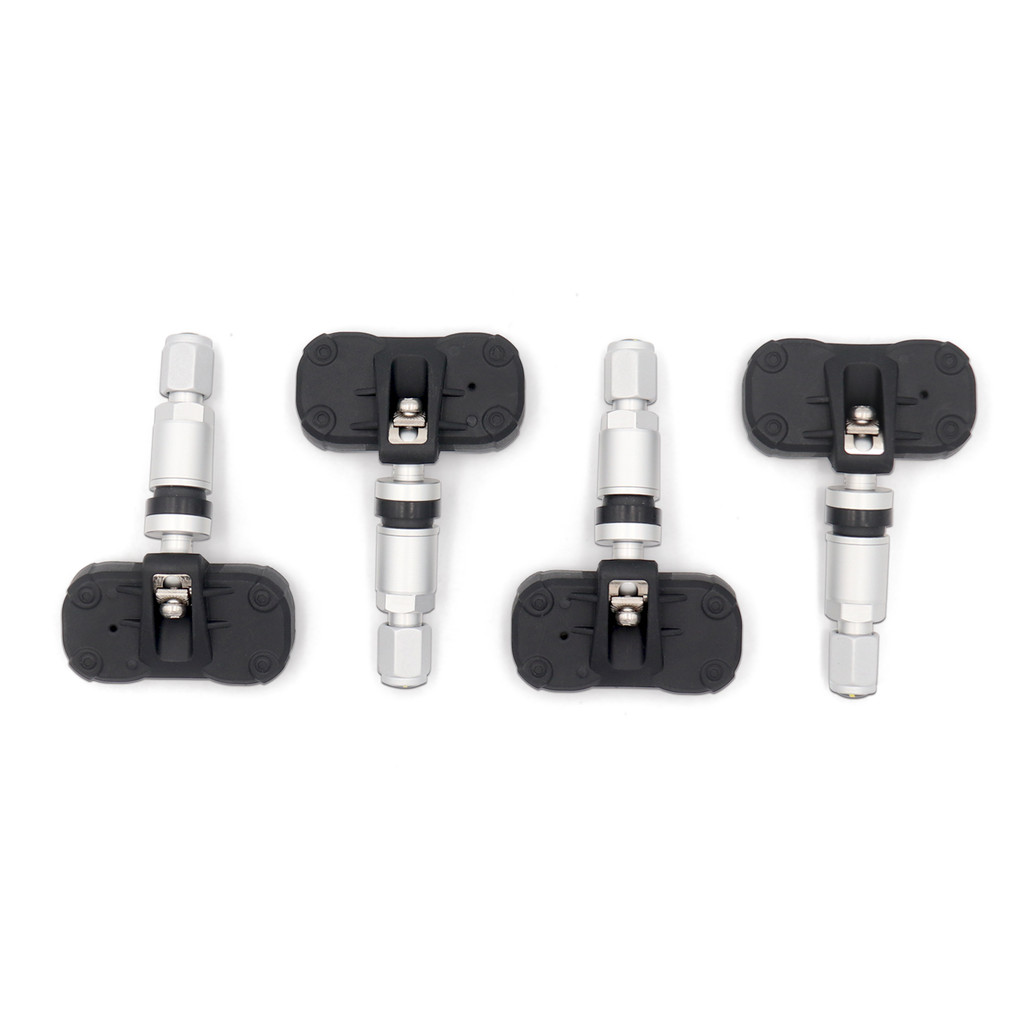

4*inner Sensor
1*Manual
Packing:
BOX packing with brown master carton outside. (Or per client's request)
Due to the facts that our model tress are very light in weight & packing may very depending on quantity of orders & destination. specific packaging can be made to order.
Shipping:
1. For small order, products will be shipped with 1-3 working days. For OEM/ODM order, please check the shipping time with us.
2. We can send out goods by express (UPS/DHL/TNT/FEDEX), by air, by sea. Or to your shipping agent/forwarder.
Our customer decides the way for delivery. We always get cheapest freight from forwarder for our customers.
Payment Terms:
We accept Alibaba Trade Assurance, Paypal, West Union, T/T and Bank
