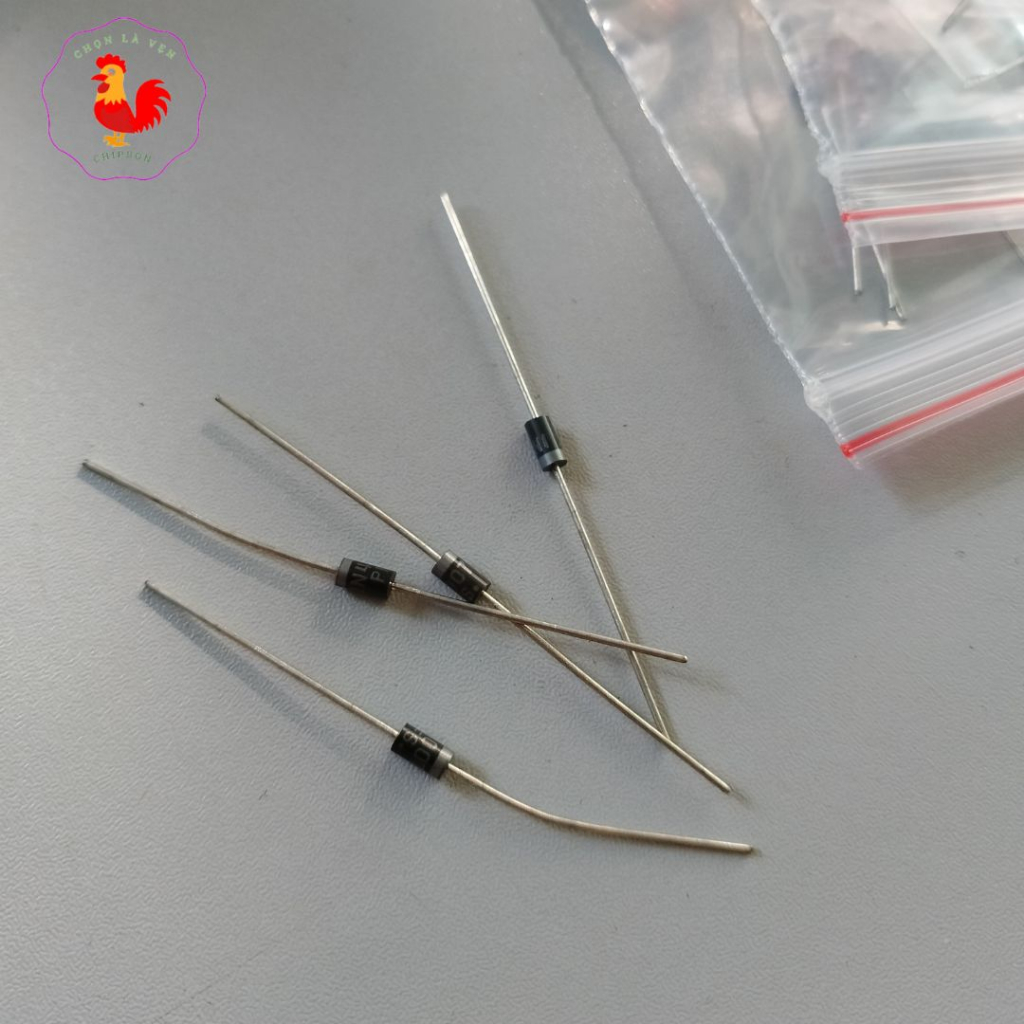

B 4 con Diode 1N4007 1A 1000V

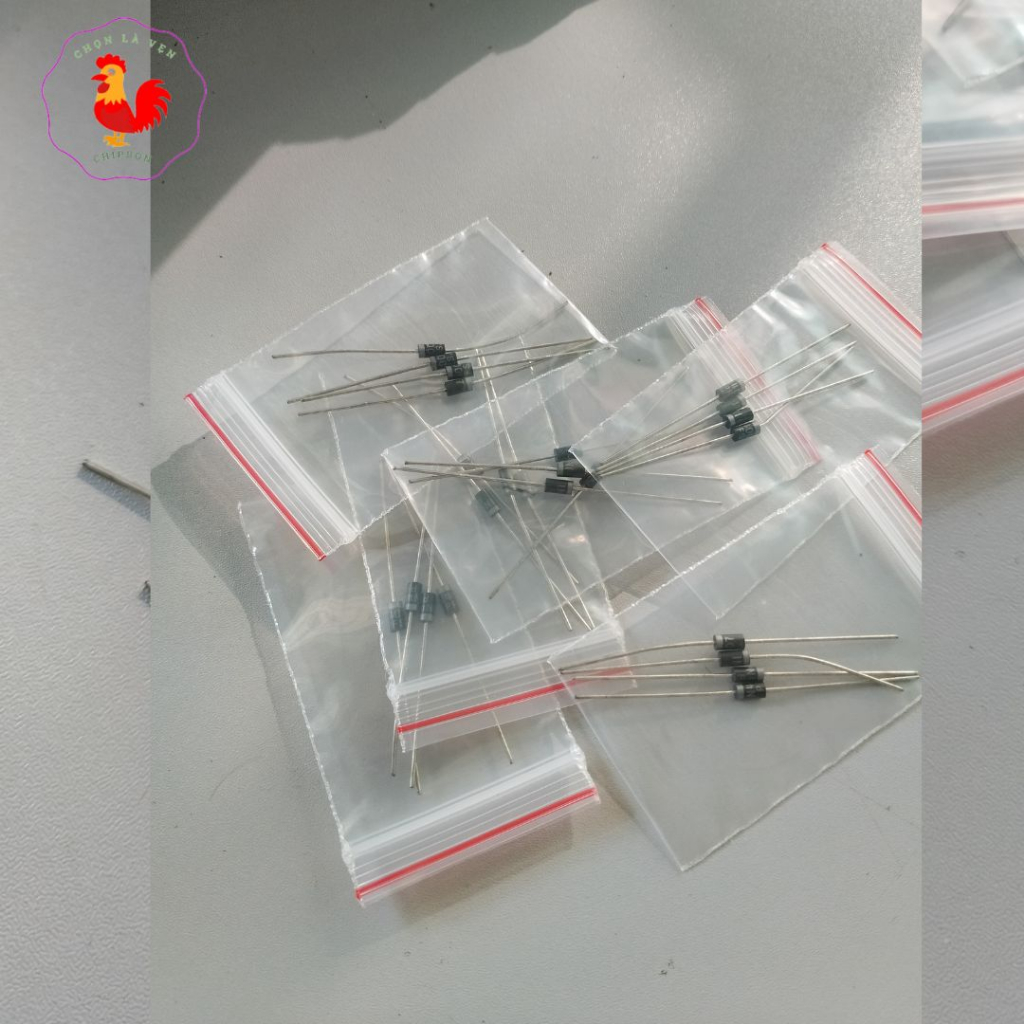

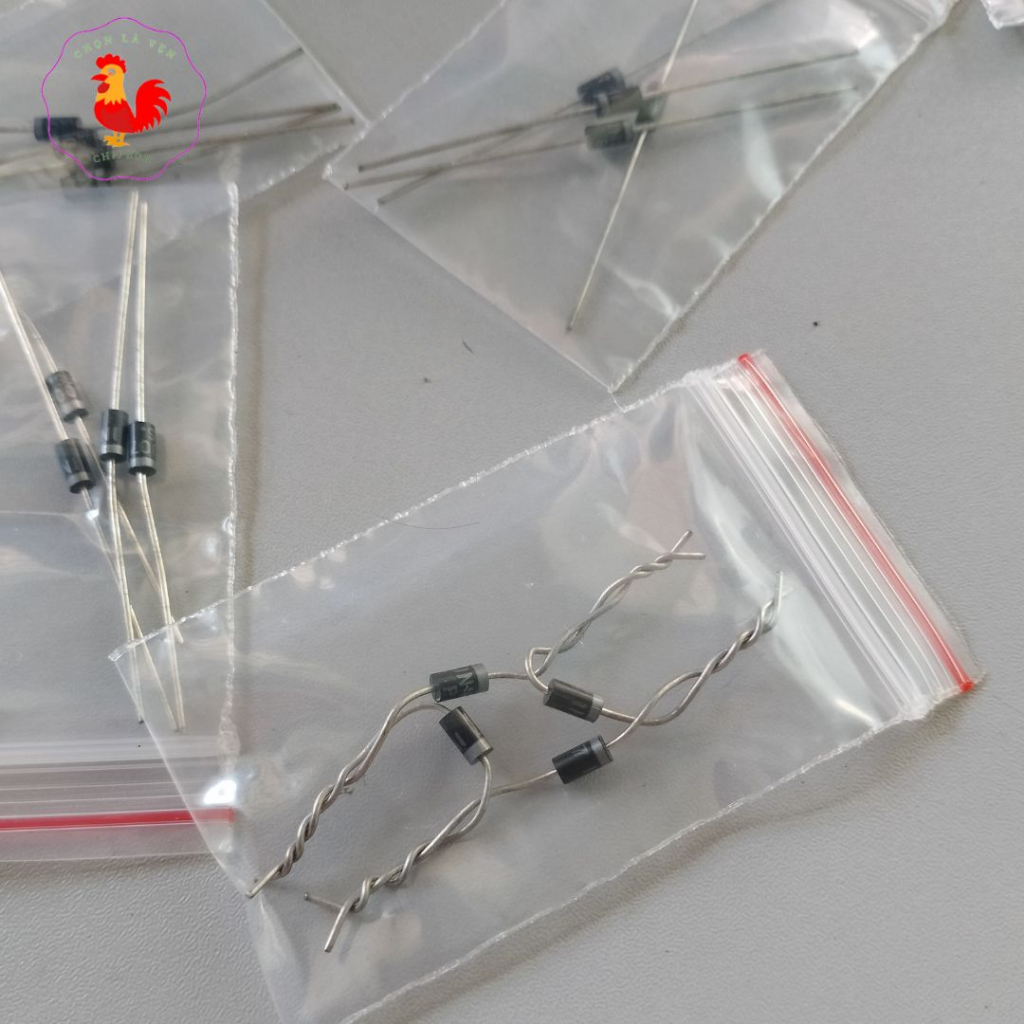

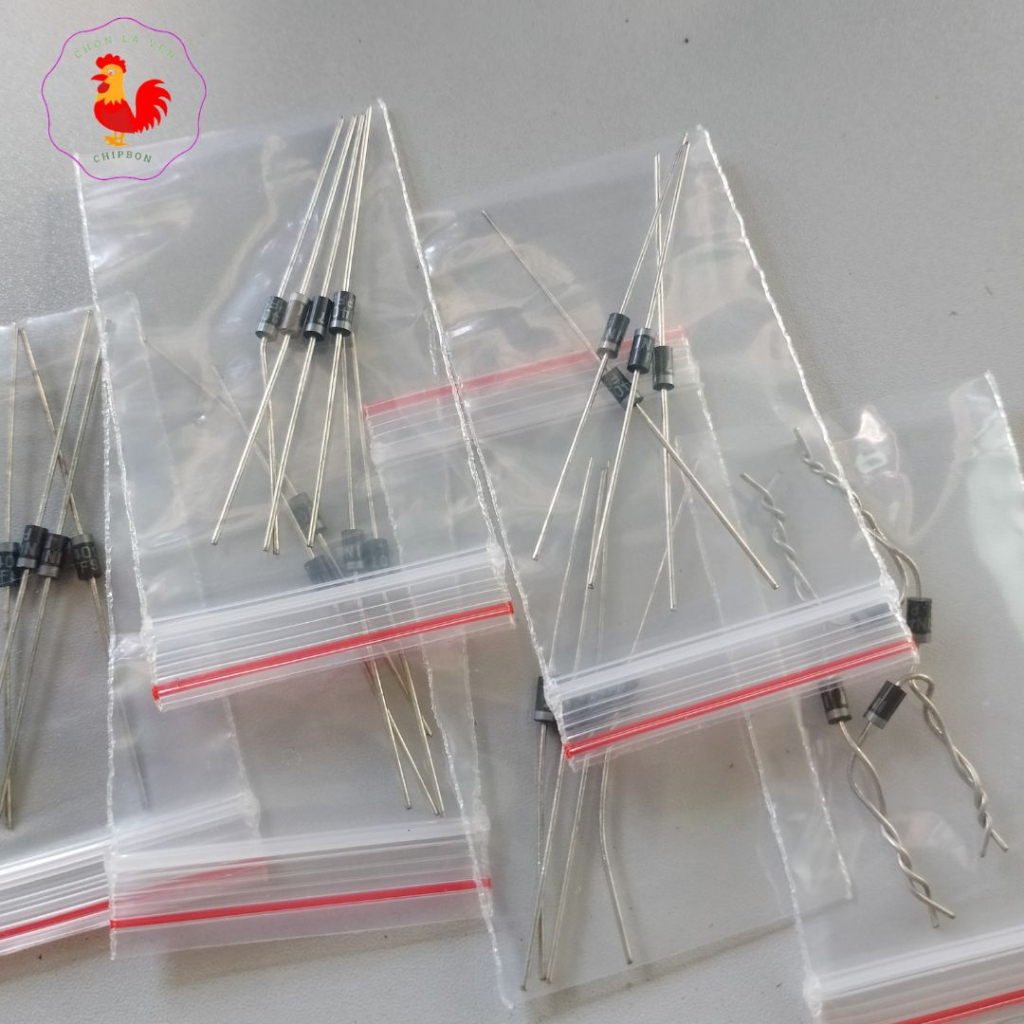

Set Of 4 Diode 1N4007 1A 1000V
Diode 1N4007 1A 1000V includes 1 type P semiconductor block paired with 1 N semiconductor block, connected to two output pins: anode and cathode.
Type P semiconductor block contains many free charge holes. When paired, the holes tend to diffuse to block N, while free charges (bring negative charge) tend to diffuse to block P. As a result, the P block charges negatively and the N block charges positively.

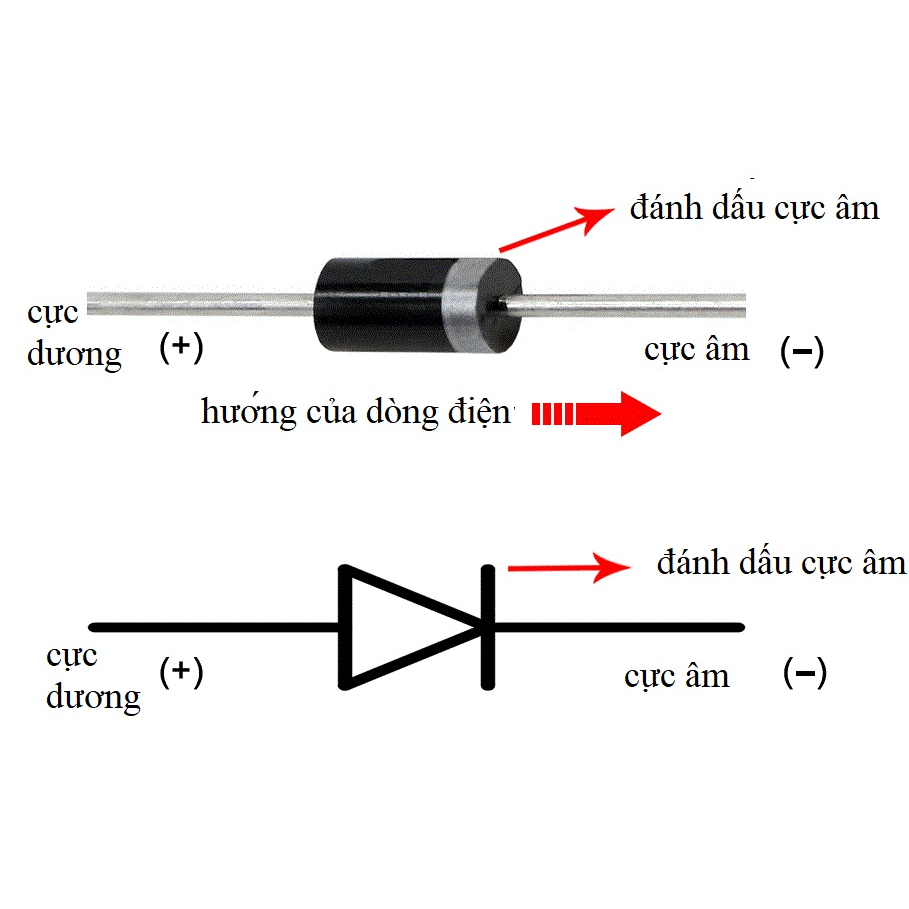

Diode guides electricity in the direction from anode to cathode. That is, when we put the positive electrode at the top of the p, the negative terminal into the n end, we will have a polarized voltage, the diode will let the current pass through normally.
When we put the anode on the n end, the negative terminal to the p head, we will have reverse polarity voltage, the diode will not let the current pass.
Application:
Diode 1N4007 1A 1000V is a very popular rectifier diode in basic electronic circuits.
The most important function of DIODE 1N4007 1A 1000V is to rectify from alternating current to 1-way current.
Diode 1N4007 1A 1000V is also used to limit current.

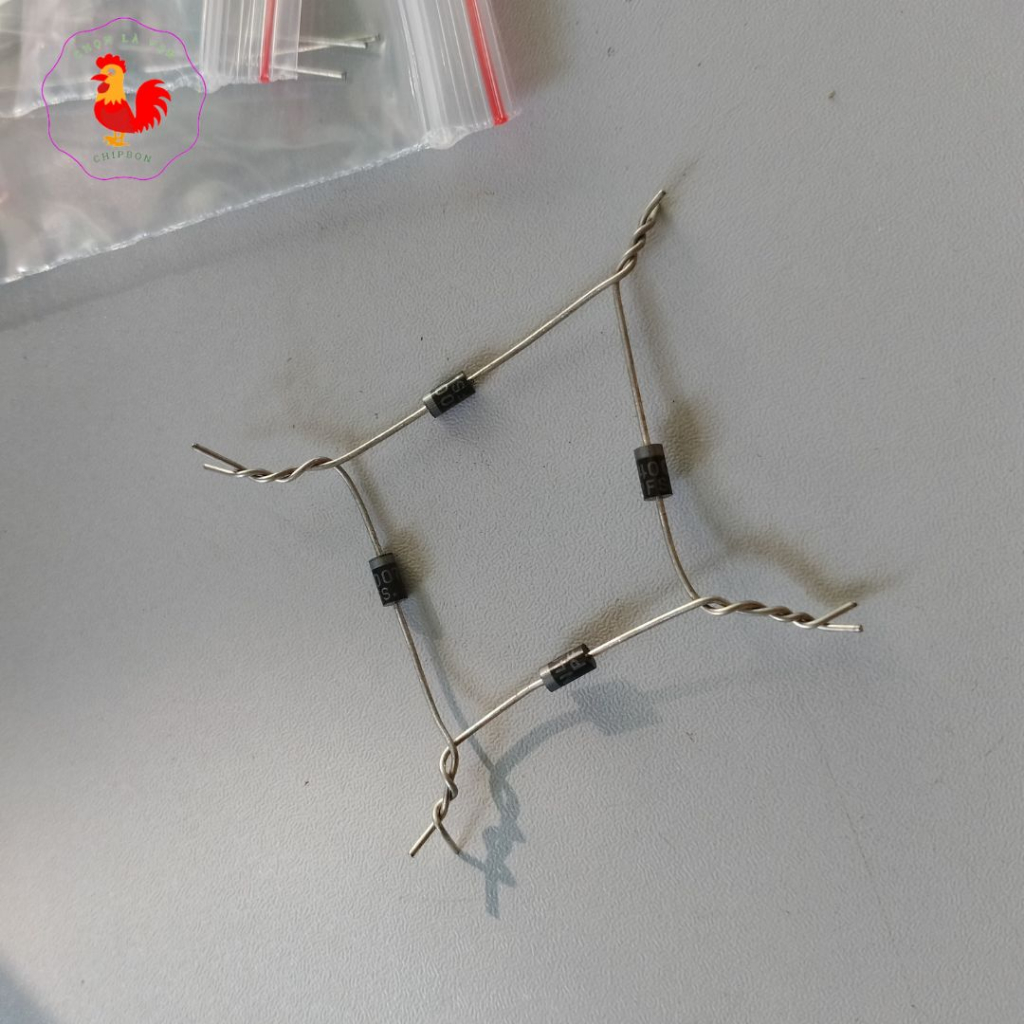

In addition, 4 1N4007 diodes with bridges will create bridge diodes.

Parameter:
Pin: DO-41
Working voltage: Umax = 1000V
Maximum current: Imax = 1A
Thank YOU FOR REFERING PRODUCTS AT THE shop.
We commit to: Guarantee that the product is the same as the photo
