-Autel ForTesla Cable Set/ Diagnostic Cables forTesla S&Tesla X Vehicle Models Work with Autel M Z

Autel diagnostic cables for Tesla S & Tesla X vehicle models, enables Autel MaxiSYS 909, 919, or 908SPro, Elite, Elite II, Ultra tablets to connect with Tesla S & Tesla X vehicles so as to activate factory mode and perform system diagnoses.

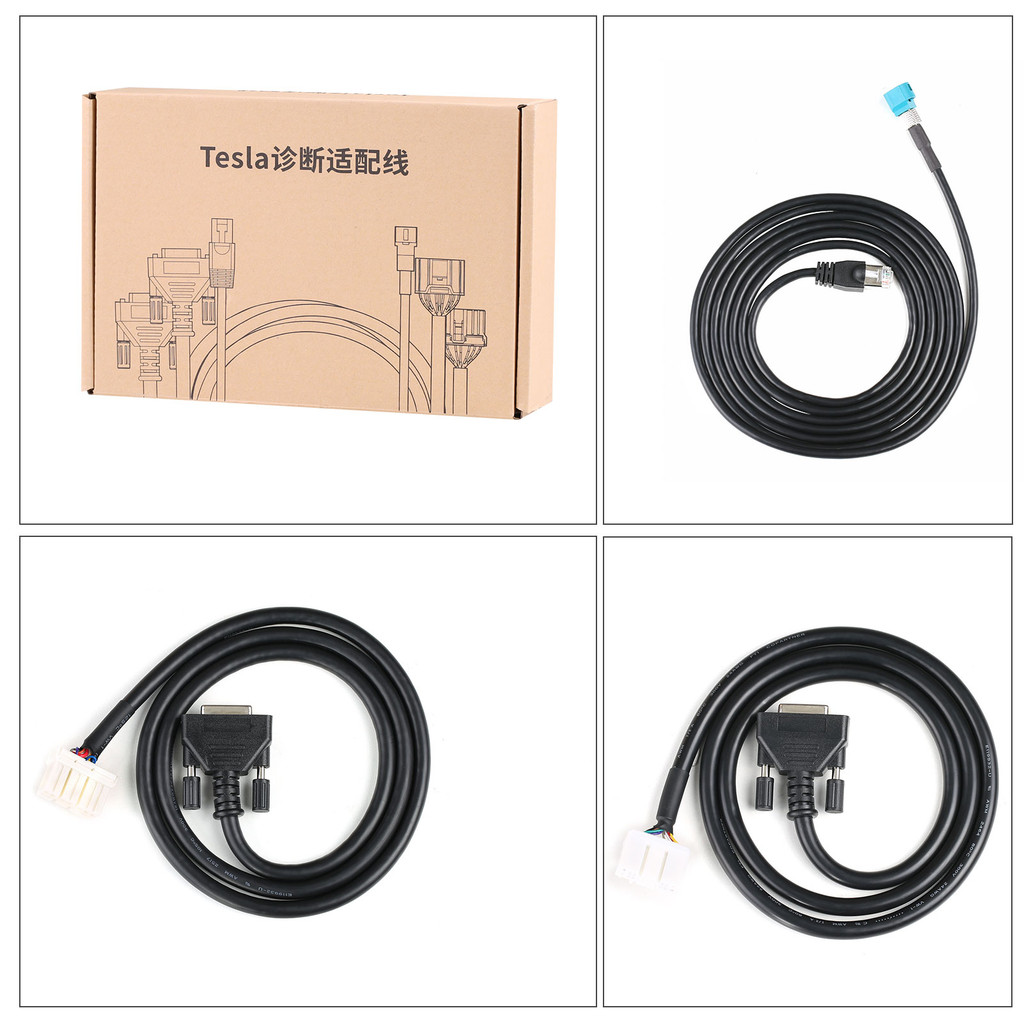

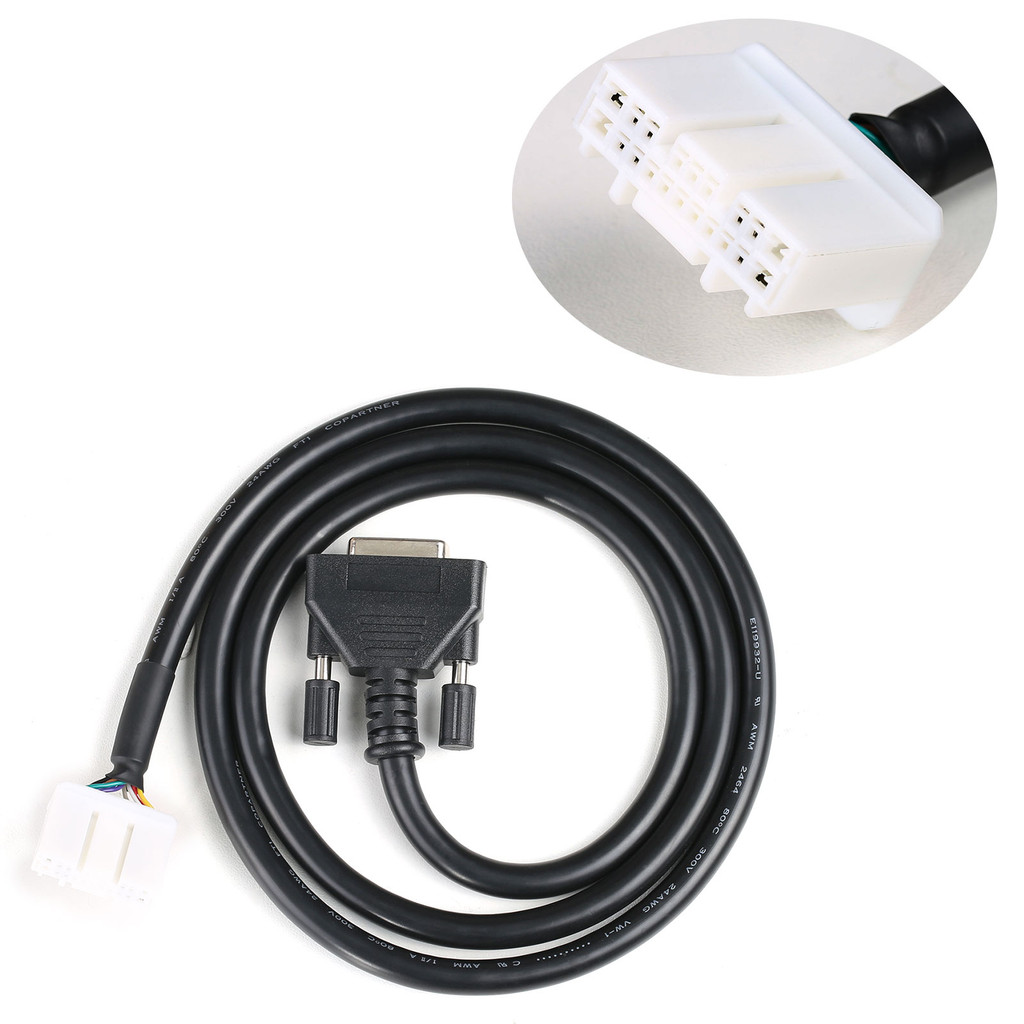

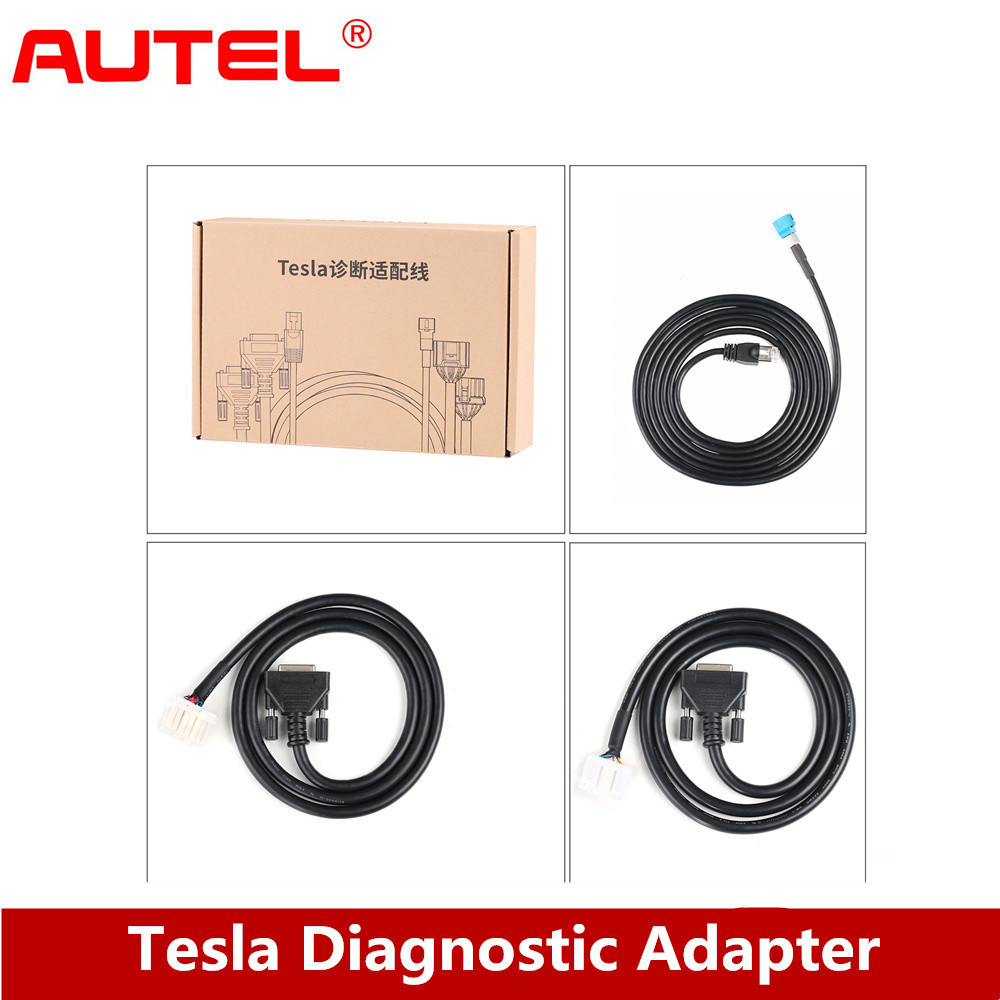

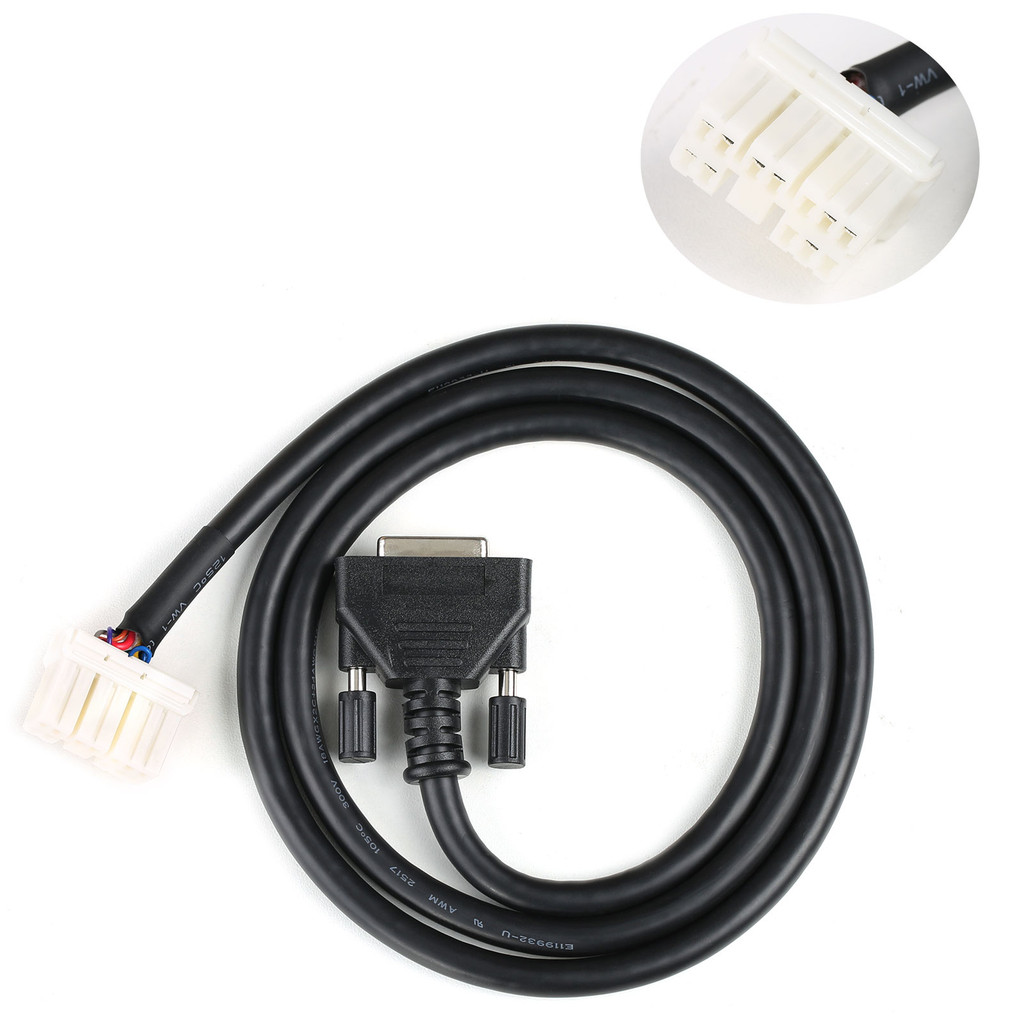

Autel Tesla cable set includes three cables: TLAN001, TCAN001 and TCAN002.
Product Functions:
Adapter Cable
Supported Model
Model Year
Connection Port
Connection Port Location
Function
TLAN001
ModelS/Model X
All
X861
On the back of the instrument cluster
Activate Factory Mode
TCAN001
After Sep 2015
X863
Below the central control screen
Perform DiagnosesFor LAN Related Systems
Before Sep 2015
On the left side of the Instrument Cluster
TCAN002
After Sep 2015
X437
Below the central control screen
Perform DiagnosesFor CAN Related Systems
Before Sep 2015

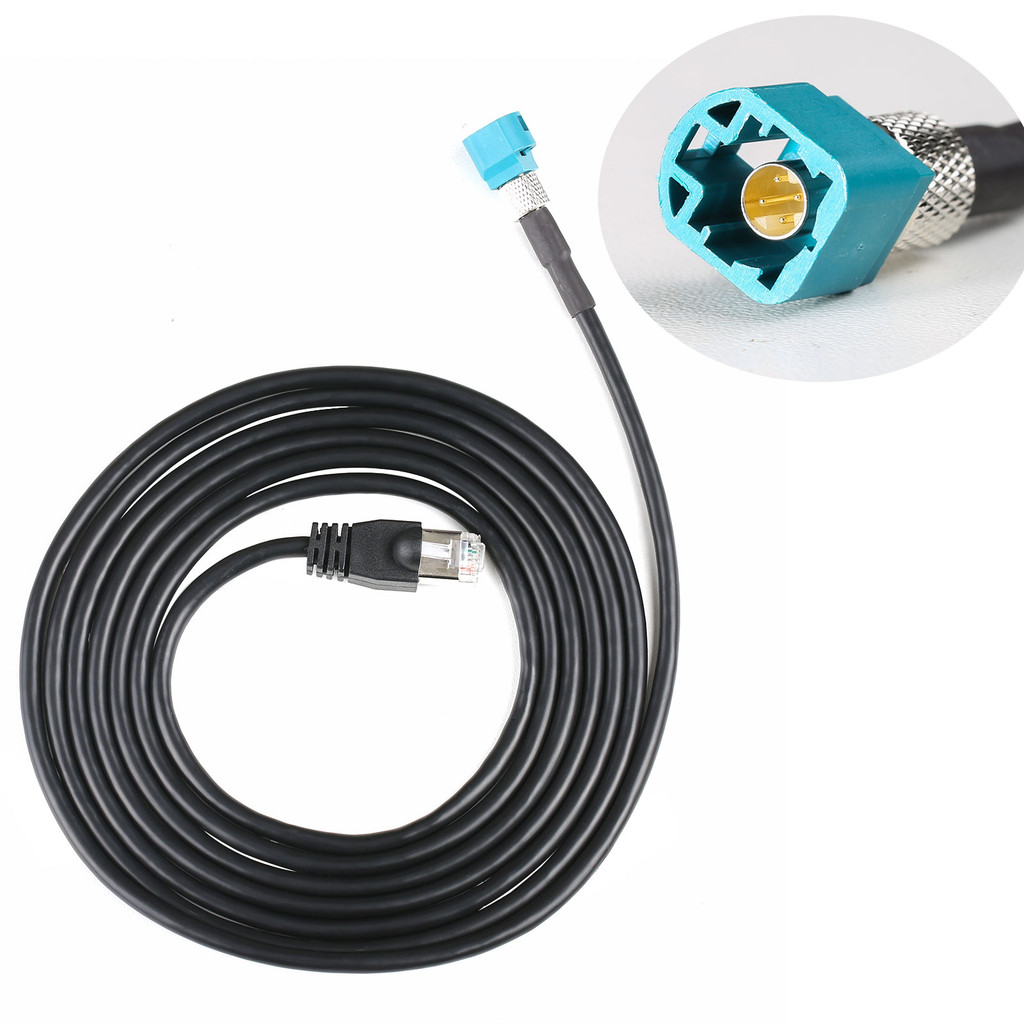

LAN001 – Connects to Tesla port X861 (located behind the instrument cluster) to activate factory mode (instrument cluster must be disassembled)
