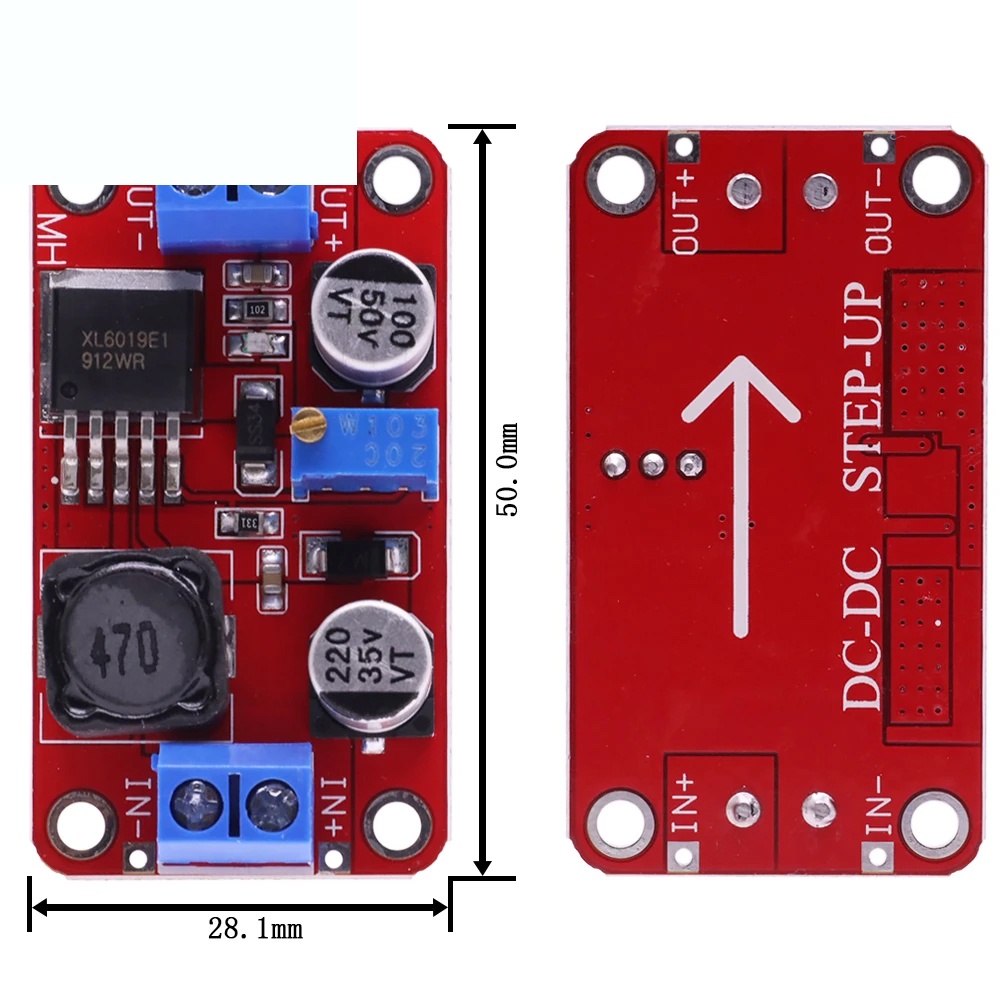

5A DC-DC Step Up Power Module Boost Volt Converter 3.3V-35V To 5V 6V 9V 12V 24V XL6019 adjustable output regulator

Name: 5A DC-DC Step Up Power Module Boost Volt Converter 3.3V-35V To 5V 6V 9V 12V 24V XL6019 adjustable output regulator - Serenity Bliss
Price: 80.00 PHP
Availability: InStock

Original price was: ₱118.00.Current price is: ₱80.00.

Buy Now

Added to wishlistRemoved from wishlist 0

Add to compare

Categories: Home & Living, Others

Description
Reviews (0)

Specification:

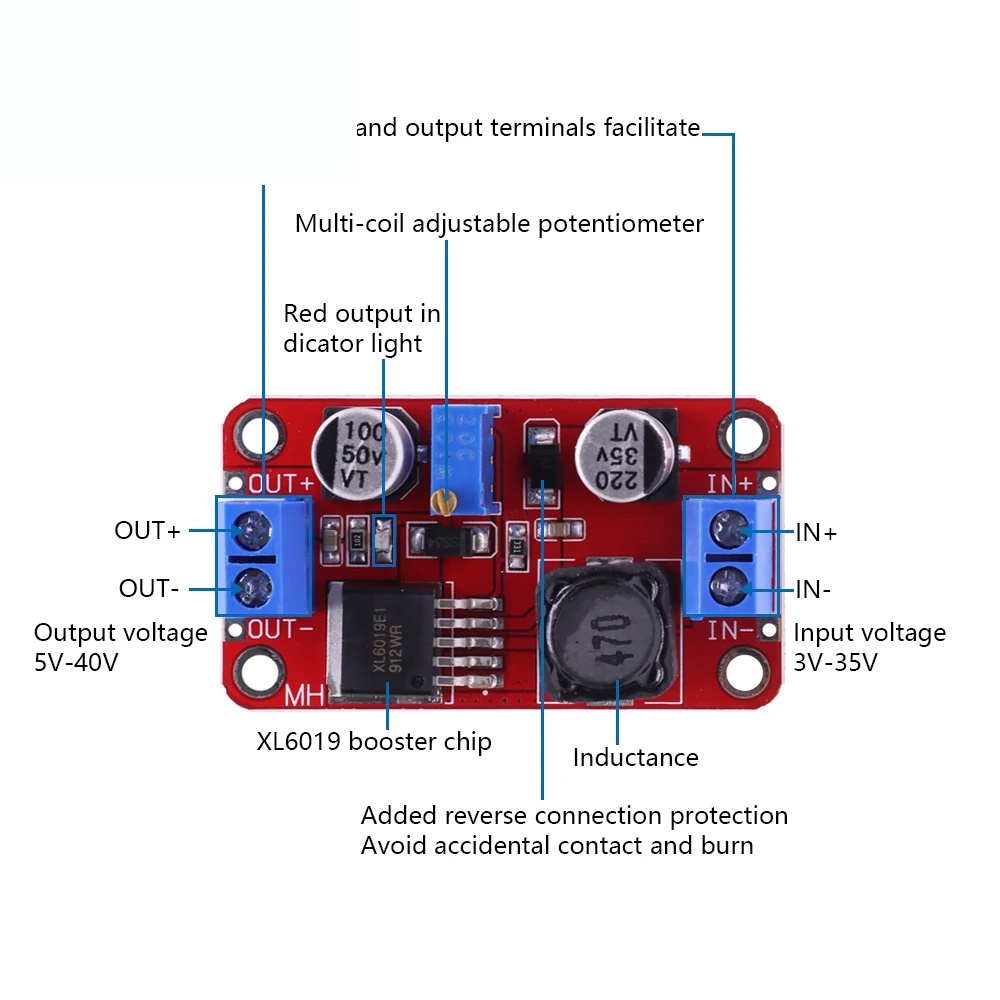

1.Module feature:XL6019 step up module
2.Module type:Non-isolated boost
3.Rectification method:Non-synchonous rectfication
4.Input voltage:3V-35V
5.Output voltage:5V-40V(notes can not step down voltage)
6.Input current:3A(maximum 5A)
7.Transfer efficiency:94%(The highest)Normal efficiency for 85%
8.Switching frequency:220KHz
9.Output ripple:<100mV 10.Load regulation:+-0.5% 11.Voltage regulation:+-0.5% 12.Operating temperature:-20°~+85° 13.Size:5cmx2.8cmx1.2cm(2.28"x1.10"x0.47")
