433 MHz AC 110V 220V 10A Wireless 1/2/3 Gang Push Button Switch For Family Lighting Smart Home

Attention Please:

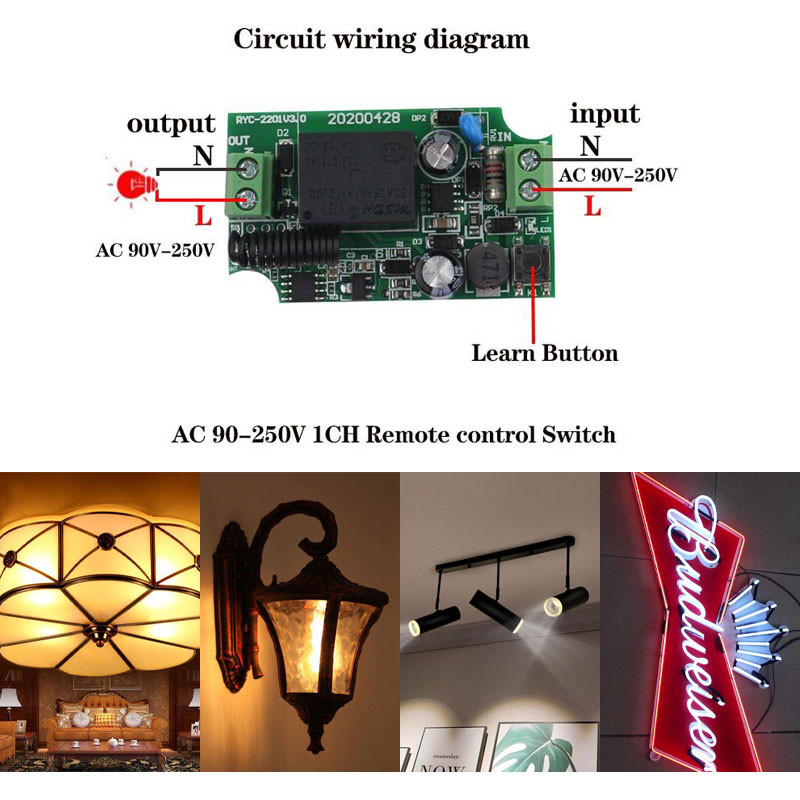

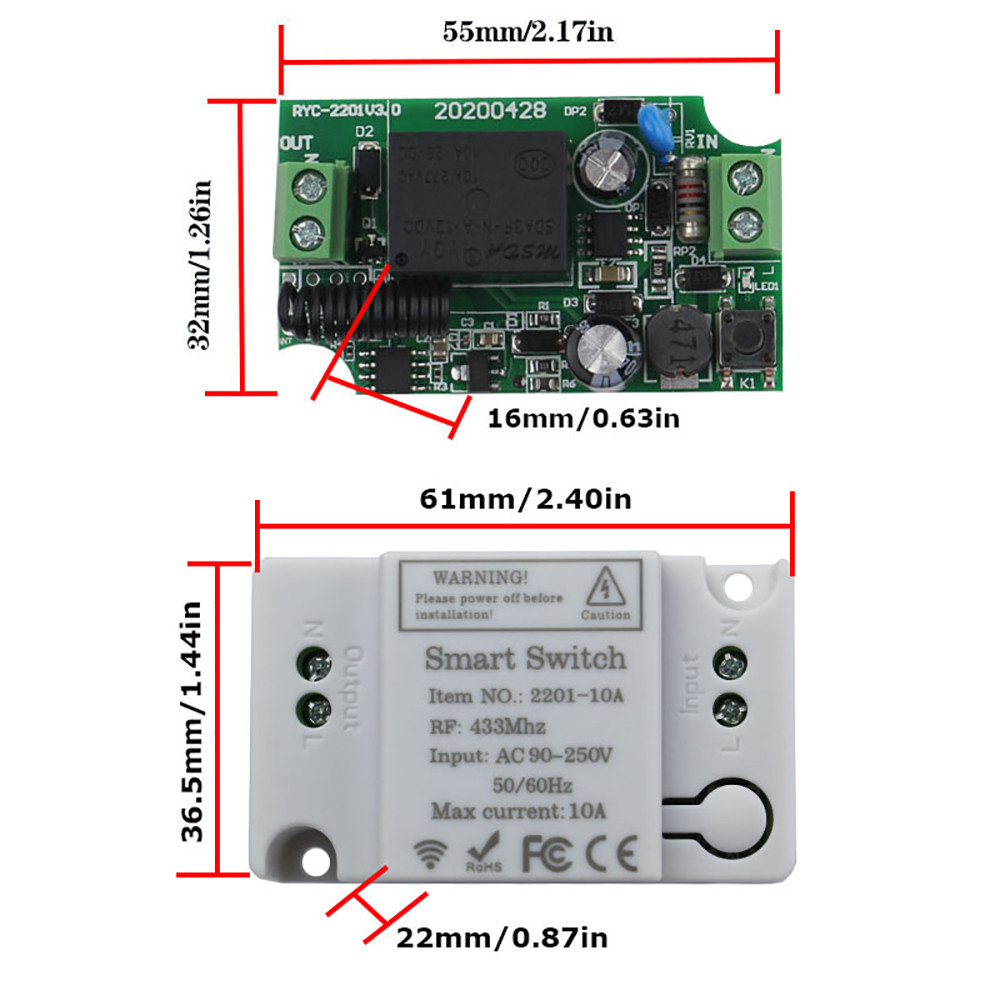

Technical Data Of  Receiver:Input Power:AC90-250VStandby Current:<5MARF Frequency: 433MRF working mode:superheterodyneReceive sensitivity: >-108dbmTransmitting distance:>50m ( open space)Decoding mode:MCU software decodingRemote storage:20pcsSupport remote type:EV1527 Learning code, Fixed codeWorking mode:Momentary, Toggle, LatchingAutomatic energize when power on modeWiring type:fixed terminalOutput Te Wiring type rminal :NO , NC , COMDimension of PCB:55*32mm  (L,W)

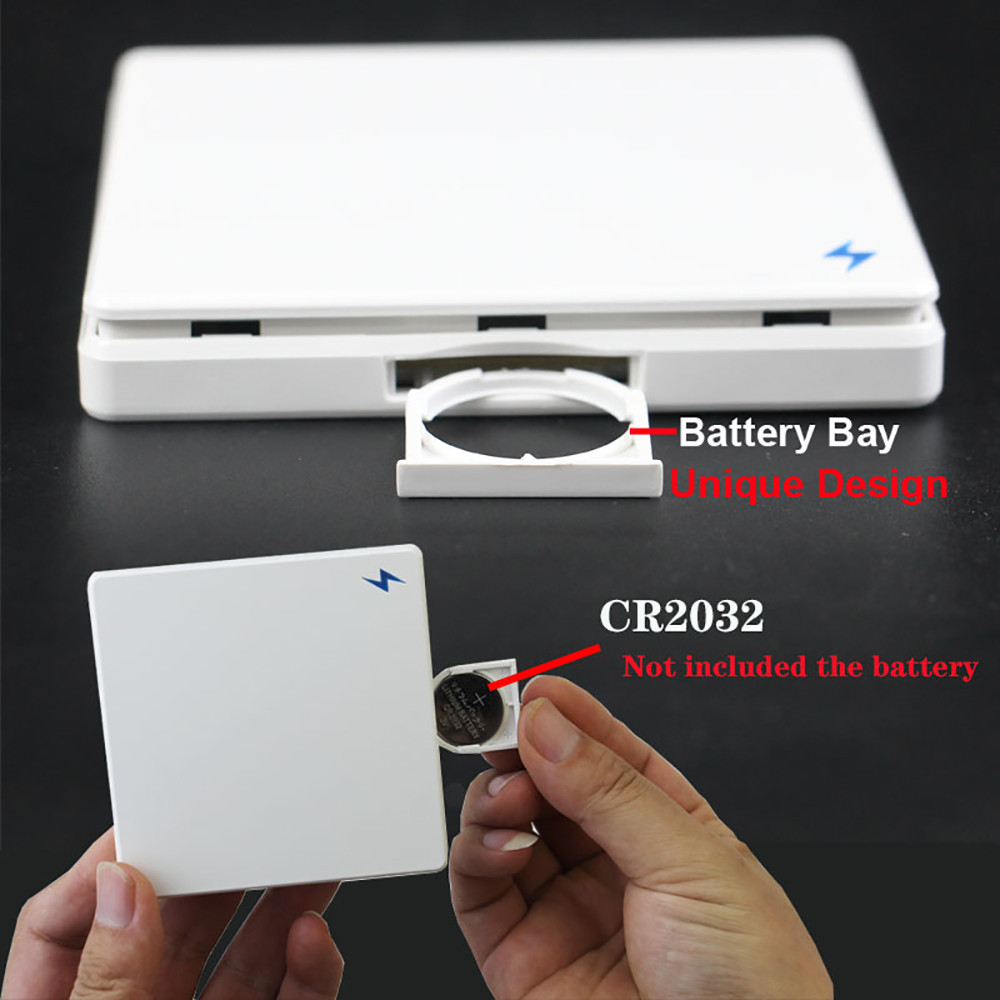

Specifications Of The Remote Control:Operating Frequency: 433MHz.Battery Model: CR2032 Alkaline Battery (Package Not Included Battery).Material: HDPE(Type2) Plastic.Coding Specification: 1527.Distance: Indoor (20 Meters/65 Feets) , Outdoor (80 Meters/262 Feets).Color: White.Size(L/W/H): 86mm x 86mm x 13mm.Weight: 60g/2.1ounces.

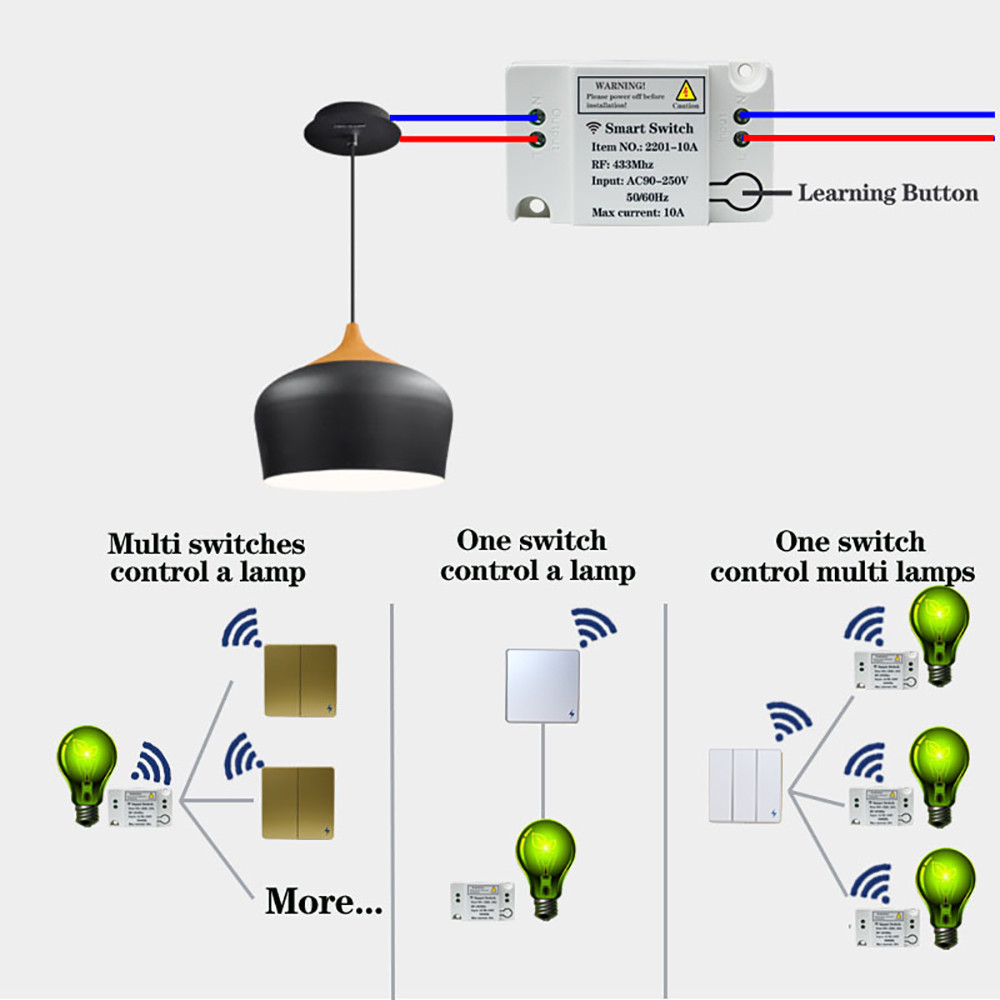

About receiver's Working mode1.Momentary mode:Push the remote button , the relay connects, release theremote button , the relay dis-connects.2.Toggle mode:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .3.Latching mode:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.4.Automatic energize when power on mode: when power supply, the relay connects.Receiver operating mode Settings1.Learning the code :(momentary)Push the learning key on the receiver once time ,it comes into momentary setting mode .Wait for a moment ,the LED will be on, it comes into learning state .Push the remote button ,LED indicator on the receiver board will flash 3 times and then come off ,learning successfully.2.Learning the code : ( Toggle )Push the learning key on the receiver twice time , it comes into toggle setting mode Wait for a moment ,the LED will beon , it comes into learning state .Push the remote button ,LED indicator on the receiver board will flash 3 times and then come off, learning successfully .3.Learning the code 🙁 Latching )Note: When you choose for latching mode ,in order to learnmore remote control ,you need to learn two different button,the first time learnt is for “ON”, the second time learnt for “OFF”.For example : button A = ON , button B = OFF ,Push the learning key on the receiver triple time , it comes intolatching mode .Wait for a moment , the LED indicator on thereceiver board will be on,Push the remote button A,LED flash for 3 times .Push the remote button B .LED indicator flash for 3 times and then come off, learning successfully .4.Learning the code : (Automatic energize whenpower)Push the learning key on the receiver eight times , it comes into setting mode Wait for a moment , the LED will be on , it comes into learning state .Push the remotebutton,LED indicator on the receiver board will flash 3 times and then come off, learning successfully .NOTE: The system can store for 20 pcs of remotes , if the remote get more than 20 pcs , the initial remote control will be lost .Clearing the code :Push the learning button on the receivers for 9
