1PC 12V Electric Car Sual-use Jack 5T Level Super Power Universal Torque Wrench Easy To Change

1PC 12V Electric Car Sual-use Jack 5T Level Super Power Universal
Torque Wrench Easy To Change Tires Portable Tools
If you have anything else to understand, please contact us and we will answer you carefully.
Product display
Product parameters
Name: Electric jack wrench combination package
Weight: 10kg

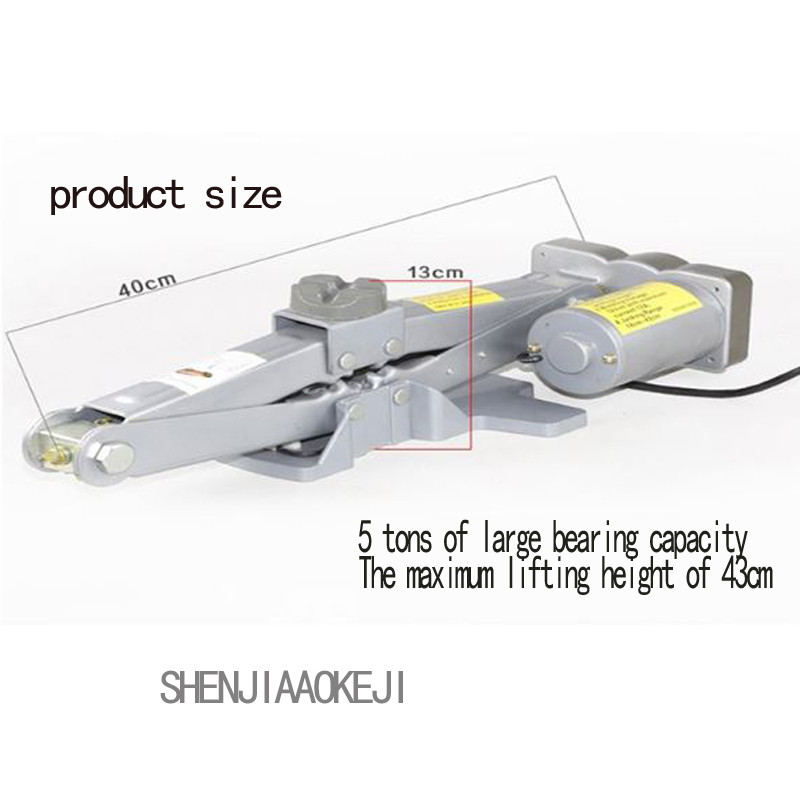

Size: Jack 40 * 13 * 7.5cm, electric wrench: 21 * 19cm
Use the car: cars, SUVs
Maximum lift: 5 tons
Power cord length: 3.5 meters

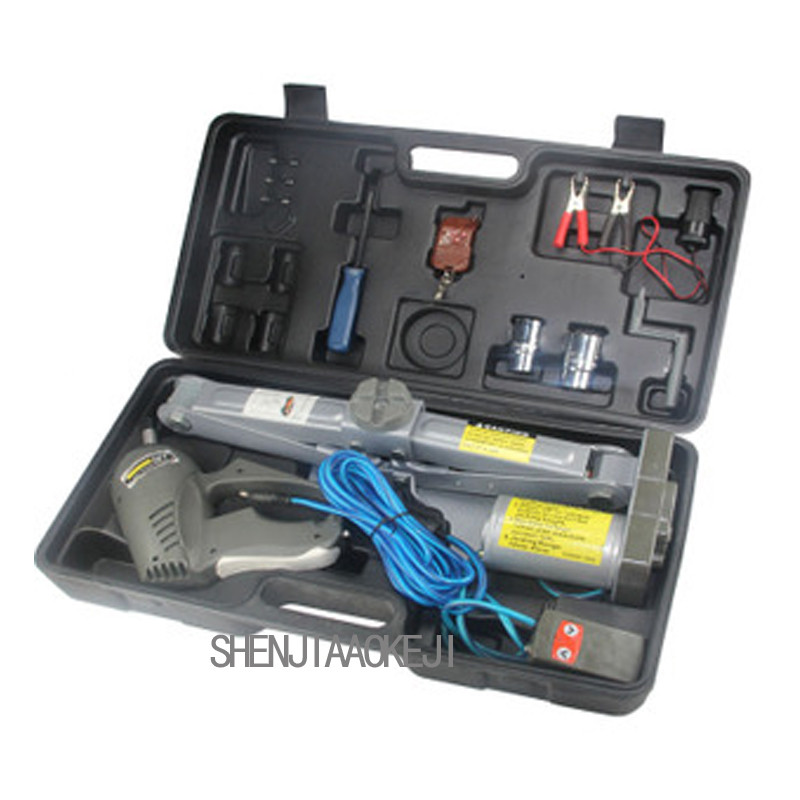

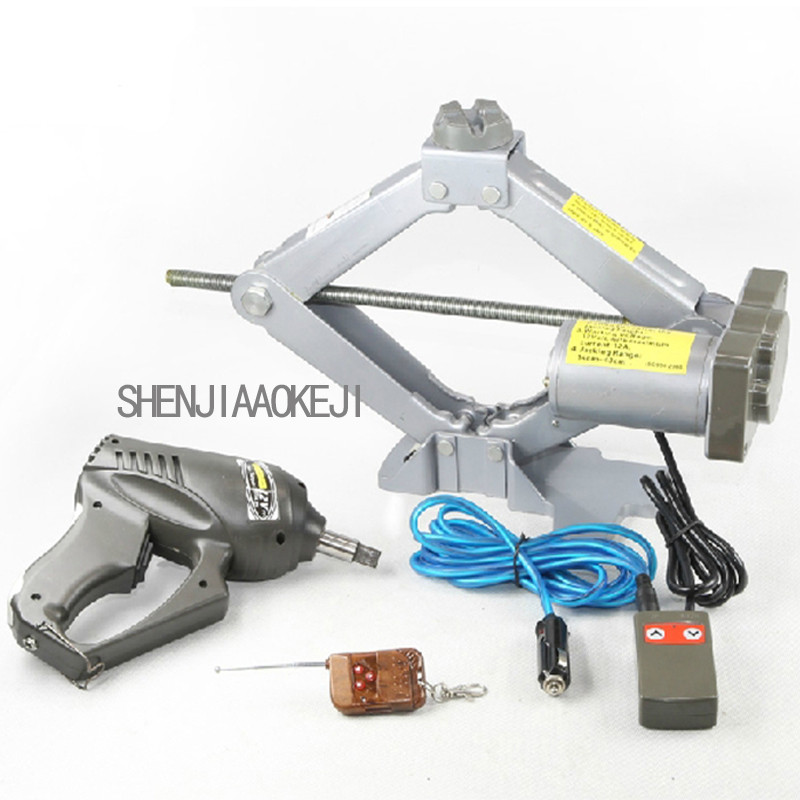

Parts list:
12V electric jack * 1
12V electric wrench * 1
Remote control * 1
3 m power cable * 1
Battery cable clamp * 1
Hand lever * 1
Double-headed sleeve * 2
Pry bar * 1
Fuse * 3
Gloves * 1
Product Features:
The product has passed the German GS certification standard, carrying weight dynamically reach 1: 1.25 times, static reached 1: 1.5 times, enough to withstand 1500kg weight
Overload protection function: When beyond the rated load weight automatically stop working to protect the product from damage and operator safety. 12V DC motor, powerful torque, strong power.
The top block of the electric jack adopts high-strength nylon 66 material, which is tough and non-slippery, effectively preventing scratches with the car surface paint.
Instructions for use:
1, electric jack use
(1) Park the car on a level surface with the engine off, and do not forget to tighten the finger actuator.

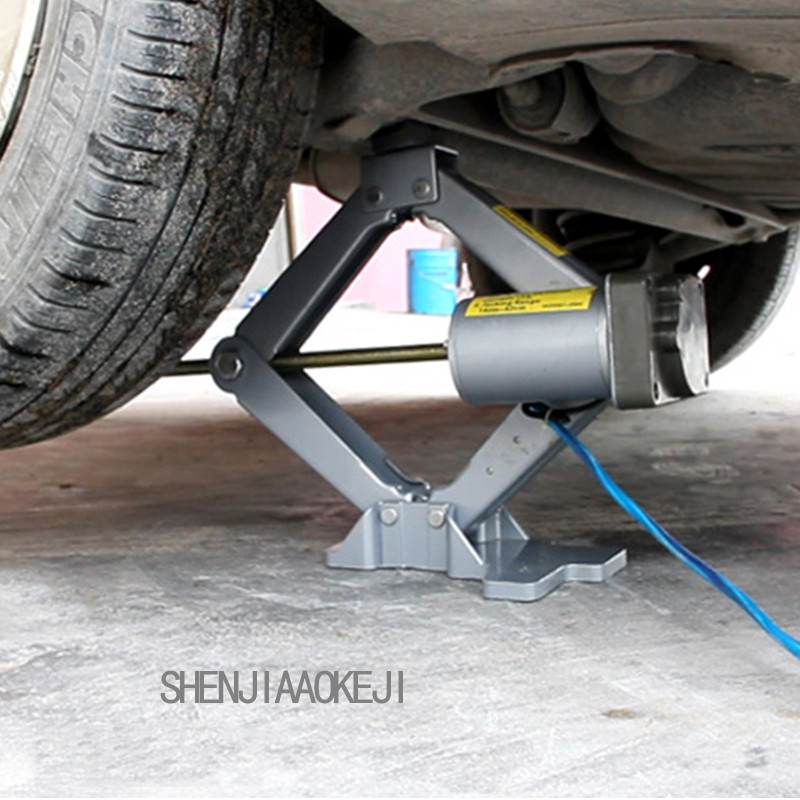

(2) Place the electric jack at the steel beam under the body of the replaced tire and align the top of the electric jack with the support point under the vehicle body, so that the electric jack can be safely and effectively lifted
(3) Connect the jack to the 12V power supply in the following two ways:
a, the use of cigarette lighter connection: the cigarette lighter plug wire into the cigarette lighter socket, the other end of the 5.5mm plug into the electric jack on the 5.5mm plug. (Note: The fuse of the cigarette lighter should not be less than 10 rated current
b, the use of vehicle battery direct connection: the cigarette lighter plug line into the cigarette lighter socket with one end of the battery clip, at the same time the other end of the battery clip red clip clip battery “+” (positive), the black clip And the battery “-” (negative) connected, and then insert the other end of the cigarette lighter plug wire 5.5mm plug into the power jack on the 5.5mm plug.
(4)Operation: After confirming that the first few steps are done, you can start the ascent operation, hold the remote controller and press the button on the remote controller as required. “” means rising, “” means decreasing, ” “means stop
(5) In the process of jacking, the jacking dynamics should be carefully observed to ensure that the jacks do not tilt
Until the wheel and the ground to leave 20mm, the wheel can be free to stop when the lift to stop, replace the tire
2, the use of electric wrench:
(1) When the changed wheel leaves the ground, connect the electric wrench to the power source (insert the electric wrench 5.5mm power plug directly into the 5.5mm plug socket at the
