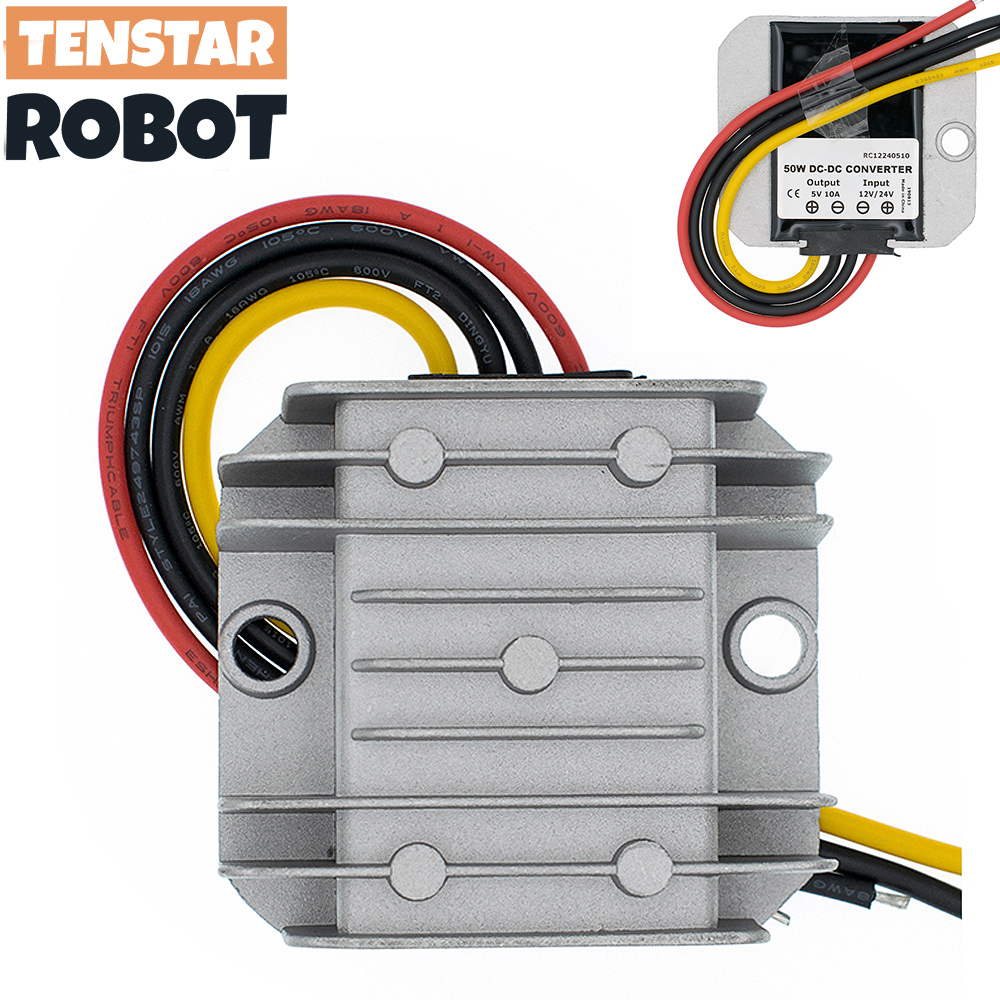

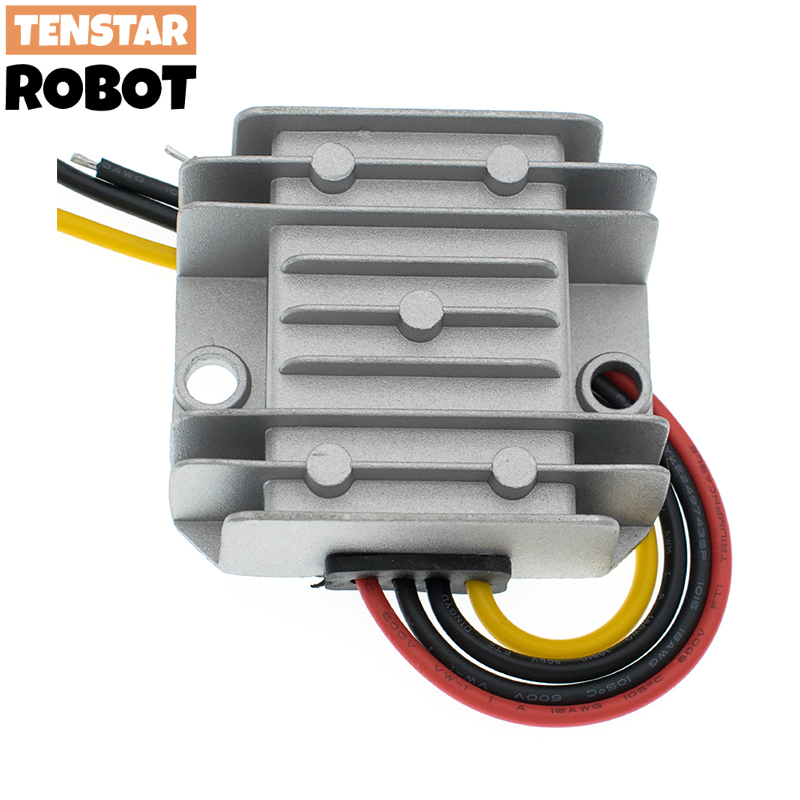

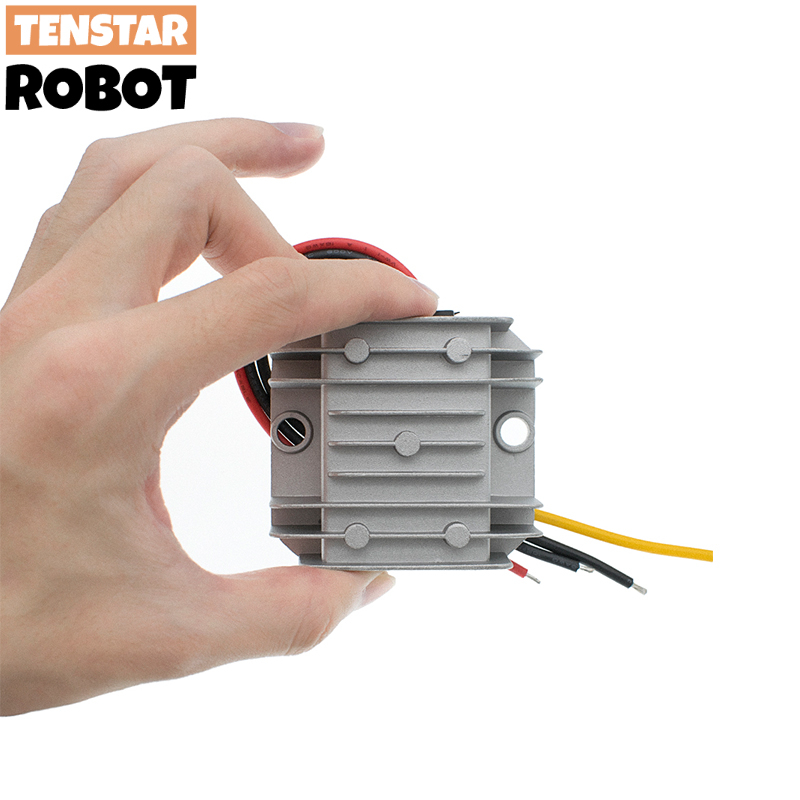

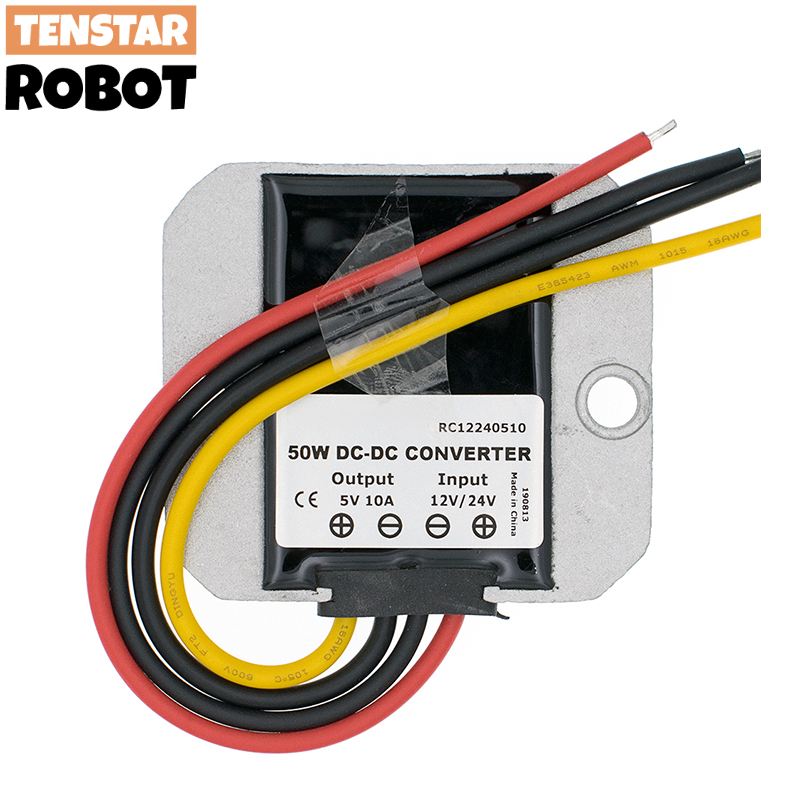

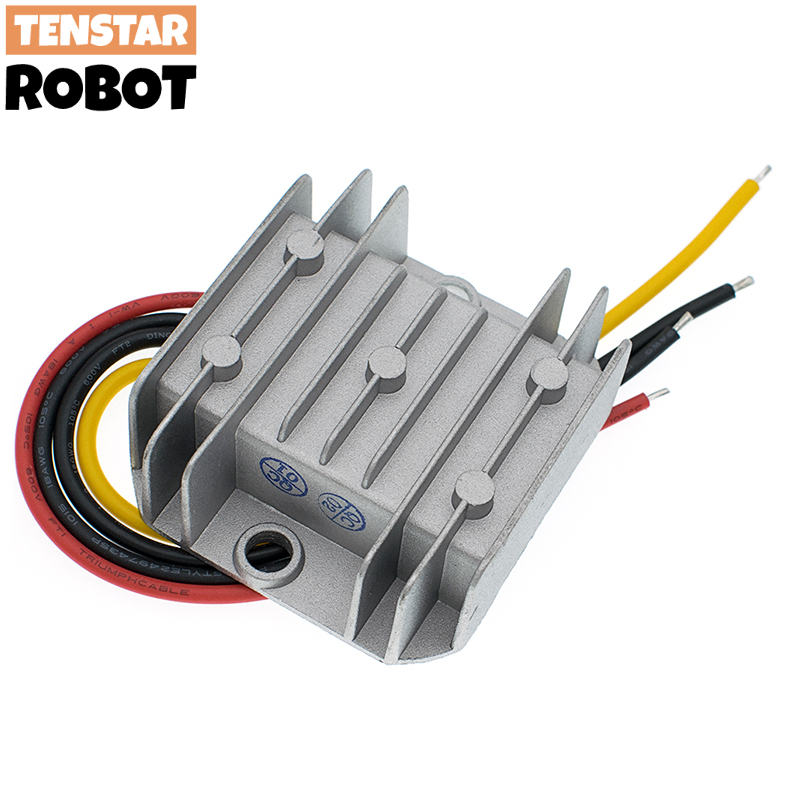

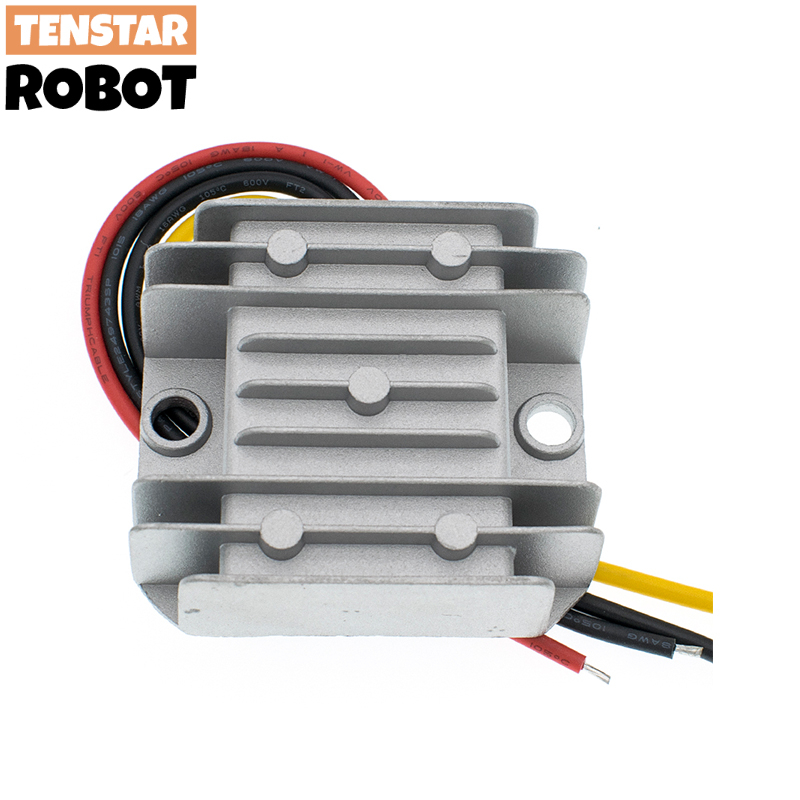

12V/24V to 5V 10A Step Down DC DC Converter Buck Regulator Waterproof Power Supply for Toy Car LED/camera

12V/24V to 5V 10A Step Down DC DC Converter Buck Regulator Waterproof Power Supply for Toy Car LED/camera

Description
Item Features
Design meeting RoHS/CE
100% full stable output current
Non-isolated between input and output
Internal capacitor: NCC & NICHICON (high reliability)
100% full load burn-in test
Waterproof level IP68
Die-cast aluminum shell, epoxy potting
Cooling by free air convection
Surface mountable
1~3 years warranty
Over-current,over-voltage, short-circuit and over-temperature protections

*Non-isolated DC-DC regulated power supply module

*100% full power, high stability output“

*100% imported components (black diamond, ruby, T, etc.)

*The product is sealed with high-quality heat-conducting silica gel, which is easy to install

*IP68, dustproof, moisture-proof and shockproof

*Wide voltage input, built-in over-temperature, overload, overvoltage and other protection functions

*Designed according to the standard specified by CE/RoHS, the service life is up to 100000 hours

Input rated voltage: DC12V/DC24V

Input voltage range: 8V-36V

Conversion efficiency: 92%

Output voltage: DC 5V

Output current: 5A/10A

Output power: 25W/50W

Voltage regulation rate: 1%

Load adjustment rate: 2%

No-load current:>=20mA

Working temperature: – 35 ° C-80C

Waterproof grade: IP68

Boundary dimension: 64 * 57 * 22mm

Net weight of finished product: 125g

Installation line length: 16.5cm

Input cable specification: 18 AWG

Output cable specification: 16 AWG
