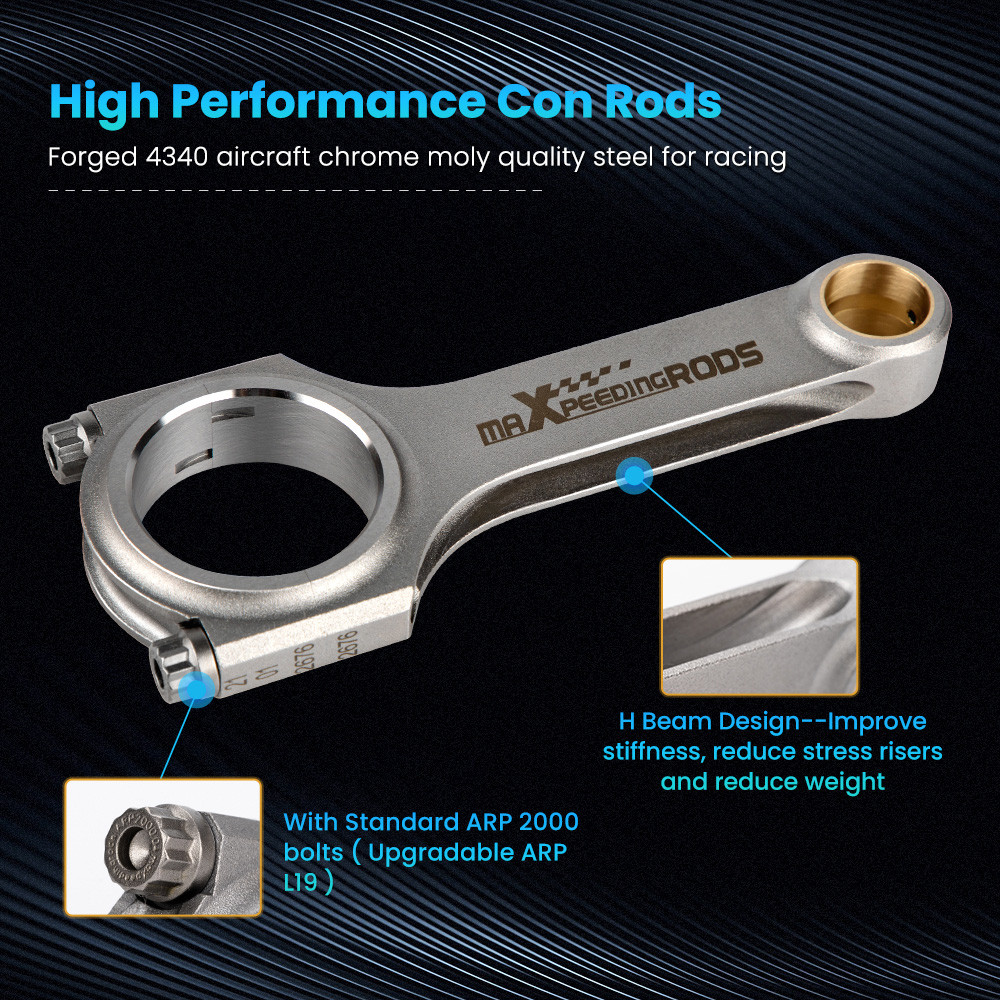

-124mm Connecting Rods Racing Forged H beam for Yamaha V-Max Conrod Pleuel Bielle Genuine 5/16″ -“

Application
for Yamaha V-Max Vmax
Feature
– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing- Designed and processed by CNC machine.- All big and small ends are finished with SUNNEN honing machine- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk- 100% X-rayed, sonic tested and magnafluxed- Multi-stage heat treated- Shot peened to relieve stress- Come with the bronzed bushing suitable for the floating piston pin
Dimensions
Center to center length: 124mmBig end diameter: 41mmSmall end diameter: XXBig end width: XXSmall end width: XX
Specification
TÜV Certification Con RodsType: Forged 4340 aircraft chrome moly quality steel for racingH-beam Conrods Quantity: 4 Pieces a setBolts: Including Genuine ARP 2000 boltsNote: Extra cost for upgrading to ARP L19 boltsBolts Size: 5/16″Tolerance: Balanced to +/- 1 gram in set Piston Bolt Hole: +-4/1000mm Power: 600hp ~ 800PS per set Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft 65 NM Top acceleration: 7000rpm warranty:2 years warranty for any manufacture defect
Note
Professional installation is highly recommended (No Instruction Included)Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs. Learn more about CUSTOM SERVICE
