1.8 Inch LCD Display Module Full Color 128×160 RGB SPI TFT LCD Display Module ST7735S 3.3V Repl C

Condition: New
Type: Voltage Regulator
Display mode -TFT
The input data SPI interface

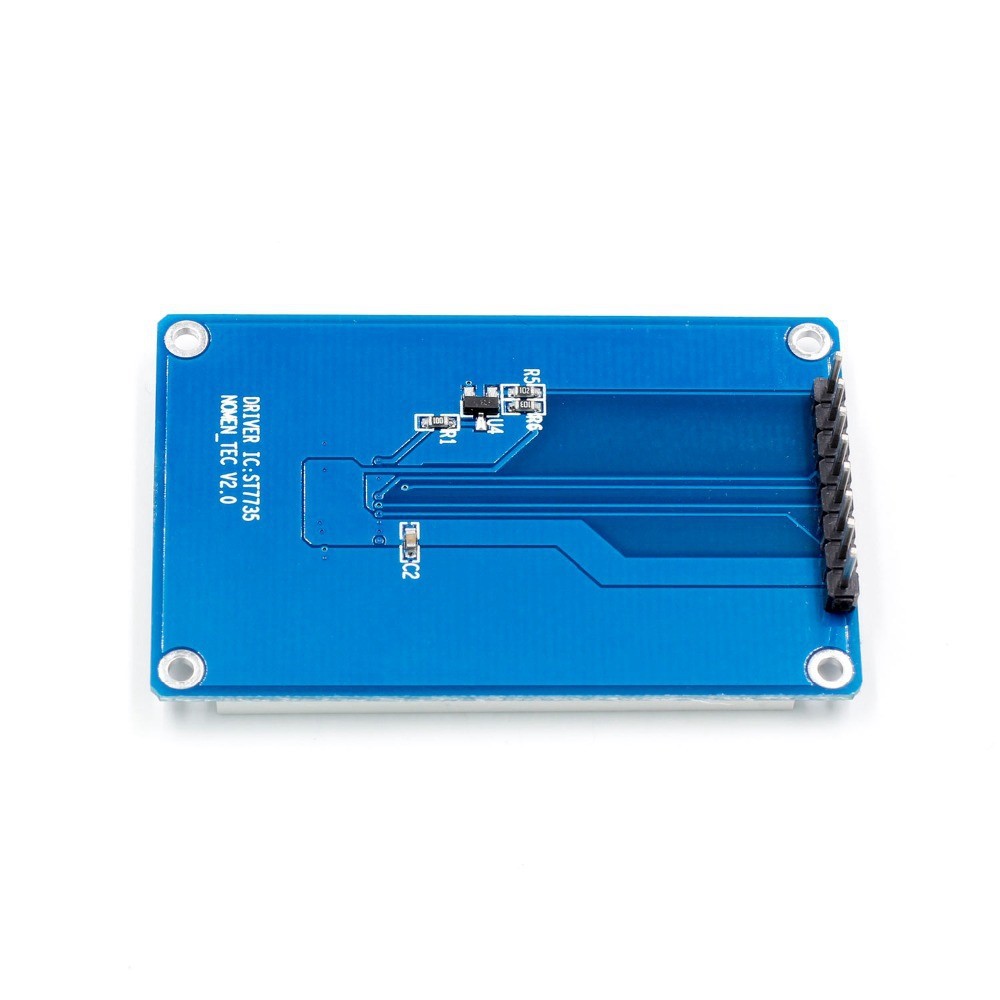

Drive IC ST7735S
Resolution 128RGB * 160 points
Active area LCD 28.03 (W) * 35.04 (H)
Pixel size 0.219 (W) * 0.219 (H)
Display direction At 12 o'clock
Operating temperature -20 70 Celsius

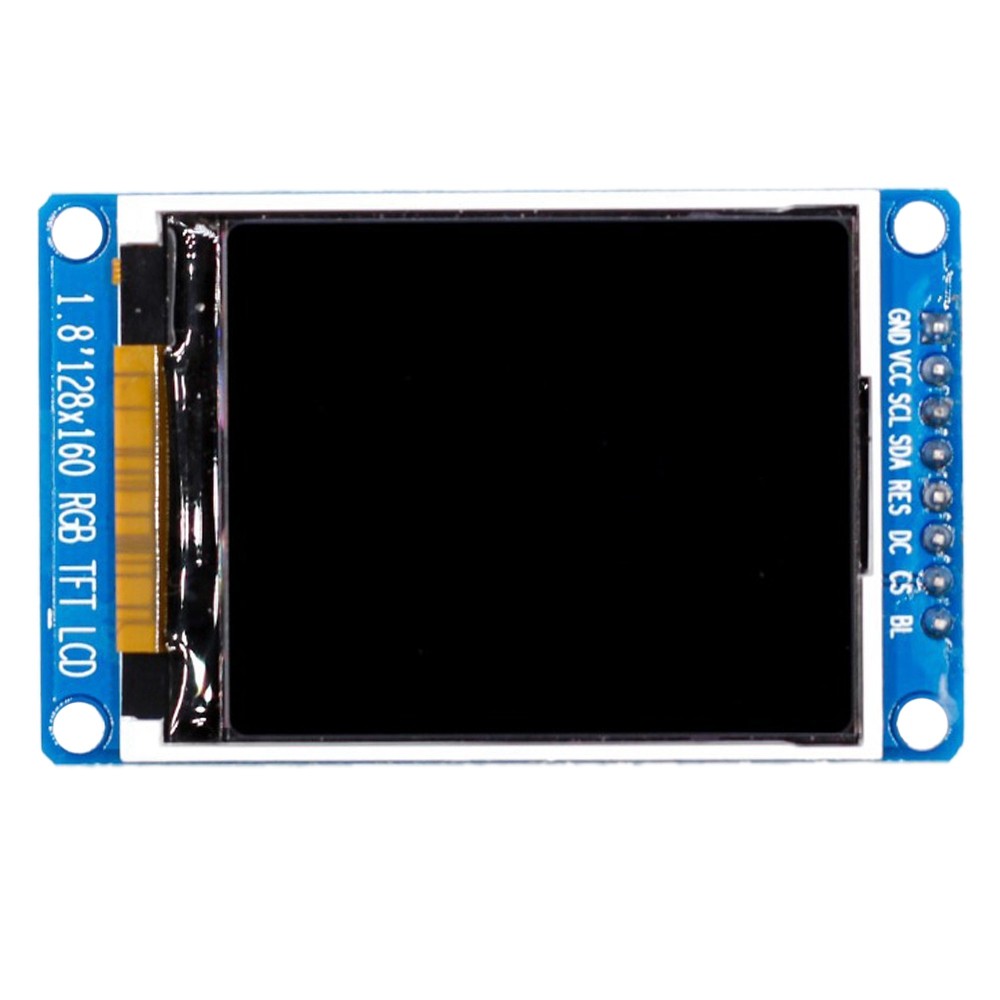

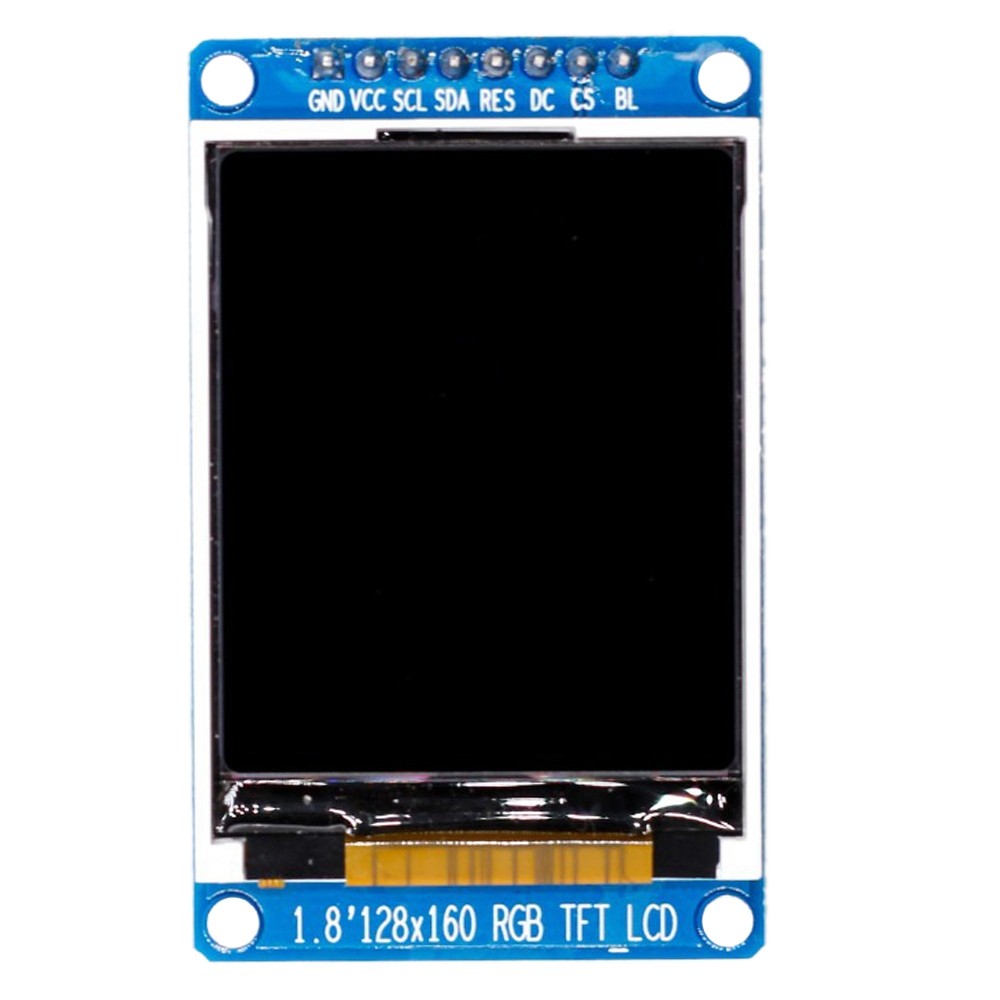

Pin descriptions:
PIN No Symbol Description
1 GND Soil
2 Power 3.3 V
3 SCL Series watch pin
4 SDA Data Entry Series
5 RES LCM Reset pin
This pin is resetting the signal input. When the pin is low, the initialization of the chip is
Executed! Keep this bolt high during normal operation.
6 DC Data / Control
7 Chip, select
8 Control pin background
colour:blue
Material:PCB

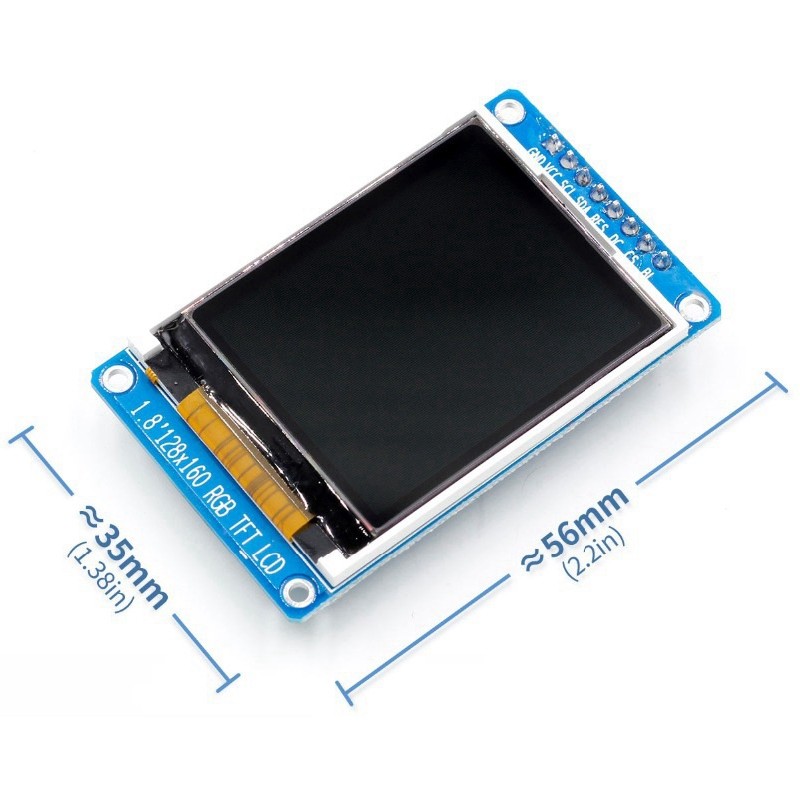

size:35*56MM
screen size:1.8 inch
Package Contents:
1*LCD Display Module
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
